Drive Shaft
WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
TIGHTENING TORQUE SPECIFICATIONS
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|

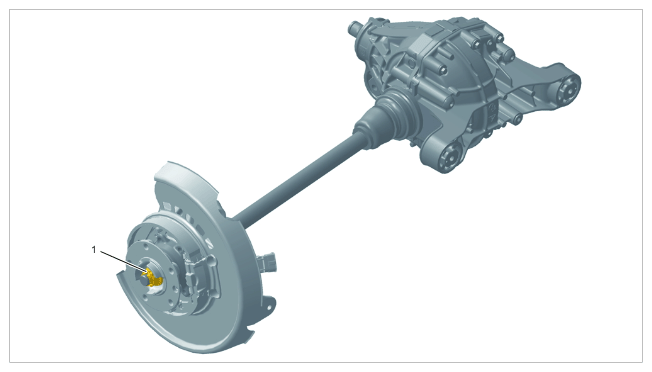

| No. 1: Threading connection securing drive shaft to wheel hub (1st step) | This is done before installing the wheel bearing housing/M24 x 1.5 thread/Always replace lock nut after removal | Tightening torque | 130 Nm (95.9 ftlb.) | |
| No. 1: Threaded connection securing drive shaft to wheel hub (2nd step) | This is done with the wheel bearing housing fitted/M24 x 1.5 thread/Always replace lock nut after removal | Tightening torque | 460 Nm (339.3 ftlb.) |
Drive shaft
