Technical Values: Differential

WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance
No. 1: Threaded connection securing differential to suspension subframe M12 x 1.5 thread (always replace screws and lock nuts after removal) Initial tightening 90 (67 ftlb.) Nm
No. 1: Threaded connection securing differential to suspension subframe M12 x 1.5 thread (always replace screws and lock nuts after removal) Final tightening + 90°
No. 2: Threaded connection securing differential to suspension subframe M12 x 1.5 thread (always replace screws and lock nuts after removal) Initial tightening 90 (67 ftlb.) Nm
No. 2: Threaded connection securing differential to suspension subframe M12 x 1.5 thread (always replace screws and lock nuts after removal) Final tightening + 90°

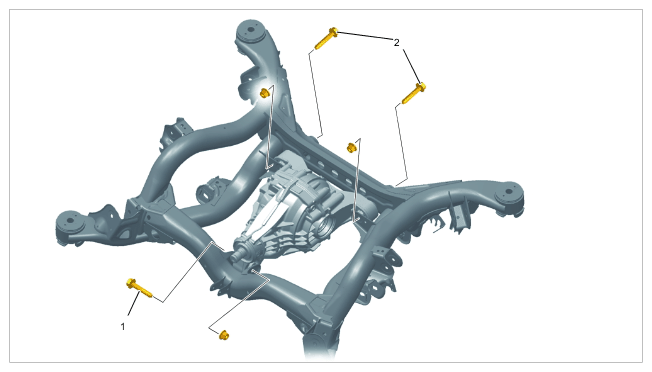

G16330838Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Differential
