Technical Values: Overview

WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

TIGHTENING TORQUE SPECIFICATIONS

Location	Des...	Type	Basic val...	Toleranc...
No. 1 Fastening compressor to body	thread M8	Tightening torque	20 Nm (14.8 ftlb.)
No. 2 Fastening compressor bracket	thread M8 x 22	Tightening torque	20 Nm (14.8 ftlb.)
No. 3 Fastening compressor	thread M6	Tightening torque	10 Nm (7.4 ftlb.)
Front accumulator fastening	thread M8	Tightening torque	20 Nm (14.8 ftlb.)
Front accumulator fastening	thread M8 x 16	Tightening torque	20 Nm (14.8 ftlb.)
Pressure line to valve block		Tightening torque	4 Nm (3 ftlb.)
Supporting mount to piston rod		Tightening torque	60 Nm (44.3 ftlb.)	+/- 5 Nm (3.7 ftlb.)
Supporting mount to piston rod (PASM damper)		Tightening torque	70 Nm (51.6 ftlb.)	+/- 5 Nm (3.7 ftlb.)
Item.1: Pressure retention valve to spring strut		Tightening torque	12 Nm (8.9 ftlb.)	+ 3 Nm (2.2 ftlb.)
Item 2: Union screw (Voss) to pressure retention valve		Tightening torque	3 Nm (2.2 ftlb.)

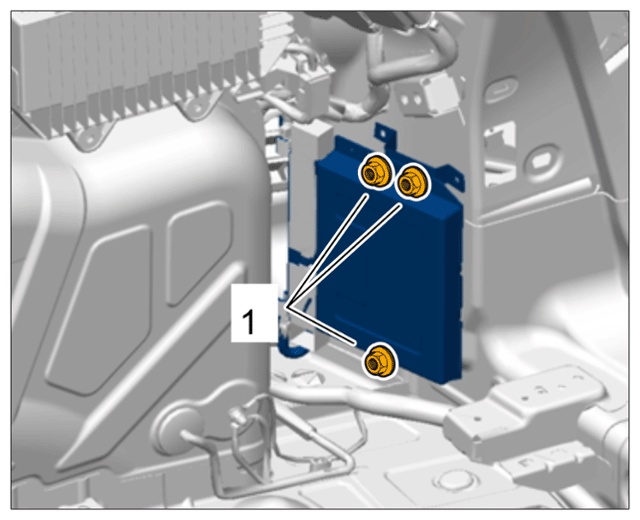

Levelling system control unit to bracket	Nuts/Item 1	Tightening torque	10 (7.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing control unit
No. 1: Line to valve block		Tightening torque	28 Nm (20.7 ftlb.)
No. 2: Line to valve block		Tightening torque	28 Nm (20.7 ftlb.)
No. 3: Line to valve block		Tightening torque	28 Nm (20.7 ftlb.)
No. 4: Line to valve block		Tightening torque	28 Nm (20.7 ftlb.)
No. 5: Valve block to wheel housing	M6 thread	Tightening torque	10 Nm (7.4 ftlb.)
Reservoir mounting	M6 thread	Tightening torque	10 Nm (7.4 ftlb.)
No. 1/2: Cap screws on flow distributor (fluid flow)	M14 x 1.5 thread; items 1 and 2	Tightening torque	28 Nm (20.7 ftlb.)	+/- 4 Nm (3 ftlb.)
No. 3: Banjo bolt on flow distributor (fluid flow)	M14 x 1.5 thread; item 3	Tightening torque	20 Nm (14.8 ftlb.)	+ 45°
No. 4: Flow distributor (fluid flow) to front-axle final drive	M6 x 16 thread	Tightening torque	10 Nm (7.4 ftlb.)
Cap screws	M14 x 1.5/M16 x 1.5 with rim	Tightening torque	28 Nm (20.7 ftlb.)	+/- 4 Nm (3 ftlb.)
Cap screws	M16/M18 with O-ring	Tightening torque	32 Nm (23.6 ftlb.)	+/- 5 Nm (3.7 ftlb.)
Banjo bolts	M14	Tightening torque	35 Nm (25.8 ftlb.)	+/- 5 Nm (3.7 ftlb.)
Banjo bolts	M16	Tightening torque	45 Nm (33.2 ftlb.)	+/- 5 Nm (3.7 ftlb.)
No. 1: Threaded connection securing anti-roll bar to anti-roll-bar mount (hose clamp)		Tightening torque	12 Nm (8.9 ftlb.)
No. 2: Threaded connection securing suspension/stabiliser (connecting link) to spring strut	M12 x 1.5 thread	Tightening torque	110 Nm (81.1 ftlb.)
No. 3: Threaded connection securing anti-roll bar to suspension/stabiliser (connecting link)	M12 x 1.5 thread	Initial tightening	90 Nm (66.4 ftlb.)
No. 3: Threaded connection securing anti-roll bar to suspension/stabiliser (connecting link)	M12 x 1.5 thread	Final tightening	+ 90°
No. 4: Cap screws	M14/M16 thread	Tightening torque	28 Nm (20.7 ftlb.)
No. 5: Cap screws	M14 x 1.5/M16 x 1.5 with rim	Tightening torque	28 Nm (20.7 ftlb.)	+/- 4 Nm (3 ftlb.)
No. 6: Threaded connection securing anti-roll bar to chassis subframe	M10 x 62 thread	Tightening torque	60 Nm (44.3 ftlb.)
No. 1: Threaded connection securing anti-roll bar to rear-axle chassis subframe	M10 x 25 thread	Tightening torque	50 Nm (36.9 ftlb.)
No. 2/3: Threaded connection securing suspension/stabiliser to wheel carrier/shock absorber strut	M12 x 1.5 thread (always replace screws and lock nuts after removal)	Initial tightening	90 Nm (66.4 ftlb.)
No. 2/3: Threaded connection securing suspension/stabiliser to wheel carrier/shock absorber strut	M12 x 1.5 thread (always replace screws and lock nuts after removal)	Final tightening	+ 90°
No. 4: Rear-axle valve block to chassis subframe	M8 x 25 thread	Tightening torque	23 Nm (17 ftlb.)
Cover on rear-axle valve block	M6 thread	Tightening torque	10 Nm (7.4 ftlb.)
No. 5: Cap screws on valve block	M14/M16 thread	Tightening torque	28 Nm (20.7 ftlb.)
No. 6: Cap screws on anti-roll bar	M14/M16 thread	Tightening torque	28 Nm (20.7 ftlb.)
No. 7: Threaded connection securing anti-roll bar to suspension/stabiliser	M12 x 1.5 thread (always replace screws and lock nuts after removal)	Tightening torque	100 Nm (73.8 ftlb.)

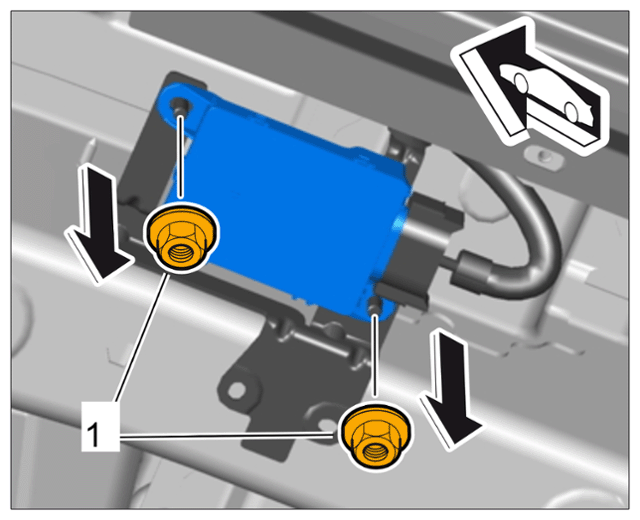

TPM control unit	Nuts/Item 1	Tightening torque	2 (1.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Loosening TPM control unit
