Levelling System

WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

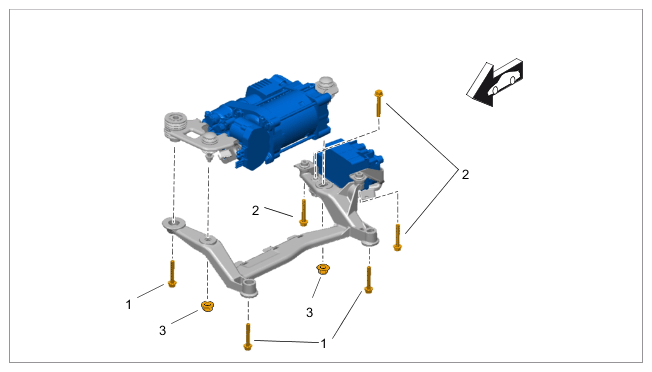

> Tightening torque 20 Nm (14.8 ftlb.) > Tightening torque 20 Nm (14.8 ftlb.) > Tightening torque 10 Nm (7.4 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Compressor with valve block

TIGHTENING TORQUE SPECIFICATIONS

Location	Description	Type	Basic value	Tolerance
Front accumulator fastening	thread M8	Tightening torque	20 Nm (14.8 ftlb.)
Front accumulator fastening	thread M8 x 16	Tightening torque	20 Nm (14.8 ftlb.)
Pressure line to valve block		Tightening torque	4 Nm (3 ftlb.)
Supporting mount to piston rod		Tightening torque	60 Nm (44.3 ftlb.)	+/- 5 Nm (3.7 ftlb.)
Supporting mount to piston rod (PASM damper)		Tightening torque	70 Nm (51.6 ftlb.)	+/- 5 Nm (3.7 ftlb.)

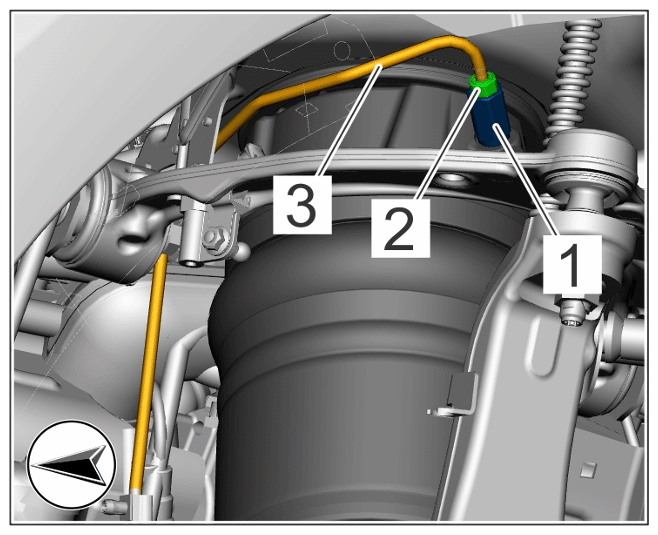

Pressure retention valve -1- and Voss screw -2- with air line -3- : > Tightening torque 12 Nm (8.9 ftlb.) + 3 Nm (2.2 ftlb.) > Tightening torque 3 Nm (2.2 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure retention valve with Voss screw and air line
