Trailing Arm
WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
TIGHTENING TORQUE SPECIFICATIONS
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Threaded connection securing trailing arm to spring strut | Item 1: M14 x 1.5 thread (always use new screws and lock nuts following removal) | Initial tightening | 150 (111 ftlb.) Nm | |
| Threaded connection securing trailing arm to spring strut | Item 1: M14 x 1.5 thread (always use new screws and lock nuts following removal) | Final tightening | + 90° | |
| Threaded connection securing upper trailing arm to body | Item 2: M10 x 70 thread (always use new screws and lock nuts following removal) | Initial tightening | 50 (37 ftlb.) Nm | |
| Threaded connection securing upper trailing arm to body | Item 2: M10 x 70 thread (always use new screws and lock nuts following removal) | Final tightening | + 180° | |
| Threaded connection securing HBA system on vehicles with steel springs | Item 3: M5 x 10 thread | Tightening torque | 9 (6.5 ftlb.) Nm | |
| Threaded connection securing level regulator on vehicles with air springs | Item 3: M5 x 10 thread | Tightening torque | 9 (6.5 ftlb.) Nm | |
| Threaded connection securing lower trailing arm to chassis subframe | Item 4: M14 x 1.5 thread | Tightening torque | 170 (126 ftlb.) Nm | |
| Threaded connection securing upper trailing arm to pivot bearing | Item 6: M12 x 1.5 thread (always use new screws and lock nuts following removal) | Tightening torque | 85 (63 ftlb.) Nm | |
| Threaded connection securing lower trailing arm to pivot bearing | Item 7: M14 x 1.5 thread (always use new screws and lock nuts following removal) | Tightening torque | 130 (96 ftlb.) Nm |

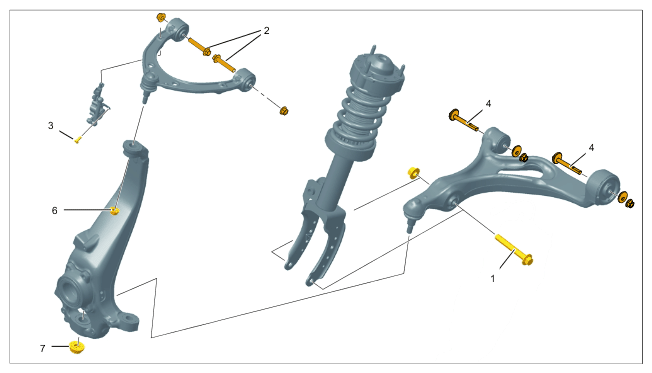

Steel spring strut 2

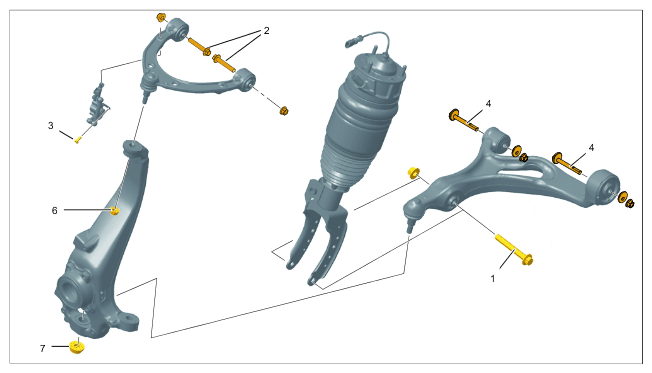

Air-spring strut 1
