TIGHTENING TORQUE SPECIFICATIONS
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|
| No. 1: Threaded connection securing suspension subframe to body (front) | M14 x 1.5 x 150 thread (always use new screws and lock nuts following removal) | Initial tightening | 120 (89 ftlb.) Nm | ||
| No. 1: Threaded connection securing suspension subframe to body (front) | M14 x 1.5 x 150 thread (always use new screws and lock nuts following removal) | Final tightening | + 180° | ||
| No. 2: Threaded connection securing suspension subframe to body (rear) | M14 x 1.5 x 120 thread (always use new screws and lock nuts following removal) | Initial tightening | 120 (89 ftlb.) Nm | ||
| No. 2: Threaded connection securing suspension subframe to body (rear) | M14 x 1.5 x 120 thread (always use new screws and lock nuts following removal) | Final tightening | + 180° | ||
| Threaded connection securing trailing arm to spring strut | Item 1: M14 x 1.5 thread (always use new screws and lock nuts following removal) | Initial tightening | 150 (111 ftlb.) Nm | ||
| Threaded connection securing trailing arm to spring strut | Item 1: M14 x 1.5 thread (always use new screws and lock nuts following removal) | Final tightening | + 90° | ||
| Threaded connection securing upper trailing arm to body | Item 2: M10 x 70 thread (always use new screws and lock nuts following removal) | Initial tightening | 50 (37 ftlb.) Nm | ||
| Threaded connection securing upper trailing arm to body | Item 2: M10 x 70 thread (always use new screws and lock nuts following removal) | Final tightening | + 180° | ||
| Threaded connection securing HBA system on vehicles with steel springs | Item 3: M5 x 10 thread | Tightening torque | 9 (6.5 ftlb.) Nm | ||
| Threaded connection securing level regulator on vehicles with air springs | Item 3: M5 x 10 thread | Tightening torque | 9 (6.5 ftlb.) Nm | ||
| Threaded connection securing lower trailing arm to chassis subframe | Item 4: M14 x 1.5 thread | Tightening torque | 170 (126 ftlb.) Nm | ||
| Threaded connection securing upper trailing arm to pivot bearing | Item 6: M12 x 1.5 thread (always use new screws and lock nuts following removal) | Tightening torque | 85 (63 ftlb.) Nm | ||
| Threaded connection securing lower trailing arm to pivot bearing | Item 7: M14 x 1.5 thread (always use new screws and lock nuts following removal) | Tightening torque | 130 (96 ftlb.) Nm | ||
| No. 1: Threaded connection securing speed sensor to wheel carrier | M6 x 16 thread | Tightening torque | 8 (6 ftlb.) Nm | ||
| No. 2: Threaded connection securing brake cover plate to wheel carrier | M6 x 12 thread | Tightening torque | 8 (6 ftlb.) Nm | ||
| No. 3: Threaded connection securing brake calliper to wheel carrier, 18" | M14 x 1.5 x 115 thread (always use new screws and lock nuts after removal) | Tightening torque | 140 (104 ftlb.) Nm | ||
| No. 3: Threaded connection securing brake calliper to wheel carrier, 19" and PCCB | M14 x 1.5 x 135 thread (always use new screws and lock nuts following removal) | Tightening torque | 140 (104 ftlb.) Nm | ||
| No. 4: Threaded connection securing brake hose bracket to wheel carrier | M6 x 12 thread | Tightening torque | 9 (6.5 ftlb.) Nm | ||
| No. 5: Threaded connection securing cable holder to wheel carrier | M8 x 14 thread | Tightening torque | 20 (15 ftlb.) Nm | ||
| No. 6: Threaded connection securing brake disc to wheel hub | M12 x 1.5 thread | Tightening torque | 15 (11 ftlb.) Nm | ||
| Wheel bearing to wheel carrier | M12 x 1.25 thread (always use new screws and lock nuts following removal) | Initial tightening | 80 (59 ftlb.) Nm | ||
| Wheel bearing to wheel carrier | M12 x 1.25 thread (always use new screws and lock nuts following removal) | Final tightening | + 120° | ||
| Item 1 Threaded connection securing spring strut to trailing arm | M14 x 1.5 thread | initial tightening | 150 Nm (111 ftlb.) | ||
| Item 1 Threaded connection securing spring strut to trailing arm | M14 x 1.5 thread | Final tightening | + 90° | ||
| Item 2 Threaded connection securing spring-strut mount to piston rod | M12 x 1.5 thread | Tightening torque | 60 Nm (44 ftlb.) | +/- 5 Nm (3.5 ftlb.) | |
| Item 2 Threaded connection securing spring-strut mount to piston rod (PASM damper) | M12 x 1.5 thread | Tightening torque | 70 Nm (52 ftlb.) | +/- 5 Nm (3.5 ftlb.) | |
| Item 3 Threaded connection securing spring strut to body | M10 thread | Tightening torque | 60 Nm (44 ftlb.) | ||
| threaded connection securing air guide to spring strut | Tightening torque | 10 Nm (7.5 ftlb.) | |||
| air spring cover | Counters unk screw, M6 x 16 | Tightening torque | 10 Nm (7.5 ftlb.) | ||
| No. 1: Threaded connection securing anti-roll bar to suspension subframe | M10 x 62 thread | Tightening torque | 60 (44 ftlb.) Nm | ||
| No. 2: Threaded connection securing anti-roll bar to suspension/stabiliser (connecting link) | M12 x 1.5 thread | Tightening torque | 110 (81.5 ftlb.) Nm | ||
| Threaded connection securing anti-roll bar to anti-roll-bar mount (hose clamp) | Tightening torque | 12 (9 ftlb.) Nm | |||
| No. 3: Threaded connection securing suspension/stabiliser (connecting link) to spring strut | M12 x 1.5 thread | Tightening torque | 110 (81.5 ftlb.) Nm | ||
| Nuts for wiring harness holder PDCC | Item 1 | Tightening torque | 10 Nm | ||
|

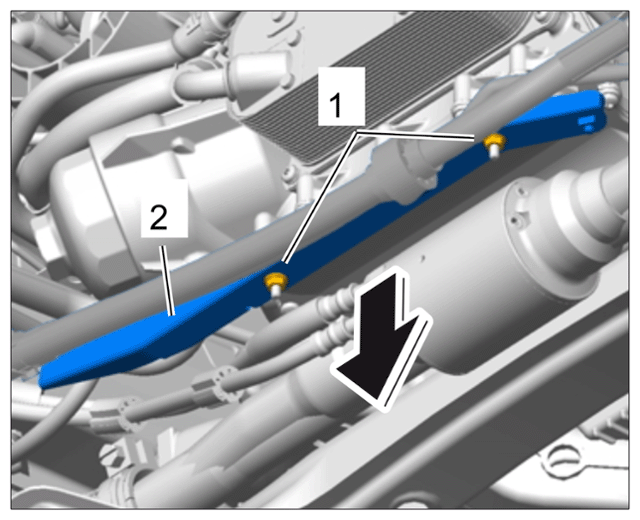

Wiring harness holder PDCC |
|||||
| Threaded connection securing drive shaft to front-axle transmission flange | Item 1: M10 thread | Initial tightening | 50 (37 ftlb.) Nm | ||
| Threaded connection securing drive shaft to front-axle transmission flange | Item 1: M10 thread | Final tightening | + 90° | ||
| Threaded connection securing drive shaft to front-axle transmission flange | Item 1: M8 thread | Initial tightening | 20 (15 ftlb.) Nm | ||
| Threaded connection securing drive shaft to front-axle transmission flange | Item 1: M8 thread | Final tightening | + 90° | ||
| Threaded connection for securing drive shaft to wheel hub | Item.2: M24 x 1.5 thread (always replace screws and lock nuts after removal); grease friction surface of the nut with aluminium paste (do not grease the thread!) | Tightening torque | 460 (340 ftlb.) Nm | ||
| No. 1: Threaded connection securing differential to suspension subframe | M12 x 1.5 x 90 thread (always use new screws and lock nuts following removal) | Initial tightening | 90 (67 ftlb.) Nm | ||
| No. 1: Threaded connection securing differential to suspension subframe | M12 x 1.5 x 90 thread (always use new screws and lock nuts following removal) | Final tightening | + 90° | ||
| Threaded connection securing wheel to wheel hub | M14 x 1.5 x 49 thread (do not grease screw) | Tightening torque | 180 (133 ftlb.) Nm | ||
| Threaded connection securing TPM valve to wheel | M5 thread (always use new screws and lock nuts following removal); counter at the valve body, make sure it does not turn! | Tightening torque | 4 (3 ftlb.) Nm | +/- 0.5 (0.3 ftlb.) Nm | |
| Threaded connection securing wheel electronics to TPM valve | (Always use new screws and lock nuts following removal) | Tightening torque | 4 (3 ftlb.) Nm | +/- 0.5 (0.3 ftlb.) Nm | |
