Brake Master Cylinder/Brake Booster
WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
TIGHTENING TORQUE SPECIFICATIONS
| Location | Description | Type | Basic value | Tolerance |
|---|---|---|---|---|
| Brake master cylinder on brake booster | Item 1: M8 thread | Tightening torque | 23 Nm (17 ftlb.) | +/- 2 Nm (1.5 ftlb.) |
|

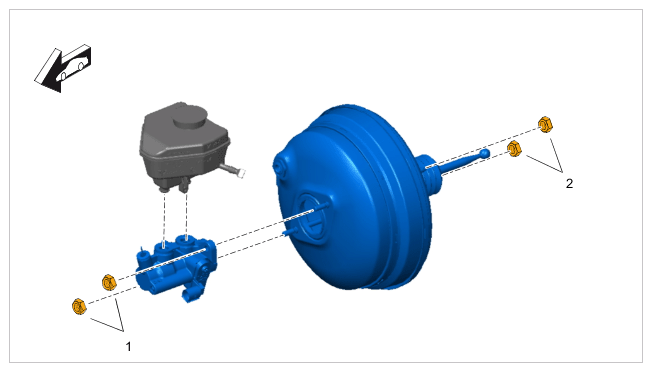

Brake booster/brake master cylinder with reservoir |
||||
| Brake booster to pedals | Item 2: M8 thread | Tightening torque | 26 Nm (19 ftlb.) | +/- 3 Nm (2 ftlb.) |
|
Brake booster/brake master cylinder with reservoir |
||||
| Brake pressure line to brake master cylinder | Tightening torque | 18 Nm (13 ftlb.) | +/- 2 Nm (1.5 ftlb.) | |
| Brake pressure pipe to brake hose, distributor, brake calliper | M10/M12 thread | Tightening torque | 14 Nm (10.5 ftlb.) | +/- 1 Nm (0.5 ftlb.) |
> Initial tightening 10 Nm (7.5 ftlb.) > Final tightening + 30° + 4°
