Installing Control Unit For Distance Measuring Sensor

WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Position holder with the distance measuring sensor control unit.

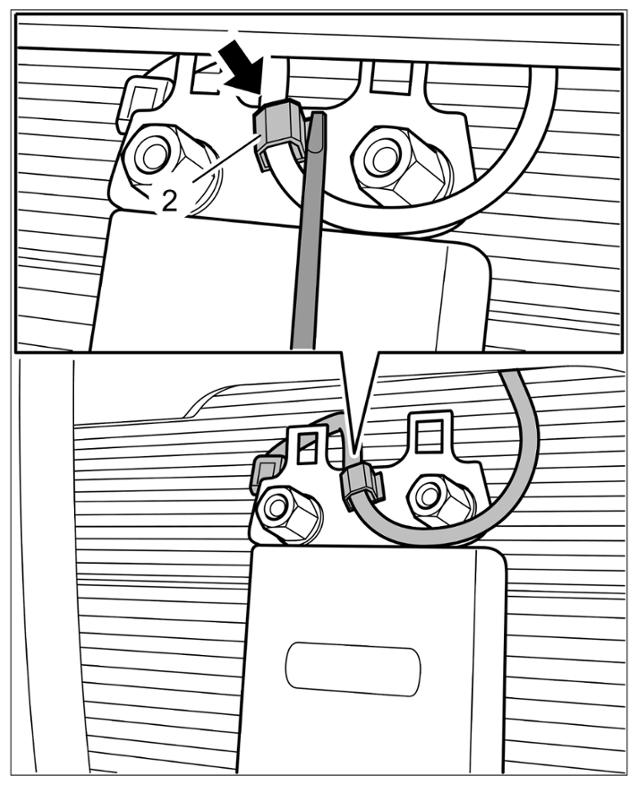

Place electric line into cable clip -2- and clip together.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing electric line with cable clip (shown on the Panamera)

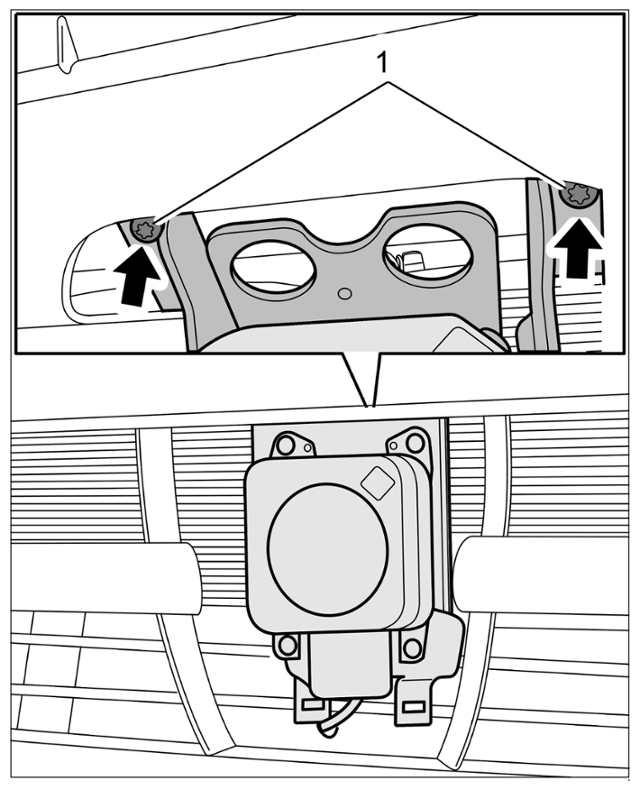

Position holder on the bumper and secure using the two fastening screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing holder
Press in electric connector until it clicks into place.
Information

Before and after fitting the trim cover for the distance measuring sensor control unit, check the following points:
- The holder for the distance measuring sensor control unit must not show any signs of deformation, which may have been caused, for example, by removing or installing the trim c over for the distance measuring sensor control unit. If the holder for the distance measuring sensor control unit is deformed carefully push it back into shape.
- If the trim cover is damaged or cracked, replace the trim cover.
- After fitting the trim cover, check that it is seated correctly and securely.
Fit cover for distance measuring sensor.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting ACC sensor cover (shown on the Panamera)
