Removing The Starter
WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

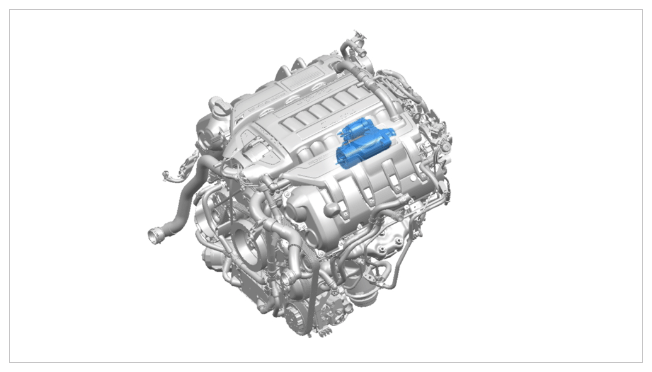

Installation position of starter
NOTE:
Voltage peaks
- Risk of damage to electrical load or to the control unit
- Undo electric change-over valve.
- 1.1
Pull electric change-over valve -1-
off the holder -Arrow-
and set it aside with the lines connected.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

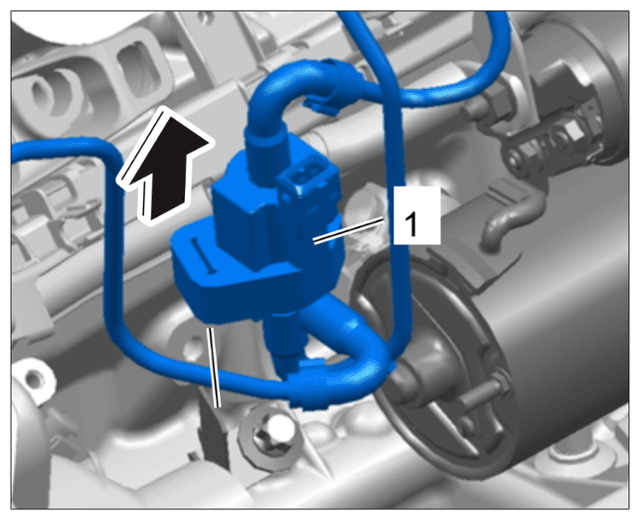

Removing electric change-over valve
- Unscrew fastening nuts -2 and 3-
on the starter and remove -Arrow-
lines. -4 and 5-
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

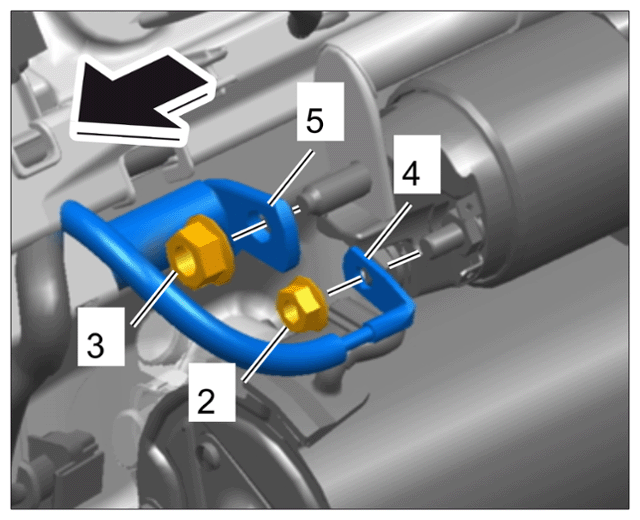

Removing fastening nuts on starter
- Unscrew and remove both fastening screws. -6-
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

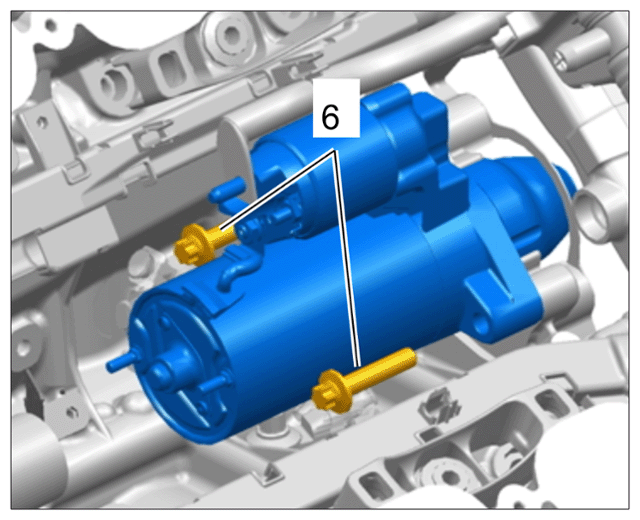

Fastening screws for starter
- Remove the starter.
- 4.1
Pull starter -7-
towards the front in direction of travel -Arrow A-
and lift it up. -Arrow B-
- 4.2
Remove -arrow C-
line. -8-
- 4.3
Lift starter -7-
up and remove it. -Arrow D-
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

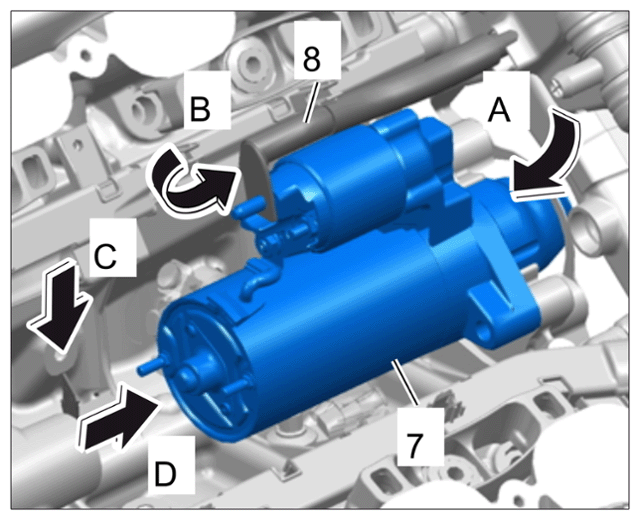

Removing the starter
