Install starter.

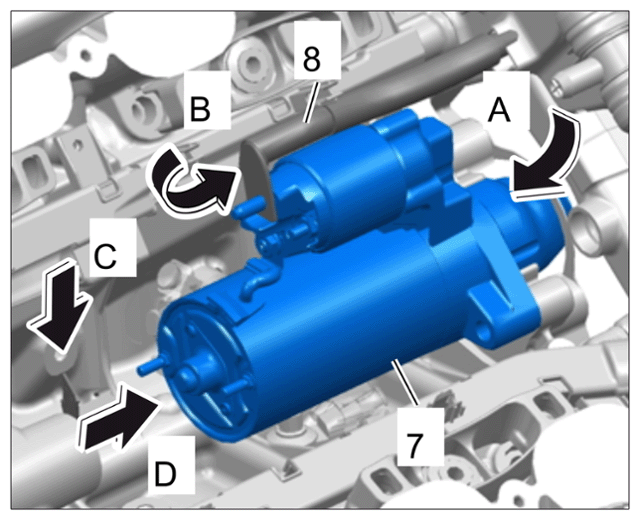

1.1 Insert the starter -7- from above. -Arrow A-
1.2 Fit line. -8-Arrow B-

1.3 Lower the starter -7-arrow C- and push it into the engine housing. -Arrow D-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing the starter

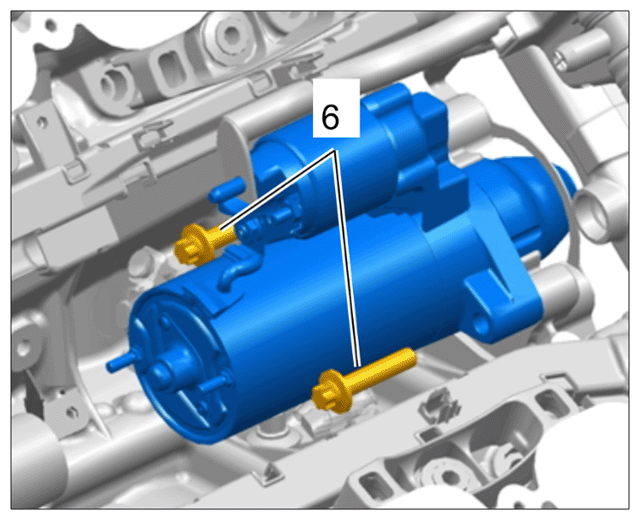

Secure the starter with the fastening screws -6- and tighten to > Tightening torque 45 Nm (33.2 ftlb.) + 8 Nm (5.9 fflb) Tighten.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for starter

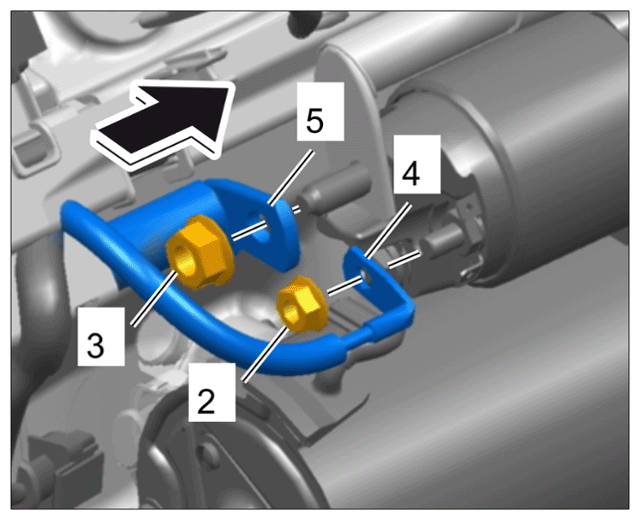

Position lines -4 and 5- on the starter -Arrow- and secure with the fastening nuts. -2 and 3-
-2- : > Tightening torque 6.5 Nm .

-3- > Tightening torque 18 Nm .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing electric lines to starter

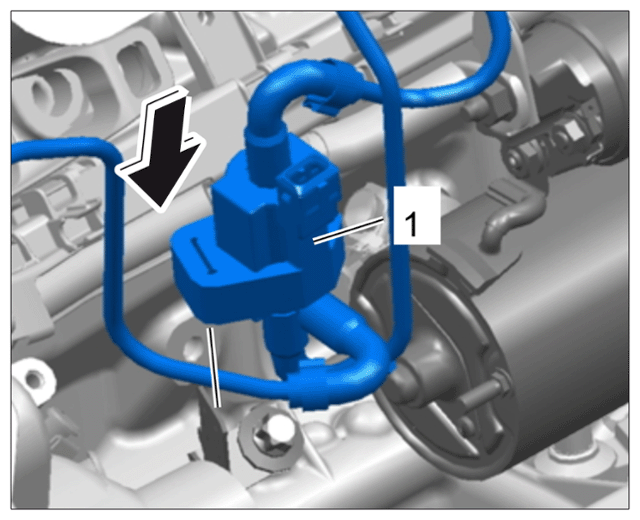

Push electric change-over valve -1- onto the holder. -Arrow-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing electric change-over valve
