WM, 2706IN External Power Connection, Jump-Lead Starting: Information
WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
- If the battery is flat, jump leads can be used together with the battery of another vehicle to start the car or to supply external power to the vehicle.
Both batteries must be 12 V batteries.
The capacity (Ah) of the battery supplying the power must not be significantly lower than that of the flat battery.
The flat battery must be properly connected to the vehicle electrical system.
WARNING:
Live jump leads
- Risk of electric shock
- Risk of short circuit
→ Route the jump leads so that they do not become entangled in moving parts in the engine compartment.
→ There must be no contact between the vehicles.

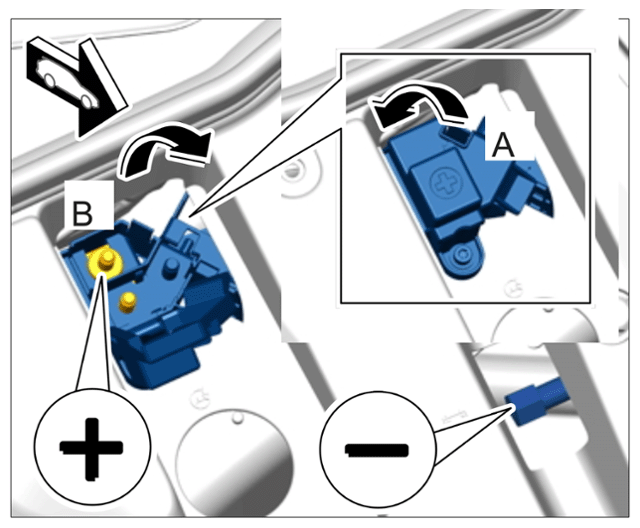

- Remove cover for jump-lead starting terminal.
- Open protective cover on the positive terminal for jump-lead starting -+-
.
Protective cover on positive terminal
- Connect the positive cable to the positive terminal for jump-lead starting -+- , then to the positive terminal of the donor battery.
- Connect the negative cable to the negative terminal of the donor battery first, then to the ground point for jump-lead starting - .
- Have the engine of the vehicle supplying the power run at a higher speed.
- Start engine. Do not spend longer than 15 seconds trying to start the vehicle with the jump leads - after 15 seconds have elapsed, wait for at least one minute.
- Disconnect the two jump leads in reverse sequence when the engine is running.
- Close protective cover.
- Position the cover.
