Replacing AGM Battery
WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
The AGM (absorbent glass M at) battery is a maintenance-free , sealed Tighten screw-type clamps securing intake pipe. battery.

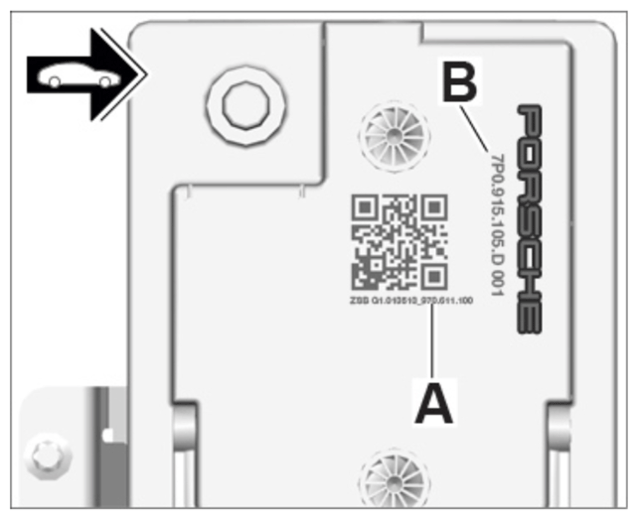

Serial number and part number on the battery
- This battery must not be opened. If the battery is opened, it must be replaced.
- There is a serial number -A- and a part number -B- on the top right-hand side of the battery.
- After rep lacing the battery, the serial number and part number as well as the battery size and manufacturer must be entered using the PIWIS Tester under: Gateway/Maintenance, repairs/Battery replacement.
- The battery size and battery manufacturer must also be entered when replacing the battery.
- Remove left front seat.
- Remove and install battery.
- Install left front seat
Information
The AGM (absorbent G lass M at) battery is a maintenance-free , sealed Tighten screw-type clamps securing tp intake pipe. battery.
Serial number and part number on me Battery
- This battery muse not be opened. If the battery is opened, it must be replaced.
- There is a serial number -A- aid a part number -B- on the top right-hand side of the battery.
- After replacing the battery, the serial number and part number as well as the battery size and manufacturer must be entered using the PIWIS Tester under: Gateway/Maintenance, repairs/Battery replacement.
- The battery size and battery manufacturer must also be entered when replacing the battery.
- Carry out work instruction after disconnecting the battery.
