Removing Coolant Temperature Sensor: Notes

WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Expose access to temperature sensor -3-  .
    1. 1.1 Unclip oxygen sensor cable. Loosen the holder.

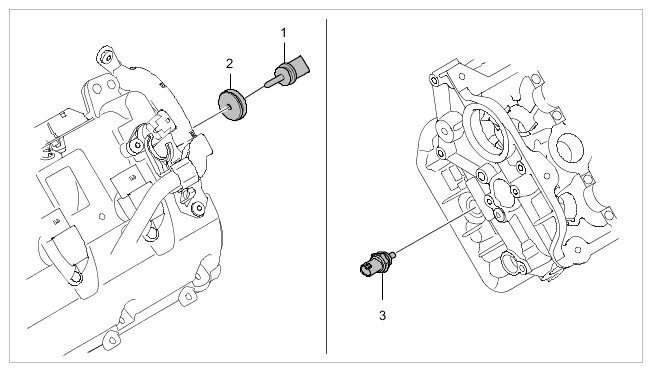

    G16308834Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Temperature sensor

    1 Temperature sensor for engine compartment (installation position of cylinder 8)
    2 Sleeve
    3 Temperature sensor (installation position of cylinder 4)
  2. Pull off cable plug.
  3. Remove coolant temperature sensor from the cylinder head.
