Installing Coolant Temperature Sensor
WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Information
The tightening specifications for the basic engine are stored centrally.
/
or
> 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES AND ASSEMBLY OVERVIEWS .
Tightening torques and assembly instructions for other assemblies (e.g. chassis, electrics, transmission or body) or for peripheral engine equipment can be found in the corresponding documents.
- Fit coolant temperature sensor -3-
in the cylinder head. Tighten coolant temperature sensor.

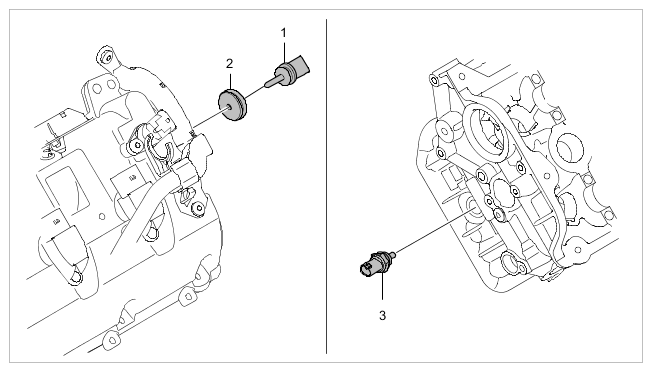

Temperature sensor
1 Temperature sensor for engine compartment (installation position of cylinder 8) 2 Sleeve 3 Temperature sensor (installation position of cylinder 4) - Peripheral equipment is installed in reverse order to removal.
