Component Information

WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

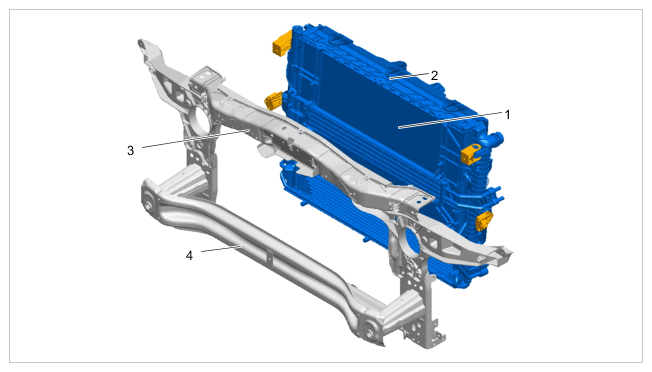

Fig 1: Radiator Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component overview for radiator

1	Radiator
2	Securing frame
3	Lock carrier
4	Bumper
