Component Overview
WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

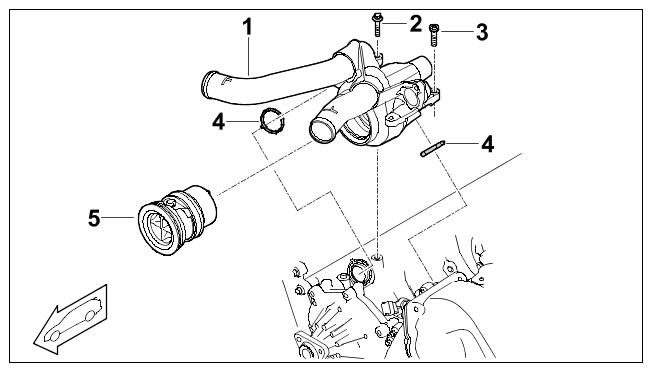

Thermostat housing and coolant regulator
| 1 | Thermostat housing |
| 2 | Screw, M6 x 25 |
| 3 | Screw, M6 x 25; screwed to fuel high-pressure distribution pipe => see relevant section |
| 4 | Seal for thermostat housing; replace |
| 5 | Thermostat insert; including electric heating element |
