Removing Coolant Pump

WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The pictures shown in this document may differ from the original.

Information

To ease removal, spray the pulley from the rear side with an anti-corrosion agent.

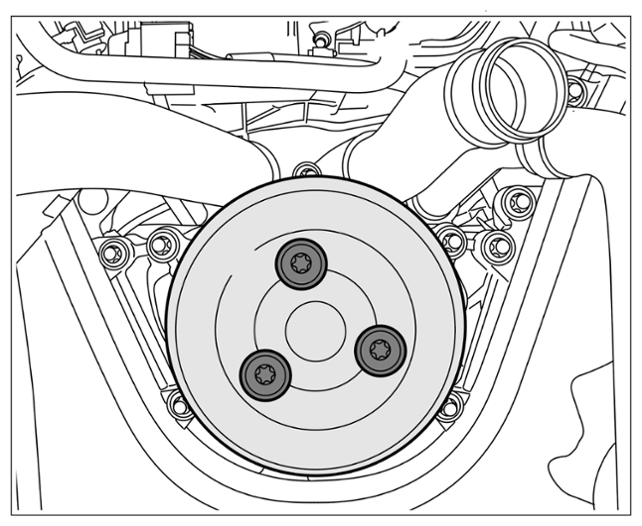

Loosen the three fastening screws on the coolant pump pulley. Block the pulley with a > Nr.38 - holder or > Nr.193 - brace if necessary or if the belt drive is removed.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulley
Detach drive belt from water pump. For details, see > 137819 REMOVING AND INSTALLING DRIVE BELT
NOTE:
Incorrect handling of pulley
- Risk of damage to pulley
  → The pulley is sensitive to impact. Do not prise off the pulley with a screwdriver.

  → Do not re-use a damaged pulley.
Unscrew the three loosened fastening screws on the pulley > Pulley and remove the pulley.

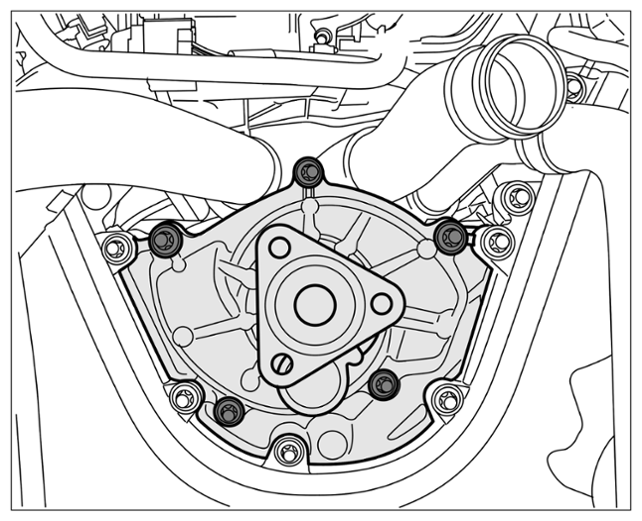

Unscrew the fastening screws > Coolant pump mounting -3- on coolant pump.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant pump mounting

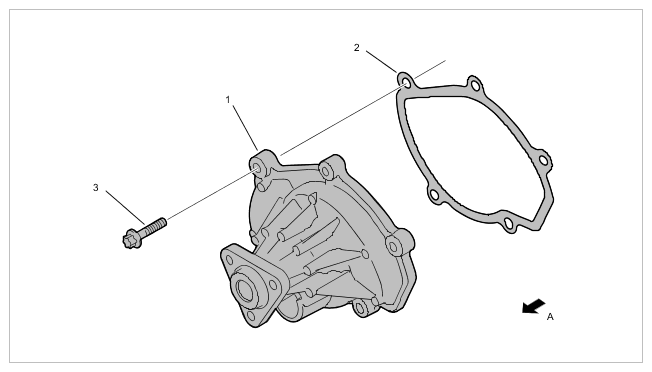

Fig 1: Coolant Pump Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant pump

1	Coolant pump
2	Seal; rubber seal fitted in coolant pump
3	Screw, M6 x 25
A	Direction of travel

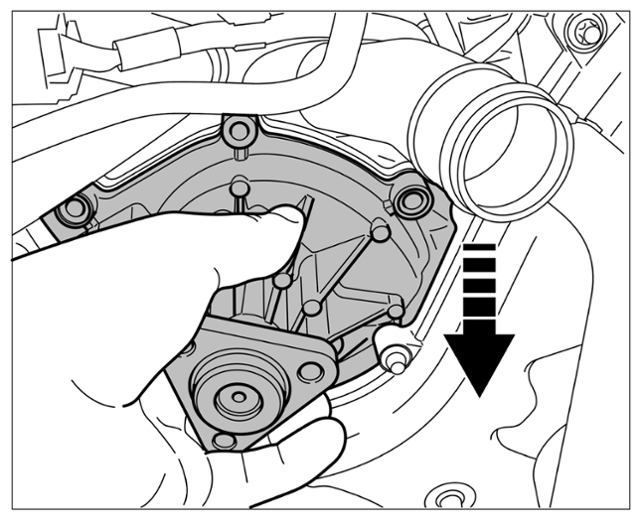

Remove the coolant pump.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing coolant pump.

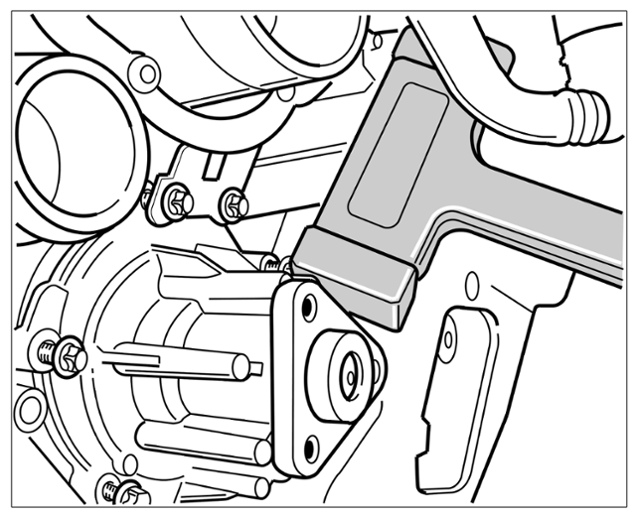

If the pump is stuck, loosen it by gently tapping with a plastic hammer. > Loosening coolant pump with a plastic hammer

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening coolant pump with a plastic hammer
