Component Overview
WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

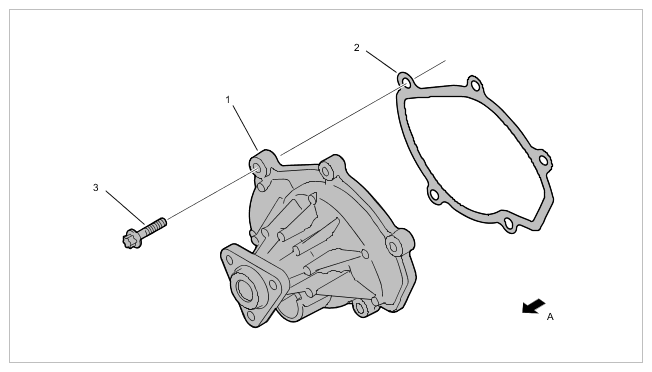

Coolant pump
| 1 |
Coolant pump |
| 2 |
Seal; rubber seal fitted in coolant pump |
| 3 |
Screw, M6 x 25 => For tightening sequence, see below |
| A |
Direction of travel |
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

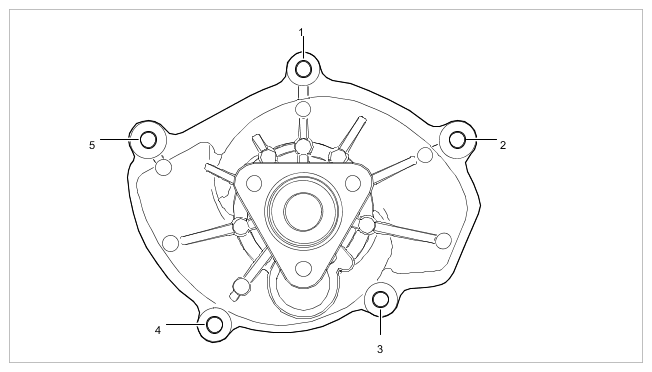

Tightening sequence for coolant pump
