Technical Values
WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
TIGHTENING TORQUE SPECIFICATIONS
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

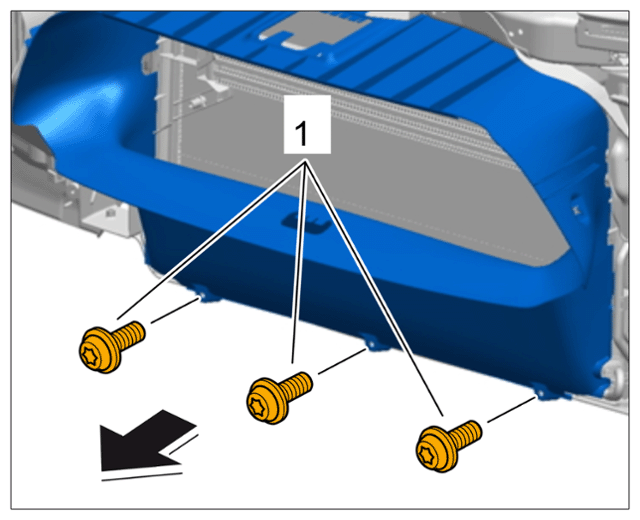

| Centre air guide to radiator module | Screw/Item 1 | Tightening torque | 5 (3.5 ftlb.) Nm | +/- 0.5 (0.35 ftlb.) Nm | |
|
Unscrewing fastening screws |
|||||
| Radiator holder | Screw | Tightening torque | 3.5 (2.6 ftlb.) Nm | +/- 0.5 (0.35 ftlb.) Nm | |
|

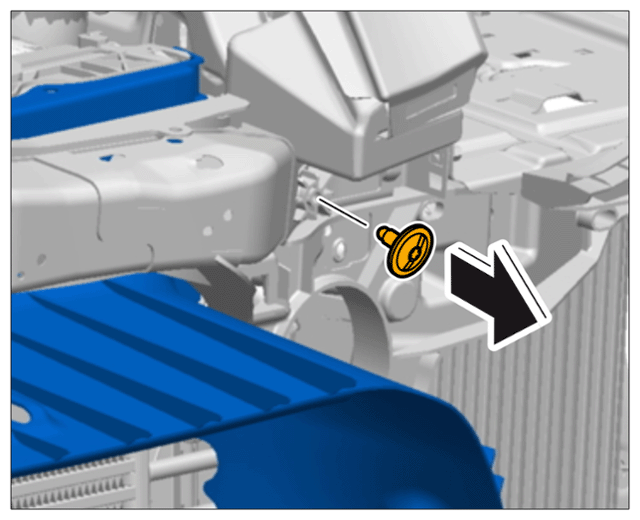

Removing holder from radiator |
|||||
