Removing (Front) Centre Air Guide

WARNING: This page is about a different car, the 2014 Porsche Cayenne, 2013 Porsche Cayenne, 2012 Porsche Cayenne, and 2011 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove air guide -1-  .
    1. 1.1 Loosen locks -2-  .
    2. 1.2 Move air guide -1-  in direction of arrow  and remove it by moving it forward.

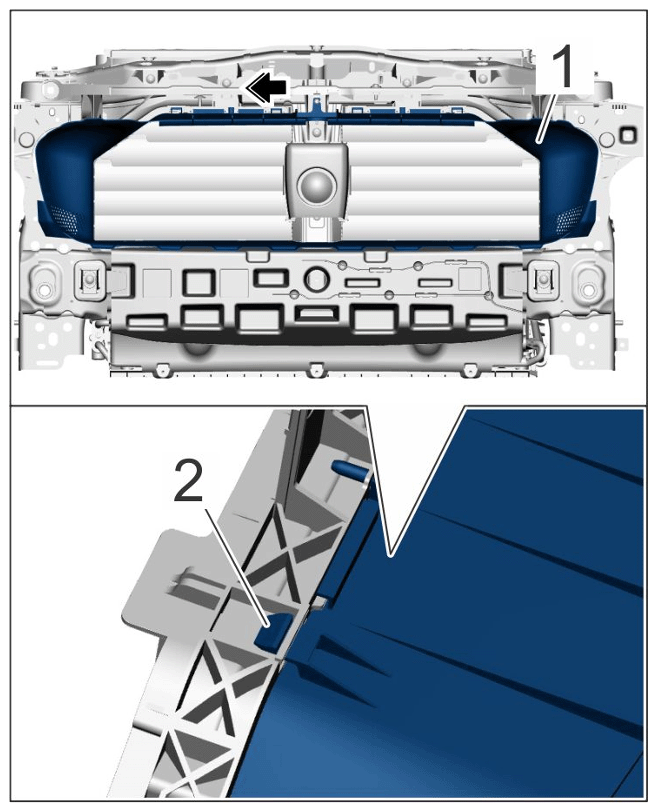

G16308752Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front centre air guide
