Removing Bearing Cover For Balance Shaft

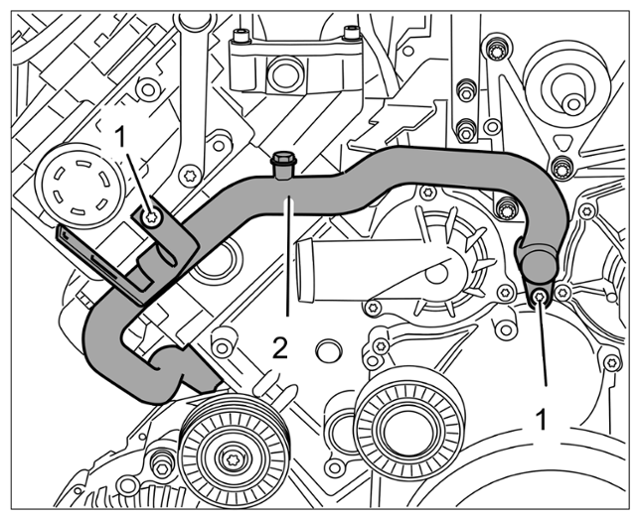

  1. Unscrew the fastening screws to the right -1-  of the coolant pipe -2-  .
    G14735400Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening coolant pipe

  2. Lever the fastening clip on the coolant pipe -2-  up as far as necessary to allow the bearing cover to be removed later.
  3. Lever the cap off the drive-belt deflection roller.

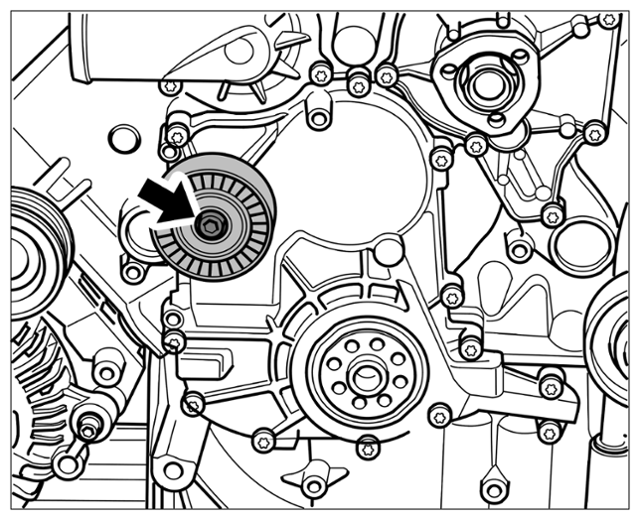

    G14735401Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing drive-belt deflection roller

  4. Unscrew the fastening screws -arrow-  and remove the deflection roller from the bearing cover.
  5. Unscrew the fastening screws from the bearing cover.

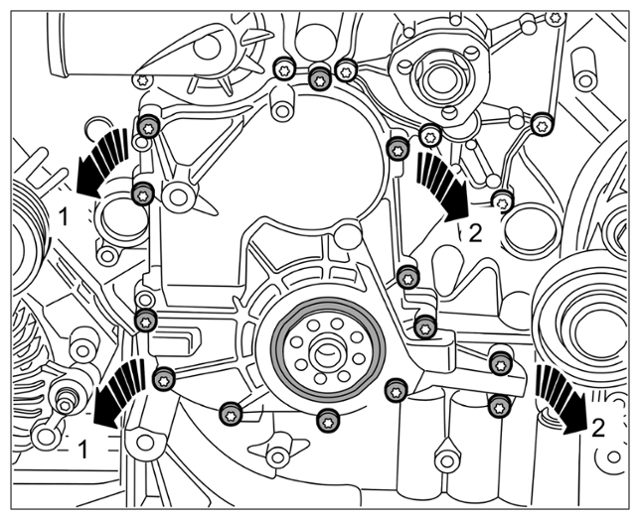

    G14735402Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing bearing cover

  6. Pull off the front bearing cover first at the right -arrows 1-  and then at the left -arrows 2-  .
  7. Drive out the sealing ring for the crankshaft pulley when the bearing cover is removed.
