Installing Engine Mounting

Information

• The engine mounts must be aligned using the engine carrier.
• The engine mounts differ (left/right) and must not be interchanged.

1. Install engine mount.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

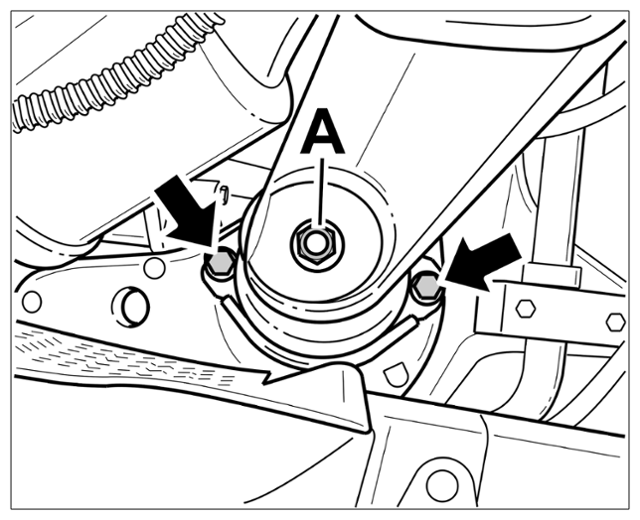

   Engine mount

   1. Fit engine mount.
   2. The dowel pin of the engine mount must sit correctly into the cut-out on the engine carrier.
   3. Fit fastening screws -Arrows-  but do not tighten yet.
   4. Fit new hexagon nut -A- and  tighten to > Tightening torque 75 Nm (55) +/- 8 Nm

      Fit the engine carrier to prevent the mount from turning.
