Engine Carrier

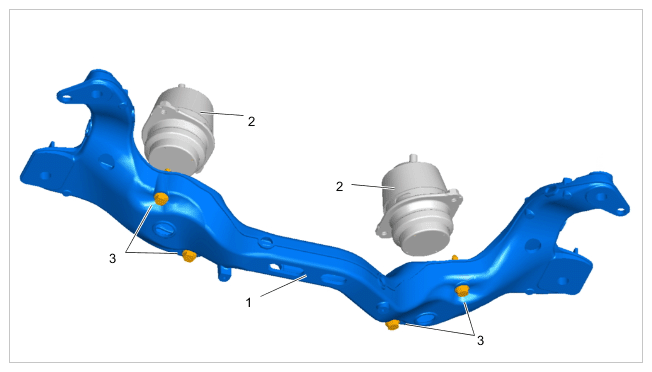

G14735389Courtesy of PORSCHE CARS NORTH AMERICA, INC.

V8 biturbo engine carrier

  1. Engine carrier
  2. Engine mount
  3. Screws > Tightening torque 60 Nm +/- 8 Nm
