Removing Engine Carrier

Information

The pictures and graphics shown may differ from the original depending on engine variants, additional equipment and/or country specifications.

However, the technical accuracy of the specifications is guaranteed.

Information

• This task can only be performed if the engine has been removed or suspended on the body.

1. Unscrew screws -3-  on the left and right engine mount from below.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

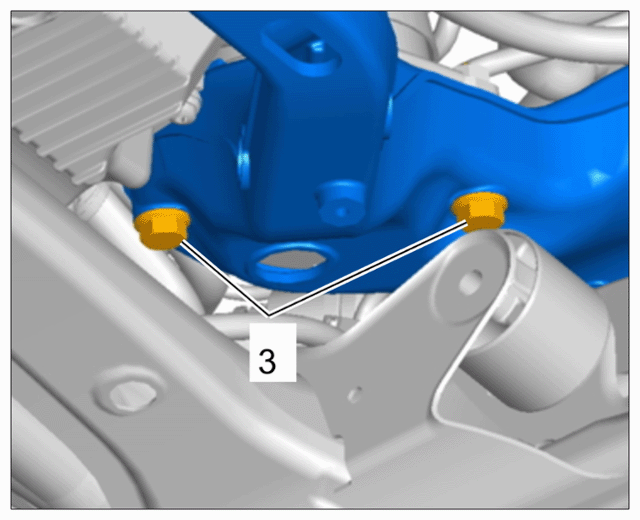

   Engine mount screws (figure shows V8 Bitubo)

2. Remove engine carrier by pulling it downward 1s.
