| Oval-head screw |
Coolant Pump, M6 x 18 (always replace) |
Tightening torque |
8 Nm |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Oil-filter housing |
|
|
|
|
| Coolant pump |
Fastening screw M6 x 18 |
Tightening torque |
8 Nm |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Water pump mounting |
|
|
|
|

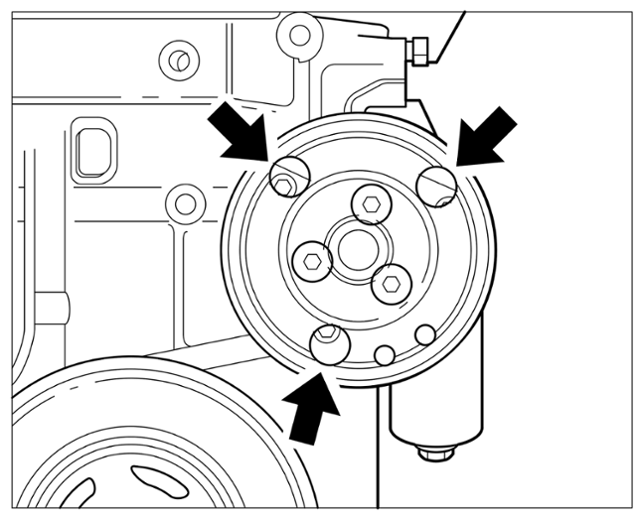

| Pulley on coolant pump |
Fastening screw, M8 |
Tightening torque |
20 Nm |
|
