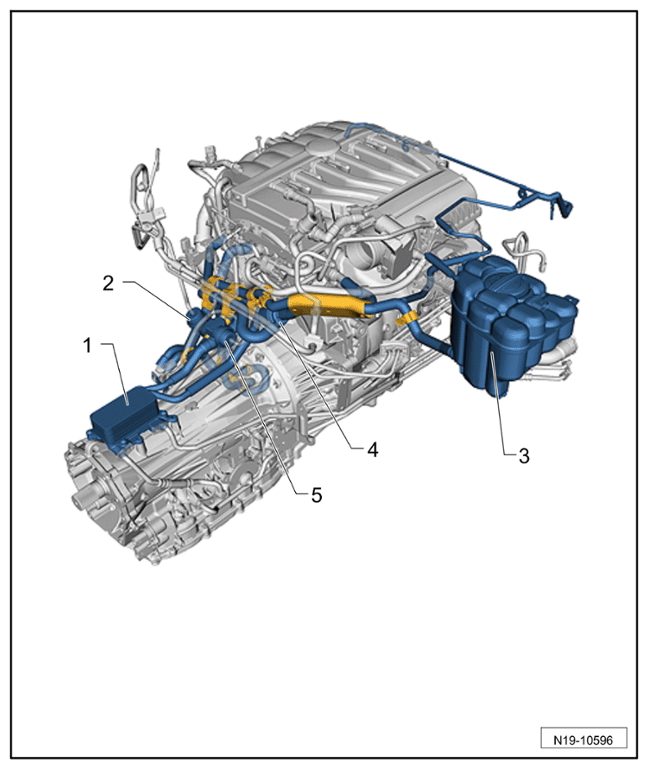

Assembly overview Part 2 - cooling system

1. ATF preheater
2. Shut-off valve for heat exchanger for heater
3. Coolant reservoir
4. Circulating pump
5. Shut-off valve for ATF preheater

Replace O-rings and seals.

Pull plug-in couplings to check that they are seated securely

Tightening torques:

M6 screws: > Tightening torque 10 Nm  (7.5 ftlb.)

M8 screws: > Tightening torque 20 Nm  (15 ftlb.)
