| Location |
Description |
Type |
Basic value |
Tolerance |
| Fastening screw for guide tube |
M6 |
Tightening torque |
8 Nm |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

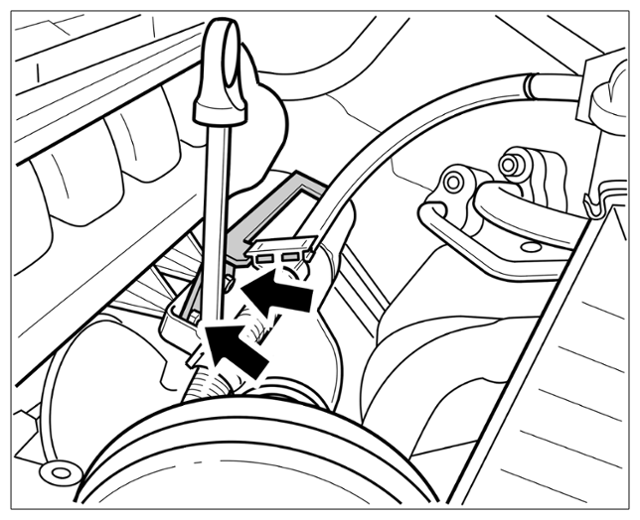

Fastening screw on guide |
|
|
|
|
| Fastening screw for sheetmetal holder |
M6 |
Tightening torque |
8 Nm |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

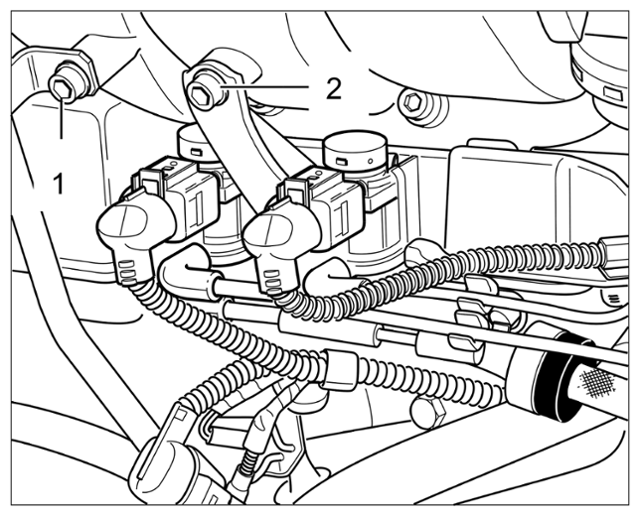

Sheetmetal holder mounting |
|
|
|
|
