Component Overview

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

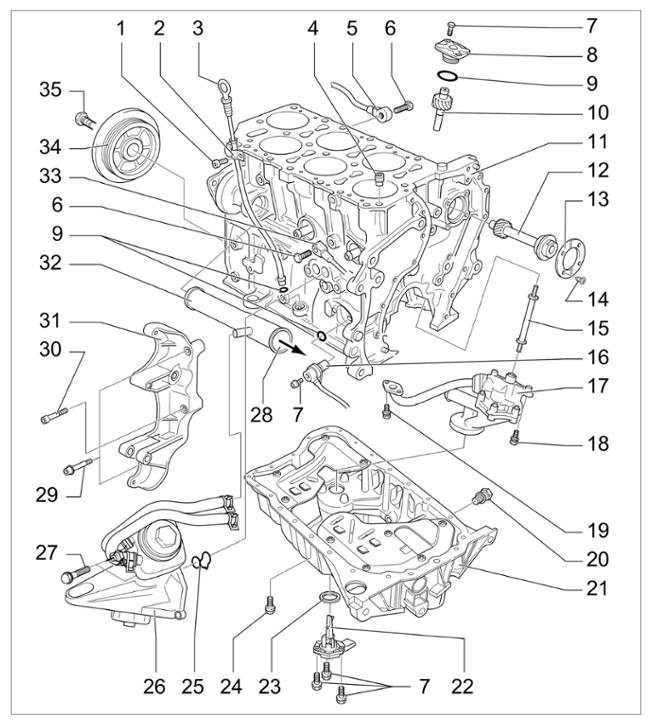

Component overview of oil pan

1. > Tightening torque 8 Nm (6 ftlb.)
2. Guide for oil dipstick
3. Oil dipstick
4. Oil check valve; check installation direction
5. Knock sensor; right with and left without cable
6. > Tightening torque 20 Nm (15 ftlb.)
7. > Tightening torque 10 Nm (7.5 ftlb.)
8. Cover for oil pump drive
9. O-ring; replace
10. Oil pump drive
11. Crankcase
12. Intermediate shaft
13. Thrust washer
14. > Tightening torque 10 Nm (7.5 ftlb.)  ; loosen carefully, use impact bolter if necessary; insert screws with screw locking agent
15. Drive shaft for oil pump; check that plastic washers are fitted
16. Crankshaft reference mark sender
17. Oil pump; observe tightening sequence
18. > Tightening torque 23 Nm (17 ftlb.)
19. > Tightening torque 8 Nm (6 ftlb.)
20. > Tightening torque 30 Nm (22 ftlb.);  replace
21. Oil pan
22. Oil-level sender
23. Sealing ring; replace
24. > Tightening torque 12 Nm (9 ftlb.)
25. Sealing ring; replace
26. Engine support arm/oil filter housing
27. > Tightening torque 20 Nm (15 ftlb.)
28. To thermostat; replace O-ring
29. > Tightening torque 25 Nm (19 ftlb.)
30. > Tightening torque 25 Nm (19 ftlb.)
31. Secondary unit holder
32. Coolant pipe; replace O-rings
33. Knock sensor (without cable)
34. Torsional vibration damper
35. > Initial tightening 100 Nm (74 ftlb.)  > Final tightening 90°  ; replace screw

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

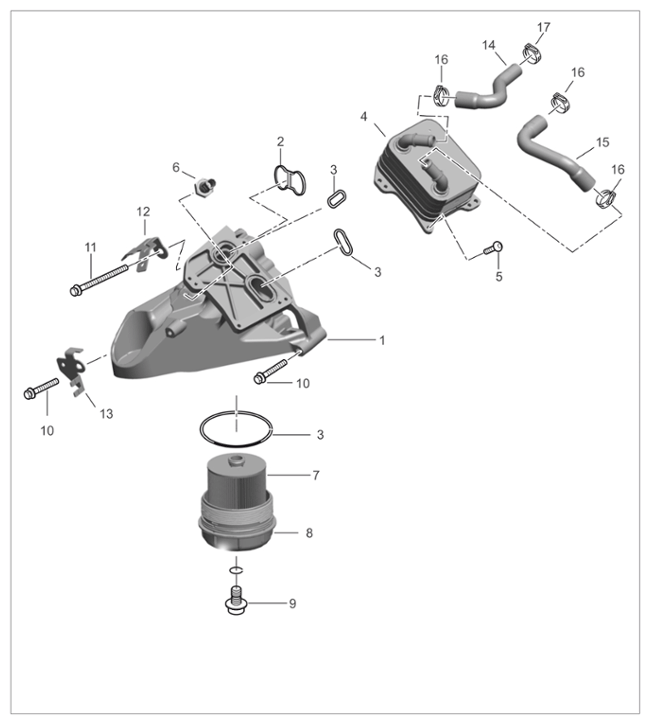

Component overview of oil filter and oil cooler

1. Oil-filter housing/engine support arm
2. Sealing ring; replace during removal and oil lightly
3. Sealing ring; replace during removal and oil lightly
4. Oil cooler
5. Screw > Tightening torque 8 Nm (6 ftlb.) +/-10
6. Oil pressure switch > Tightening torque 20 (15 ftlb.) Nm
7. Oil filter element
8. Oil filter cover with short-circuiting valve (2.5 bar opening pressure) > Tightening torque 25 (1 9 ftlb.) Nm
9. Oil drain plug for oil filter cover > Tightening torque 10 (7.5 ftlb.) Nm
10. Fastening screws > Tightening torque 23 (17 ftlb.) Nm
11. Fastening screws for bracket > Tightening torque 23 (17 ftlb.) Nm +/- 10 %
12. Holder
13. Holder
14. Water hose for crankcase
15. Water hose for thermostat housing
16. Hose clamp, 23 x 12
17. Hose clamp, 19 x 12

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

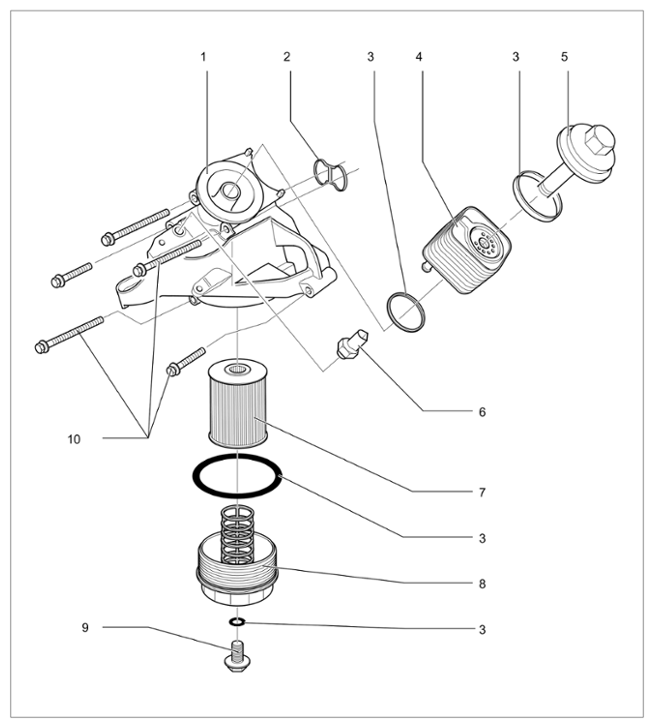

Oil-filter housing

1. Oil-filter housing/engine support arm
2. Sealing ring; replace during removal and oil lightly
3. Sealing ring; replace during removal and oil lightly
4. Oil/water heat exchanger; note installation position
5. Cover for oil/water heat exchanger (banjo bolt) > Tightening torque 25 Nm  (19 ftlb.)
6. Oil pressure switch > Tightening torque 20 Nm  (15 ftlb.)
7. Oil filter element
8. Oil filter cover with short-circuiting valve (2.5 bar opening pressure) > Tightening torque 25 Nm  (19 ftlb.)
9. Oil drain plug for oil filter cover > Tightening torque 10 Nm  (7.5 ftlb.)
10. Fastening screws > Tightening torque 23 Nm  (17 ftlb.)
