Timing Chain, Chain Tensioner

Location Description Type Basic value Tolerance
Chain tensioner   Tightening torque 50 Nm (37 ftlb.)

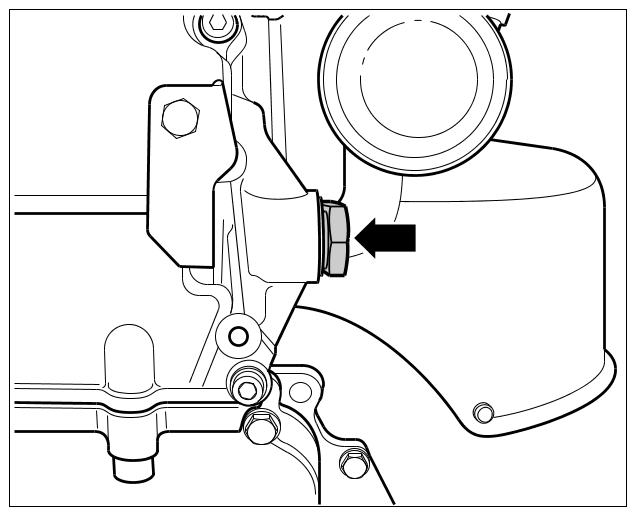

G14735321Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Chain tensioner
Chain tensioner   Tightening torque 40 Nm (30 ftlb.)
