Component Overview

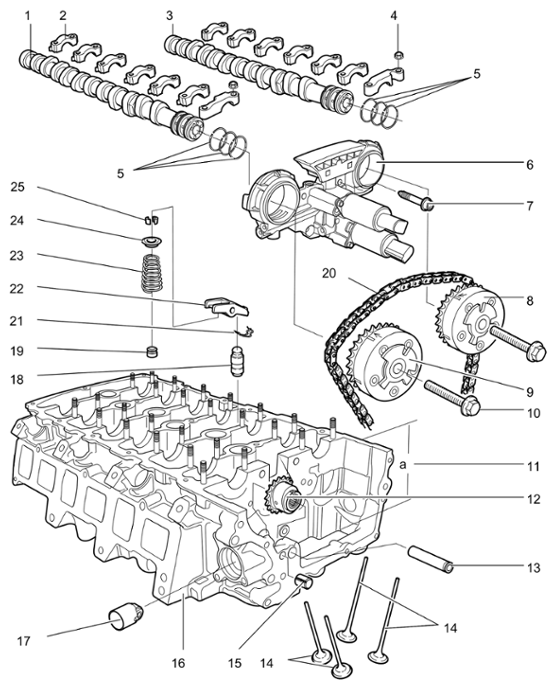

Overview of cylinder head on V6 DFI engine
- Intake camshaft
- Camshaft bearing cover
- Outlet camshaft
- Hexagon nut on camshaft bearing cover
- Sealing rings (40 x 1.5)
- Timing chain housing
- Oval-head screw on timing chain housing
- Outlet camshaft controller (marking 32 A)
- Intake camshaft controller (marking 24 E)
- Hexagon-head bolts on camshaft controllers
- Cylinder head height (min. height a=139.9 mm)
- Drive gearwheel for high-pressure pump
- Bearing shaft
- Valves
- Dowel sleeve
- Cylinder head
- Pump tappet
- Hydraulic tappet
- Valve-stem seal
- Timing chain
- Safety clips
- Toggle lever
- Valve spring
- Valve-spring plate
- Valve collets
Information
- Always check all components, such as timing chains, sprockets, locking pins and chamfers for wear or damage. Always replace faulty components.
- Always replace all fastening screws for the sprockets.
- Before removing the timing chains, mark the running direction with a colored pen.
- Maintain the same timing chain running direction during re-installation.
- Never use a prick punch or file for marking.
Information
Fix camshaft in place
- To loosen the fastening screws on the camshaft controller, counter the relevant camshaft with an open-ended wrench (a/f 27).
- To prevent damage, remove the camshaft guide.

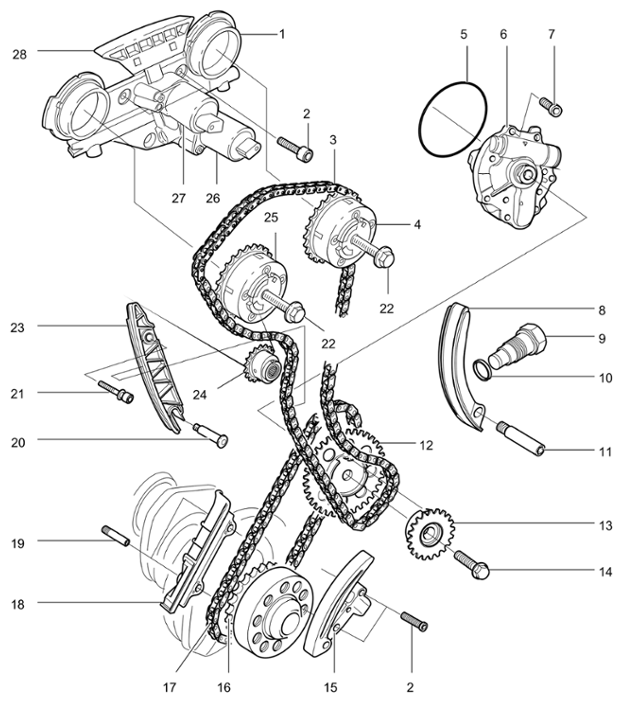

Component overview for timing chains
- Timing chain housing
- Fastening screw
- Timing chain
- Outlet camshaft controller
- Sealing ring
- Oil pump
- Fastening screw
- Tensioning rail
- Chain tensioner for timing chain
- Sealing ring
- Bearing pin
- Sprocket
- Sprocket
- Fastening screw
- Chain tensioner for drive chain
- Drive gear wheel for drive chain
- Drive chain
- Guide rail for drive chain
- Bolt
- Fastening screw for timing-chain guide rail
- Fastening screw for timing-chain guide rail
- Fastening screws for camshaft controllers
- Guide rail for timing chain
- Drive gearwheel for high-pressure pump
- Intake camshaft controller
- Valve for outlet camshaft controller
- Valve for intake camshaft controller
- Guide rail
