Crank Drive/Pistons

Location	Description	Type	Basic value
Multiple-tooth screw on crankshaft bearing cover	M10 x 78 (always replace)	Initial tightening	30 Nm
Internal serration screw on crankshaft bearing cover		Torque angle	180°
Countersunk screw on drive plate for inductive pickup	M6 x 13 (always replace)	Initial tightening	10 Nm
Countersunk screw on drive plate for inductive pickup		Torque angle	90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Crank drive V6
Connecting rod bolts	M9 x 1 x 50 (always replace)	Initial tightening	30 Nm
Connecting rod bolts		Torque angle	90°

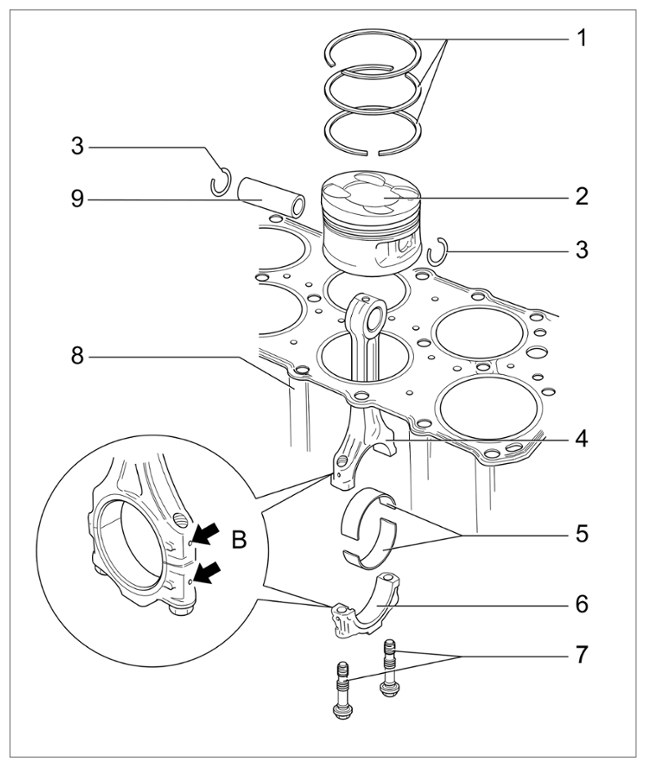

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of piston/connecting rod
