Suspension, Engine Mount, Engine Support
> Tightening torque 23 Nm (17 ftlb.)
| Location |
Description |
Type |
Basic value |
Tolerance |

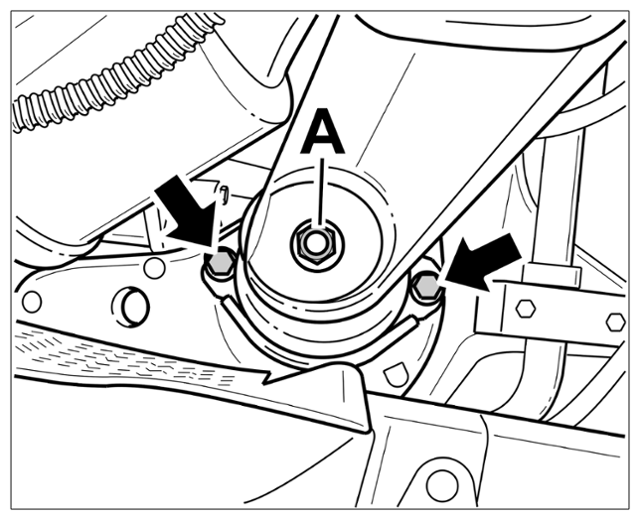

| Hexagon nut for engine mount |
M12x 1, 5 |
Tightening torque |
75 Nm (55) |
+/- 8 Nm |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Engine mount |
|
|
|
|

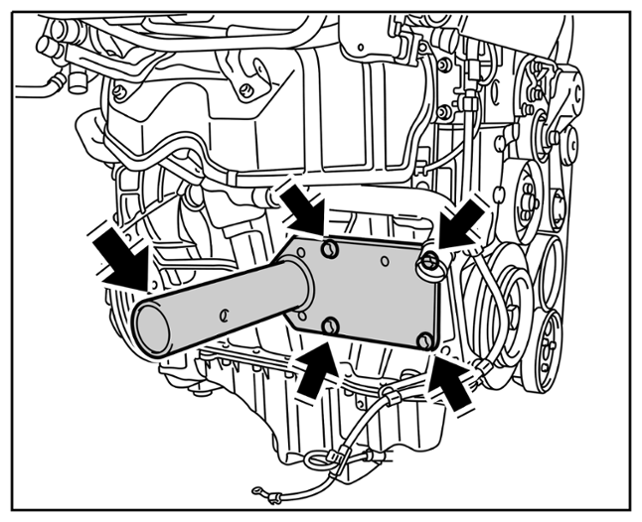

| Special tool - engine support |
|
Tightening torque |
45 Nm |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Engine support |
|
|
|
|
