Tools And Materials: Tools

Tool setup - > VAS 6832 - Master Gear unit elevating platform  with suitable setup kit.

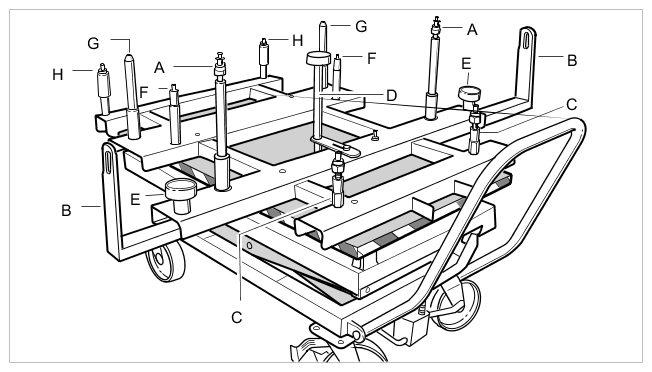

G14735070Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lifting platform

  1. Assembly mandrel  => Height can be adjusted; used for mounting in the engine carrier; equipped with a locking screw to prevent engine from tipping and to adjust the height. Position 2 in the base carrier
  2. Wheel hub holder  => Secures the spring struts to prevent them from tipping. Inserted from the side into the second cross member from the front
  3. Assembly mandrel  => Height can be adjusted; used for mounting in the front-axle carrier at the front; equipped with a locking screw to prevent engine from tipping and to adjust the height. Position 1 in the base carrier
  4. Support  => Not used here.
  5. Wishbone support  => Used in conjunction with -B-  to protect the wheel suspension and spring struts from damage.
  6. Assembly mandrel  => For mounting on the front-axle carrier at the rear. Position 3 in the base carrier
  7. Assembly mandrel  => Guide for positioning the lifting platform into the body; first moves into a bore in the body for centering roughly. Position 4 in the base carrier
  8. Assembly mandrel  => For mounting on the transmission cross member. Position 5 on the base carrier

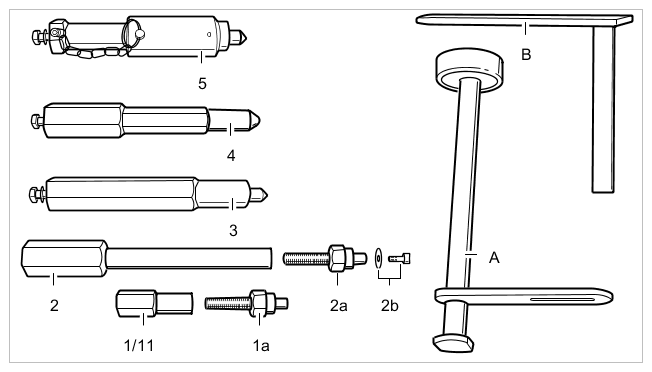

G14735071Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tool overview

  1. Support  => Prevents the engine from tipping backwards. Not generally used.
  2. Wheel hub holder  => Secures the spring struts to prevent them from tipping.

    1/11 Front front-axle carrier mounting  => Height can be adjusted; used for mounting in the front-axle carrier at the front; equipped with a locking screw to prevent engine from tipping and to adjust the height. Position 1 in the base carrier

      1. Mounting point with height adjustment  => Screwed into part 1/11.
    2. Lateral mounting mandrel for engine carrier  => Height can be adjusted; used for mounting in the engine carrier; equipped with a locking screw to prevent engine from tipping and to adjust the height. Position 2 in the base carrier
      1. Mounting point with height adjustment  => Screwed into part 2.
      2. Protection against tipping  => Screwed into part 2a. Prevents the engine from tipping forward.
    3. Rear front-axle carrier mounting => Position 3 in the base carrier
    4. Mount in the body => Position 4 in the base carrier
    5. Mount for transmission cross member => Position 5 in the base carrier

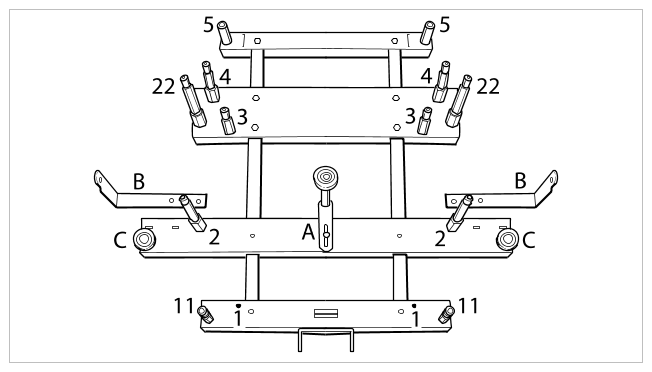

    G14735072Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Complete structure of the base carrier with mounting mandrels

A, 22 and 11  Not used for removing the engine

  1. Screw in mounting mandrel for front-axle carrier at the front (instead of "11")
