Installing Engine
Information
- Due to currently correct tightening specifications, the screw specifications can be found in the corresponding repair descriptions for the assemblies chassis, transmission, electrics, etc.
Special equipment-specific features are described in the notes.

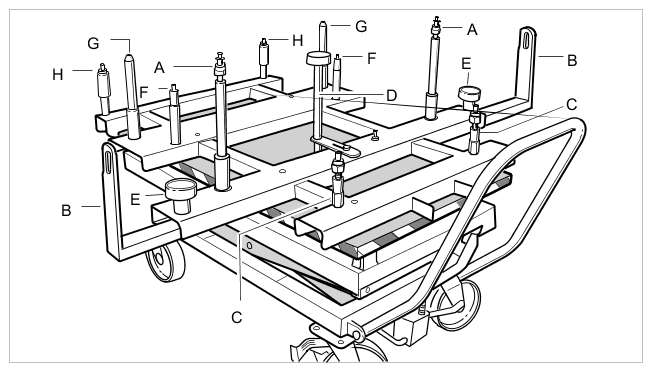

Tool setup - > VAS 6832 - Master Gear unit elevating platform with suitable setup kit.
Lifting platform
- Assembly mandrel => Height can be adjusted; used for mounting in the engine carrier; equipped with a locking screw to prevent engine from tipping and to adjust the height. Item 2 in base carrier
- Wheel hub holder => Secures the spring struts to prevent them from tipping. Inserted from the side into the second cross member from the front
- Assembly mandrel => Height can be adjusted; used for mounting in the front-axle carrier at the front; equipped with a locking screw to prevent engine from tipping and to adjust the height. Item 1 in base carrier
- Support => Not used here.
- Wishbone support => Used in conjunction with -B- to protect the wheel suspension and spring struts from damage.
- Assembly mandrel => For mounting on the front-axle carrier at the rear. Item 3 in base carrier
- Assembly mandrel => Guide for positioning the lifting platform into the body; first moves into a bore in the body for centering roughly. Item 4 in base carrier
- Assembly mandrel => For mounting on the transmission cross member. Item 5 on base carrier

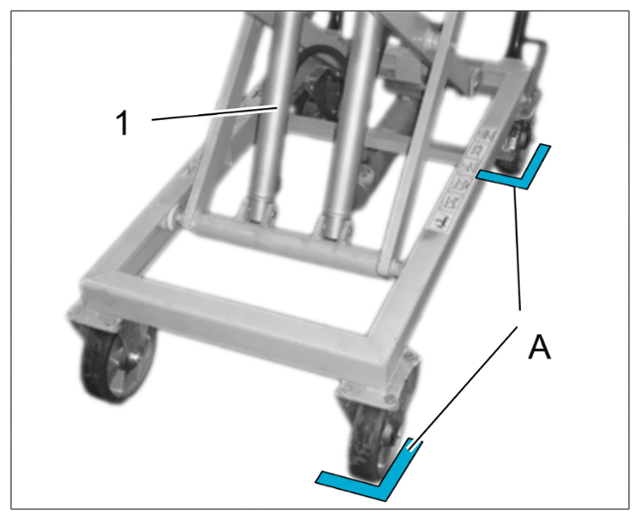

- Slide the lifting platform -1-
with the engine/transmission assembly to the marked positions -A-
on the workshop floor.
Position of lifting platform
- Raise the body to a comfortable working height with the platform lift.

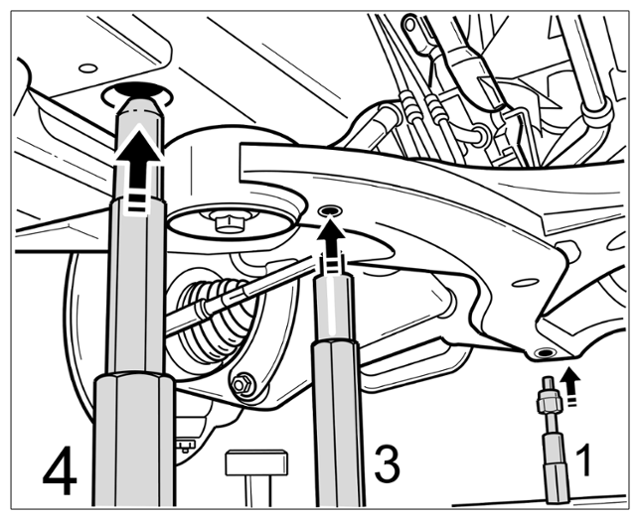

- Raise the engine/transmission unit into the body using the lifting platform > Guiding engine/transmission unit into the body with the lifting platform.
Make sure there is sufficient clearance. The freely-suspended lines (e.g. PDCC) must be routed in such a way that they do not go back into the installation position (he lines must not be trapped). The insertion guides -4-
on the lifting platform must fit into the holes in the body. When doing this, use the markings made during removal as a positioning guide.
Lifting platform

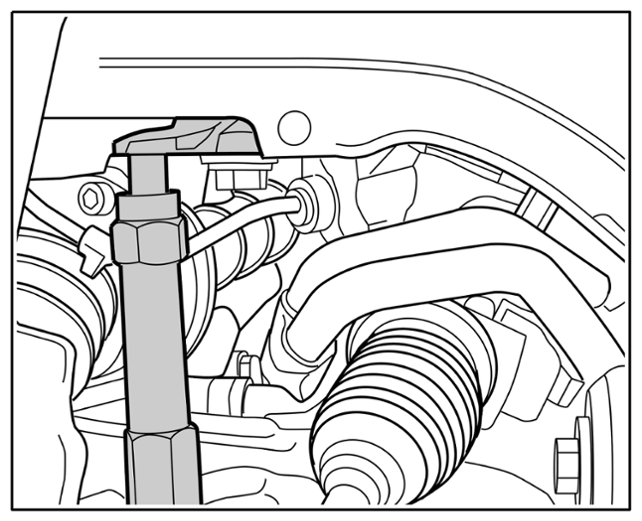

Guiding engine/transmission unit into the body with the lifting platform
- Then insert the engine fully up into the engine compartment. > Inserting engine completely
When doing this, use the markings made during removal as a positioning guide.
Inserting engine completely

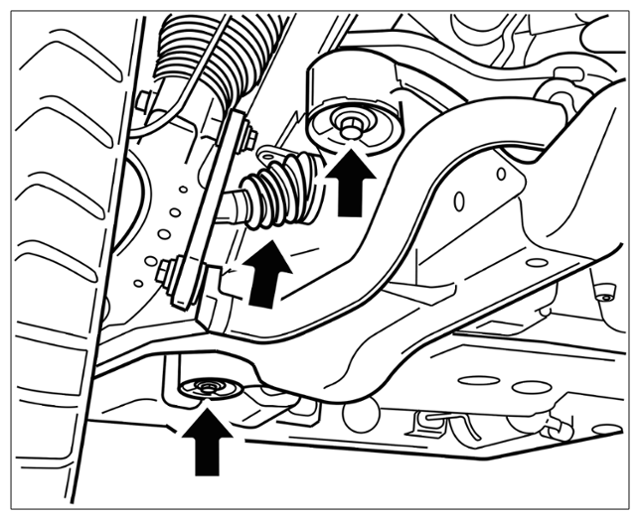

- Tighten the six new front-axle carrier and engine carrier screws > Fastening screws for front-axle carrier and engine carrier. For details see
Fastening screws for front-axle carrier and engine carrier

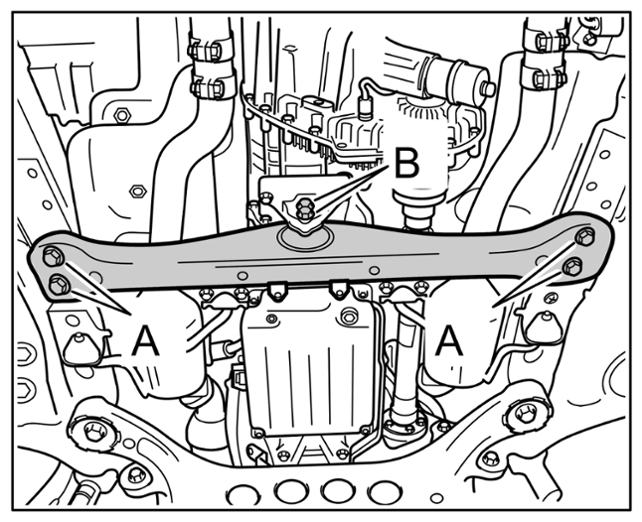

- Install transmission cross member. For details see
> WM 396519 REMOVING AND INSTALLING TRANSFER GEAR (ALL MODELS)
-A- .
Fastening screws for transmission cross member

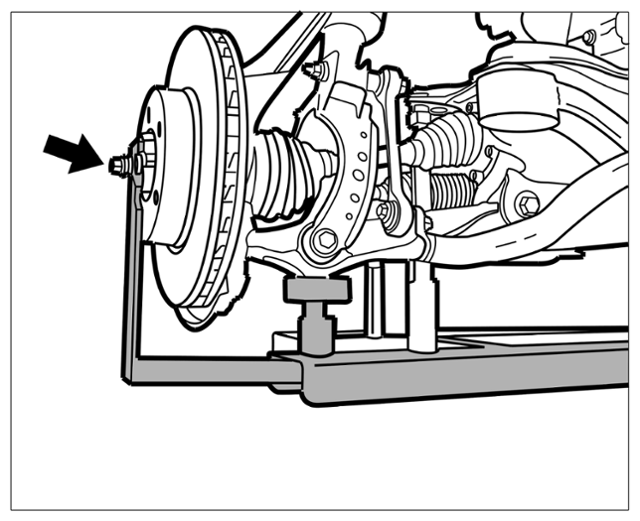

- Loosen the lateral supports on the wheel hubs. > Support on wheel hub
Support on wheel hub
- Lower the lifting platform slowly and remove it.

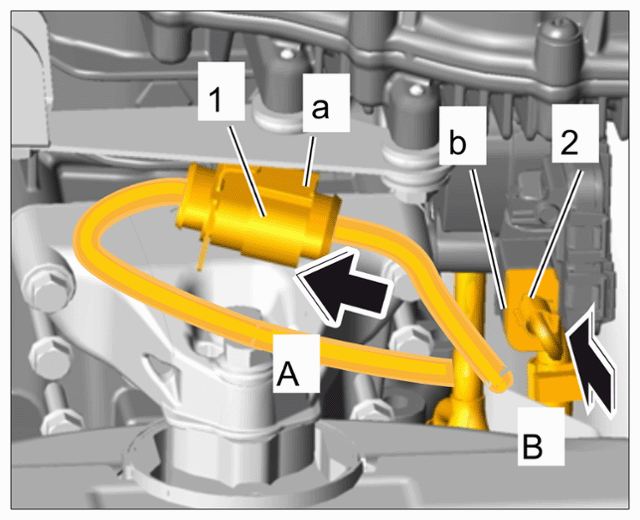

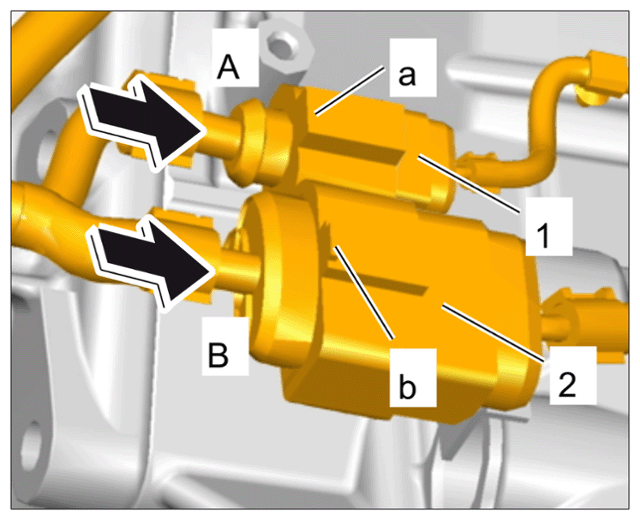

- Plug in electric plug connections -1, 2-
at the bottom of the transfer gear -A, B-
and lock them -a, b-
Plug connections for transfer gear at the bottom
- Plug in electric plug connections -1, 2-
at the right of the transfer gear -A, B-
and lock them -a, b-
.
Plug connections for transfer gear at the right

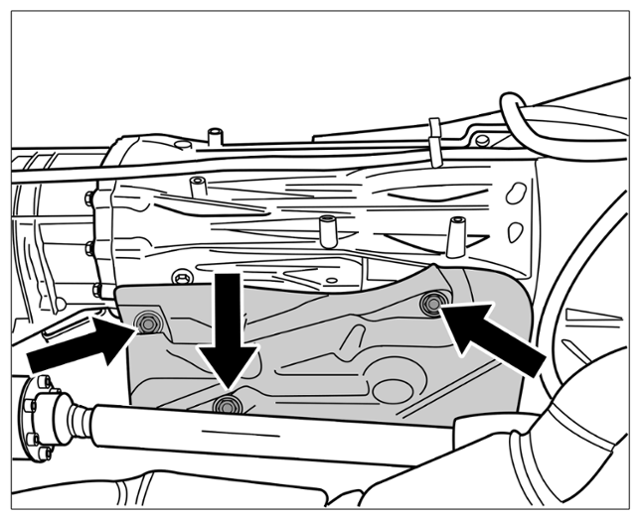

- Fit heat shield on the right of the transmission. To do this, screw in the fastening screws -arrows-
. > Tightening torque 10 Nm (7.5 ftlb.)
Heat shield

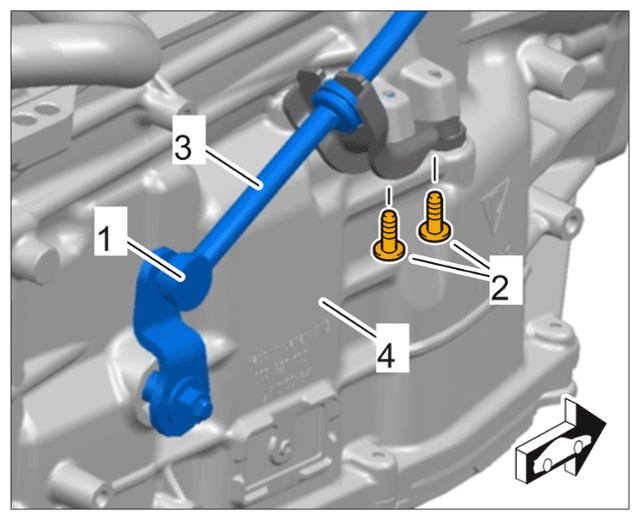

- Fit shift cable -3-
on automatic transmission -4-
.
> WM 371519 REMOVING AND INSTALLING SELECTOR LEVER CABLE (ALL MODELS)
Shift cable on automatic transmission
- Clip in shift cable -3- at the ball joint -1- .
- Fit the fastening screws -2- .
- Fit the coolant line -1-
from the air-conditioning compressor to the condenser -2-
.
Use a new sealing ring.
Make sure that the guide pin at the connection point fits into the mounting for the refrigerant line.
Line from air-conditioning compressor to condenser

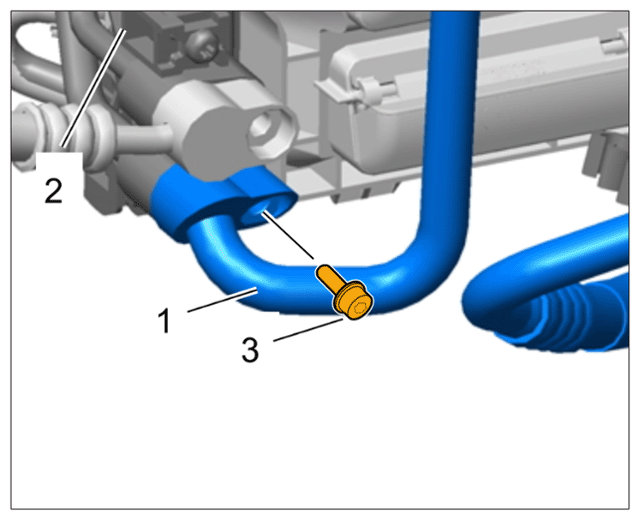

- Fit the coolant line -1- on the condenser -2- and screw in the fastening screw -3- .

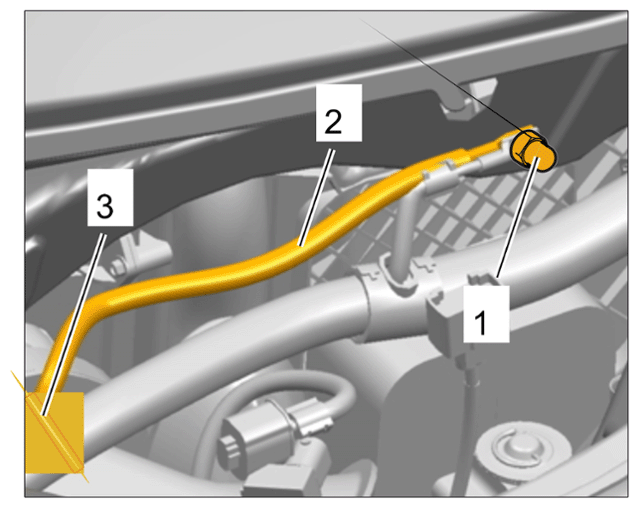

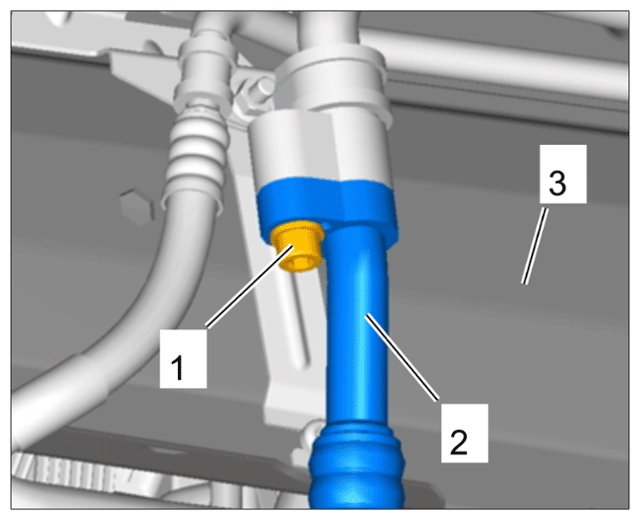

- Position front part of refrigerant line -2-
from the compressor to the evaporator at the longitudinal member -3-
at the left.
Use a new sealing ring.
Make sure that the guide pin at the connection point fits into the mounting for the refrigerant line.
Front left refrigerant line
Screw in fastening screw -1- .

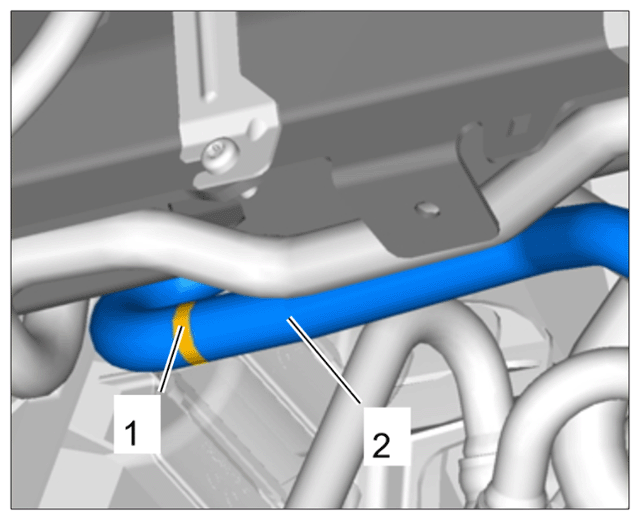

- Slide hose onto the hydraulic line -2-
in the front left wheel housing and position the clamp -1-
.
Front left hydraulic line

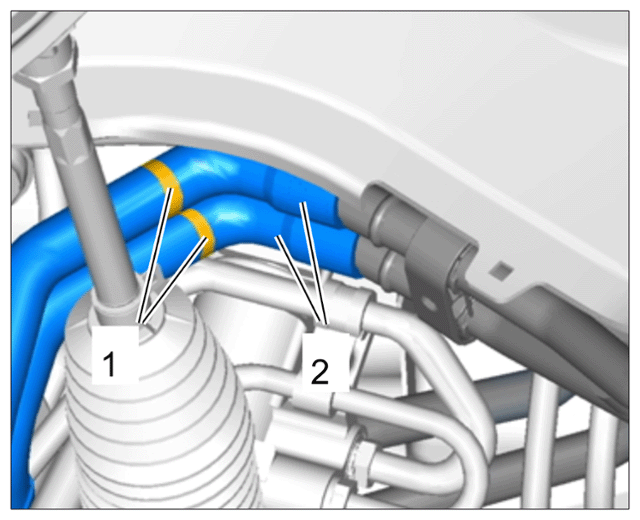

- Attach hoses -2-
to the coolant lines in the engine compartment at the rear left and position the clamps -1-
.
Coolant lines in front left wheel housing

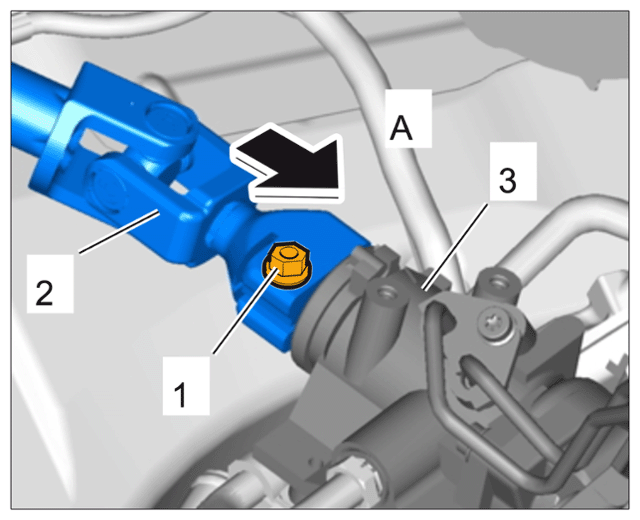

- Fit the steering column -2-
on the steering gear -3-
.
Installing steering column
- Fit the steering column -2- from above -arrow- onto the steering gear -3- (-A-) .
- Fit clamping screw.
Always use a new clamping screw.
- Fit ATF lines at the thermostat.

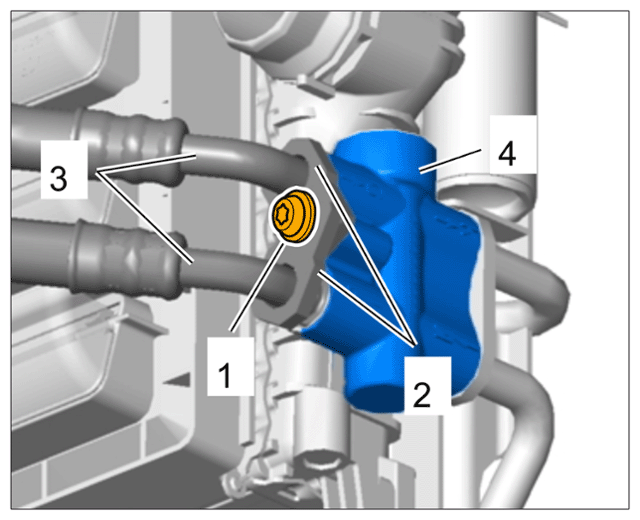

ATF lines from thermostat to transmission
- Insert ATF lines -3- into the thermostat -4- .
- Place holder -2-
for ATF lines -3-
to the ATF thermostat -4-
in position.
Ensure that the lines are seated correctly.
- Fit the fastening screw
- Fit the cardan shaft
> WM 393519 REMOVING AND INSTALLING REAR CARDAN SHAFT (ALL MODELS)

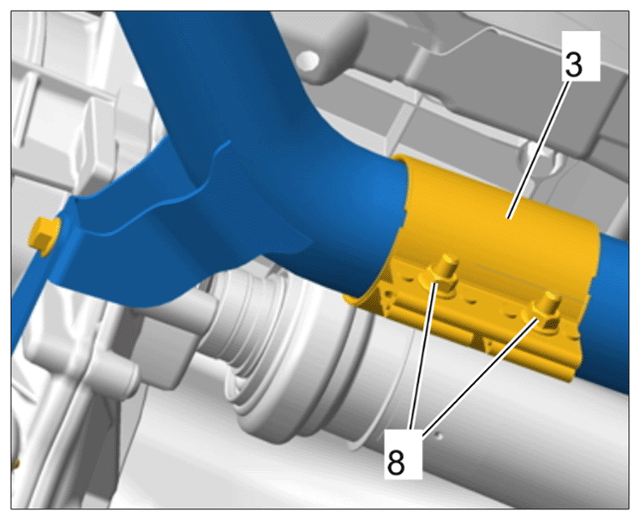

- Push new exhaust clamps (clamping sleeves) -3-
onto the exhaust pipes. The threaded joint must be pointing downwards. Tighten fastening screws.
Fitting clamps
Information
- For vehicles with Servotronic, the electric connectors on the steering gear must also be connected.

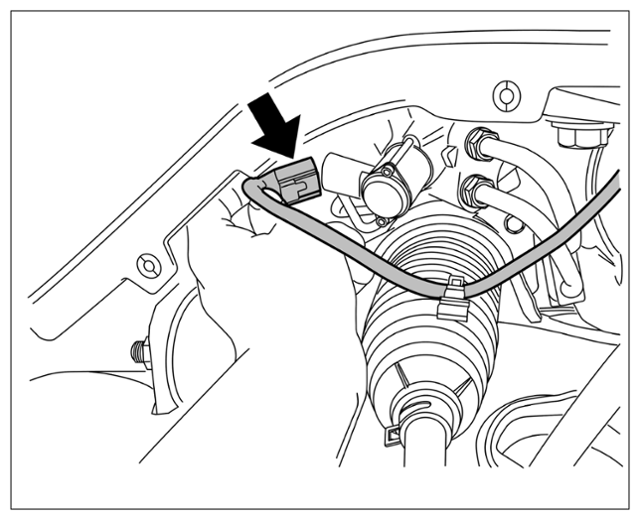

- Fit electric connector on the steering gear (Servotronic only). -arrow-
Servotronic cable plug

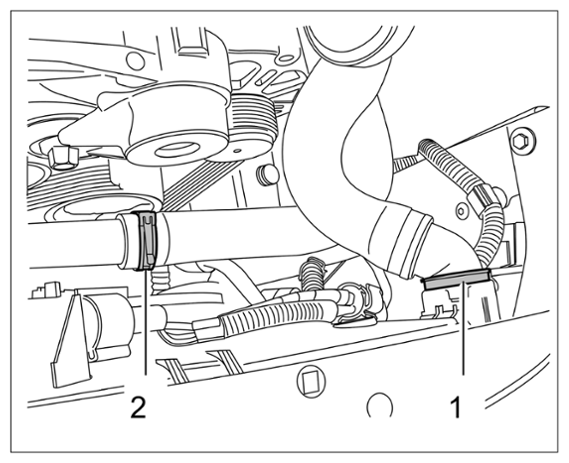

- Slide the coolant supply and return lines onto the radiator. To do this, press the top hose on the radiator flange until you feel it engage Slide on bottom hose -2-
. Then fit the spring band clamp.
Connect the small breather hose.
Coolant hoses

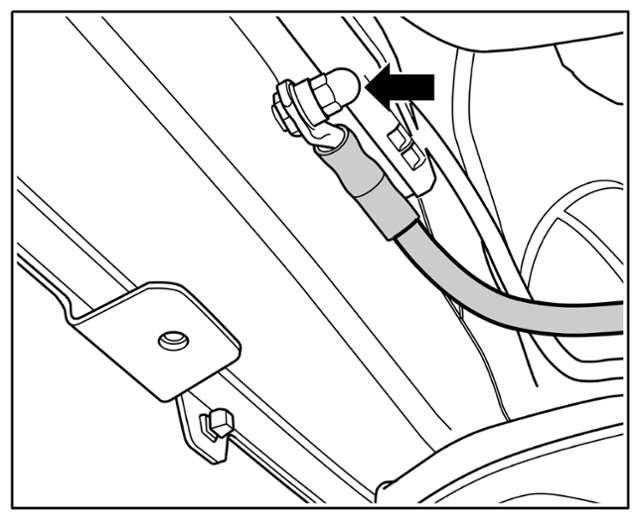

- Mount the ground point of the generator on the right side member. > Tightening torque 20 Nm (15 ftlb.)
Ground point of the generator to the right side member
Information
The slightly different illustrations between V8 and V6 show essentially the same actions.
- Fit the wheel bearing housing on the ball joint of the upper trailing arm.

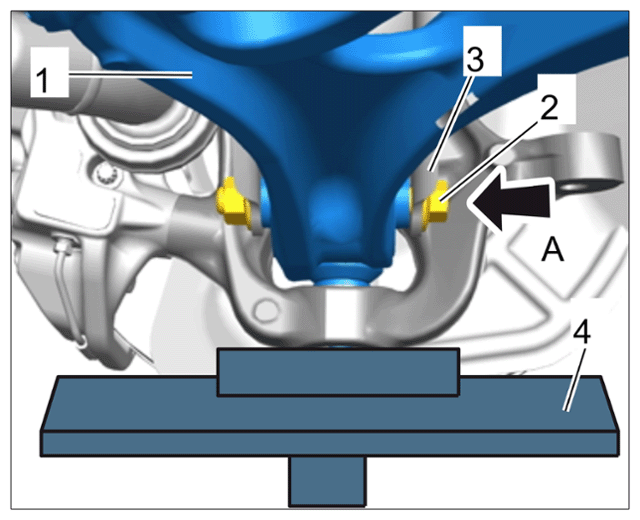

- Raise the axle support -1-
as far as required using a suitable jack -4-
until the fastening screw -2-
slides easily through the spring strut -3-
and axle support.
Spring strut threaded joint
- Fit the fastening screw -2- for the spring strut -3- and trailing arm -2- .

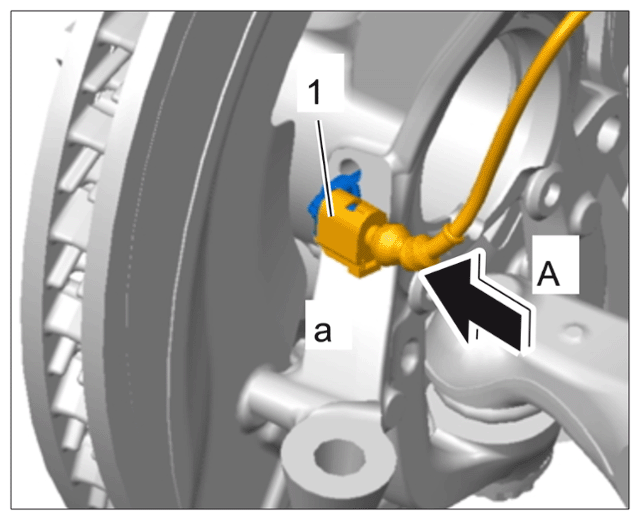

- Plug in electric plug connection -1-
for the speed sensor on the wheel bearing housing -A-
and lock it -a-
.
Electric plug connection for speed sensor (shown as an example)
- Position and fit the brake calliper on the brake disc at the wheel bearing housing.

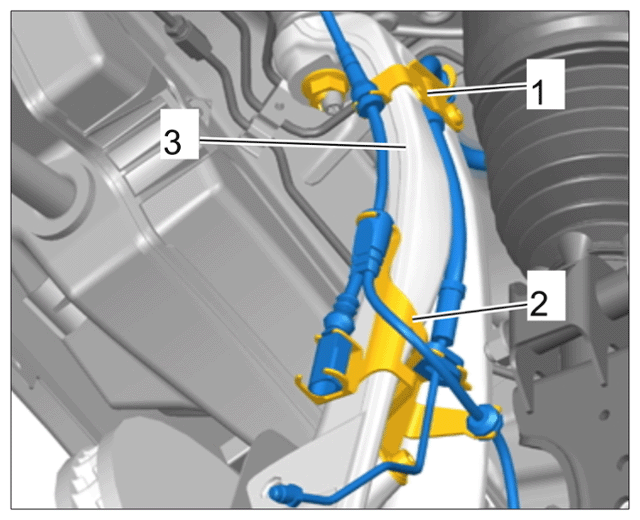

- Fit the holders -1, 2-
for the hydraulic lines on the wheel bearing housing -3-
.
Mounting for hydraulic lines

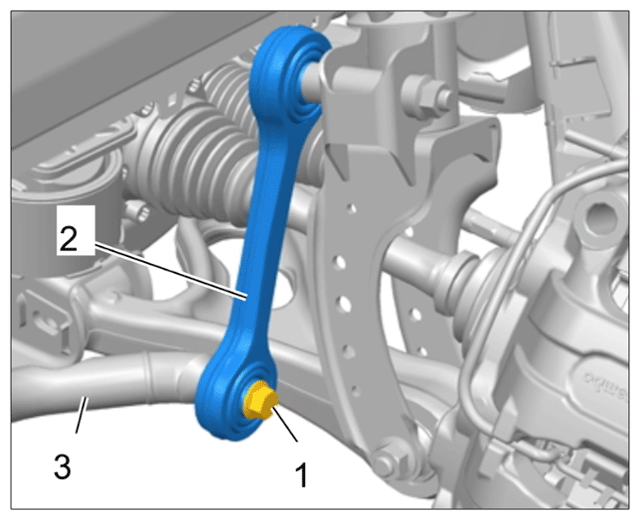

- Fit the connecting link -2-
on the anti-roll bar -3-
and screw in the fastening screw -1-
.
Connecting link for anti-roll bar
- Lower the vehicle halfway.

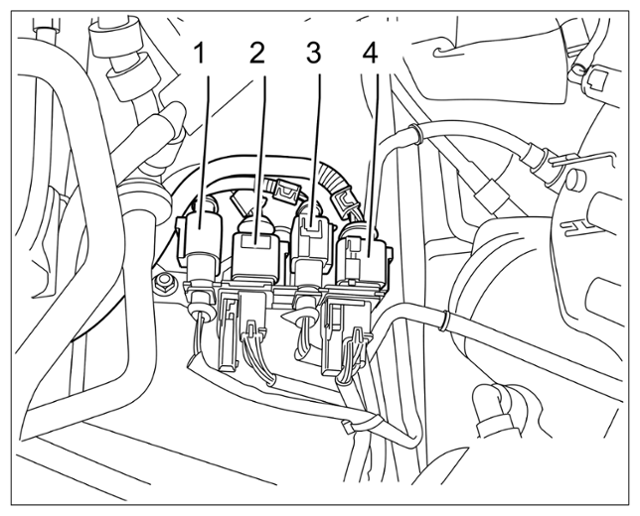

- Connect the four oxygen sensor connectors at the radiator tank splash panel. -1, 2, 3 and 4-
Oxygen sensor connector on the plenum panel splash panel

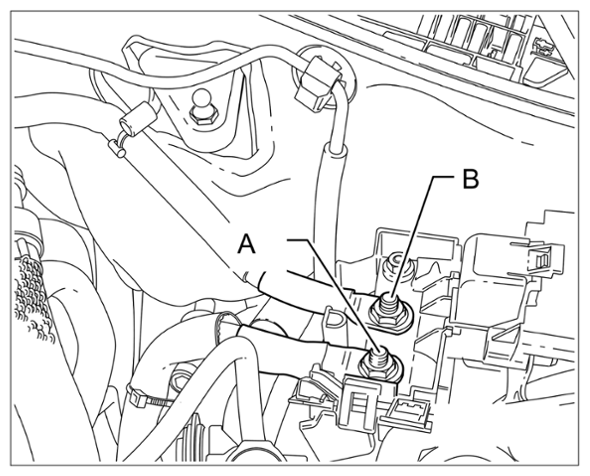

- Mount B+ transfer point on left spring dome. To do this, connect the two positive cables from the engine using the pins. Clip in cable on the bulkhead. -A and B-
> Tightening torque 23 Nm (17 ftlb.)
B+ transfer point on left spring dome

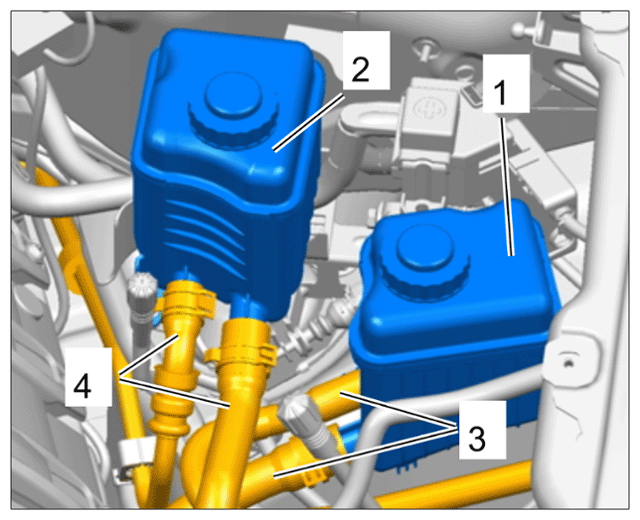

- Fit the hoses -3, 4-
to reservoirs.
Fill the hydraulic fluid reservoir -1- and the PDCC reservoir -2- , if necessary, to the correct fluid level.
Hoses for hydraulic reservoir

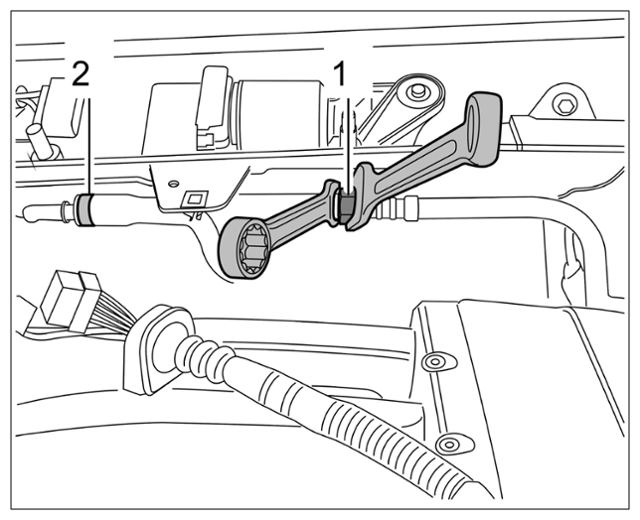

- Fit fuel line -1-
and tank vent line from the carbon canister -2-
to the plenum panel splash panel. Clip in tank vent line at the plenum panel. > Tightening torque 35 Nm (26 ftlb.)
Tank vent and fuel line

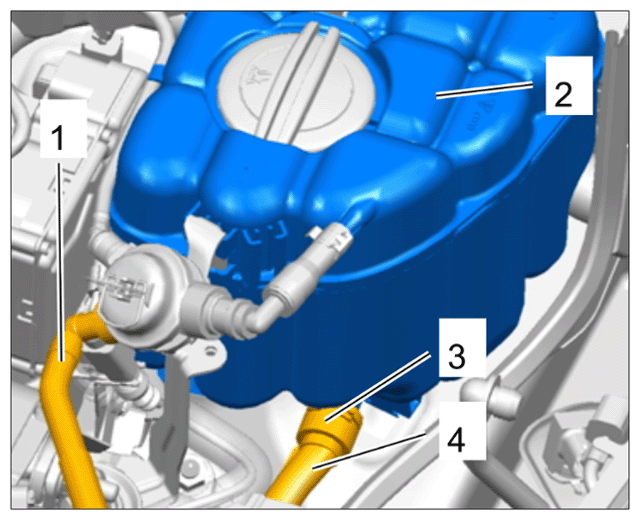

- Slide the coolant line -4-
at the bottom onto the coolant reservoir -2-
and lock the clamp -3-
.
Coolant lines at the reservoir

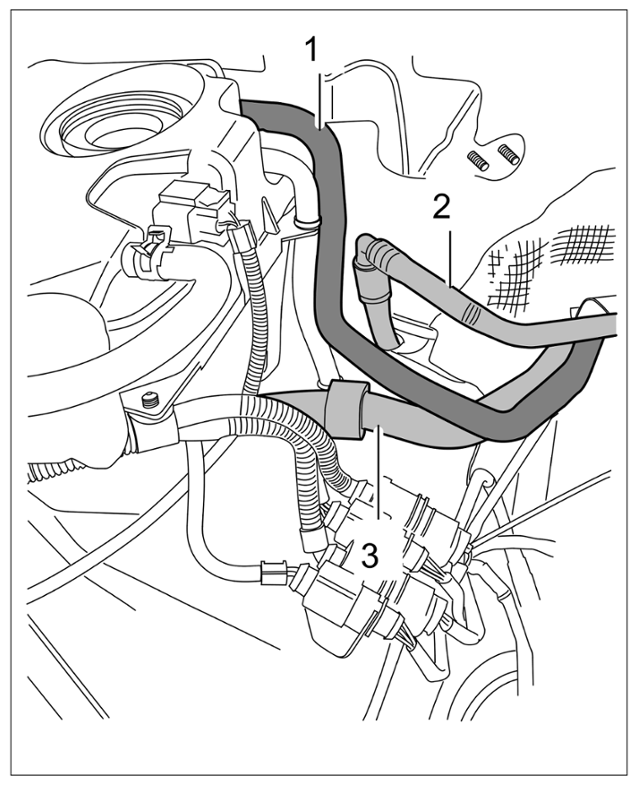

- Fit the two coolant lines and the vacuum line on the right side of the engine compartment. -1 to 3-
Simply press on the vacuum line (hold line securely below the connection).
Wiring

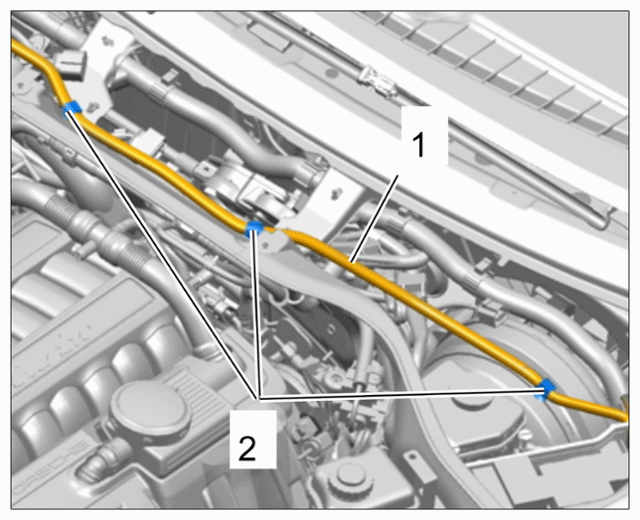

- Route the engine wire harness -1-
in the plenum panel and clip it into the retaining clips -2-
.
Engine wire harness in plenum panel

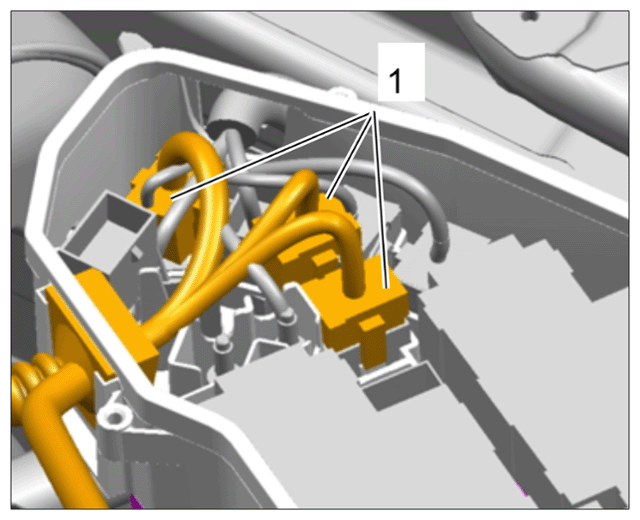

- Plug in and lock the electric plug connections -1-
for the engine wire harness in the relay box.
Plug connections in relay box
- Close the relay box.
> WM 970909 LOOSENING AND SECURING MAIN WIRE HARNESS IN ENGINE COMPARTMENT AT THE LEFT
- Attach tank vent lines and lock the clamp -2- .
- Fit the ground strap -2-
in the plenum panel at the body and screw on the fastening nut -1-
. Secure the ground strap to the engine wire harness with tie-wraps -3-
if necessary.
Ground point on body

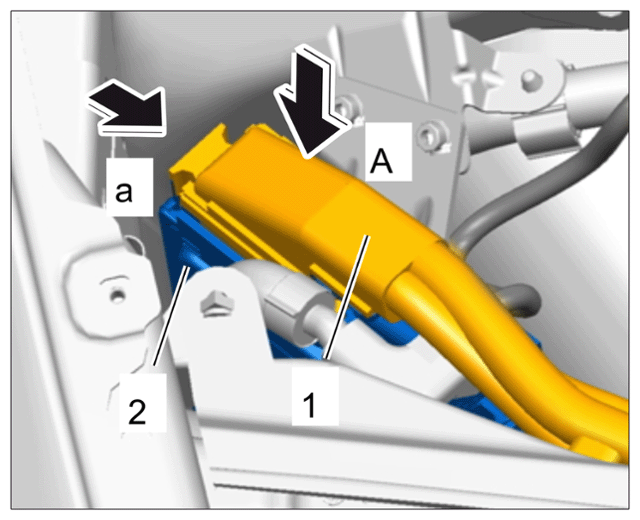

- Plug in electric plug connection -1-
on the engine control unit -2- (-A-)
and lock it -a-
.
Plug connection for engine control unit
- Fit air cleaner housing cover and filter element.

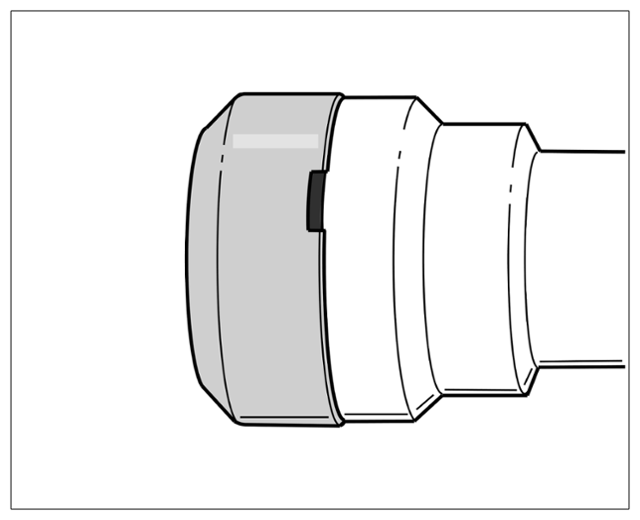

- Push the air line on the air cleaner cover.
Air line on air cleaner cover
