Installing Motor For Sliding Roof

Carefully position the motor in installation position so that the bores for screwing the motor to the front part of the frame are aligned.
Information

Do not continue to turn the motor after inserting the pinion into the drive cables because if you do, the control bolts will move closer together.
Press the motor into position.
Tighten three fastening screws -3- on the sunroof motor -1- to → Tightening Torque: 3 Nm (2 ft. lb.) .

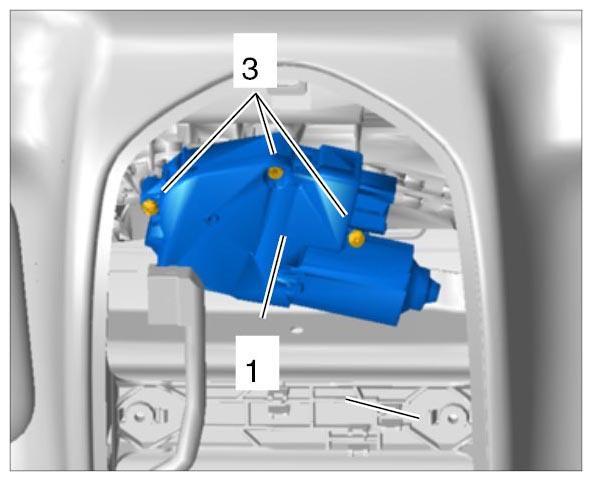

Fig 1: Identifying Sunroof Motor And Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect plug connection for sunroof motor -2- .

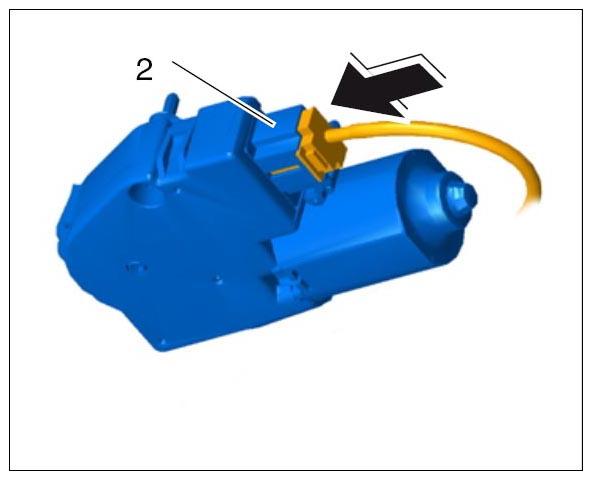

Fig 2: Connecting Plug Connection To Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
