Subsequent Work

Information

• When replacing the brake discs and/or brake shoes, it is necessary to grind down the brake shoes for the electronic parking brake (EPB).
• Grinding down applies only to grey cast-iron brakes with one-piece brake discs.
• Grinding of grey cast-iron brakes on the Cayman GT4 is not permitted because compound brake discs with aluminium brake disc hubs are installed.
• Grinding of PCCB brake discs/brake shoes is not permitted.

1. Adjust and calibrate the parking-brake shoes.

   > 468316 ADJUSTING AND CALIBRATING PARKING-BRAKE SHOES

   Grind down the parking-brake shoes during adjustment and calibration if necessary.

   > 468350 GRINDING DOWN PARKING-BRAKE SHOES

2. Fit brake pads by pressing the brake pedal several times.
3. Check brake fluid level and correct it if necessary.

   The brake fluid level must be between the MIN and MAX markings. > Min/Max markings for brake fluid

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

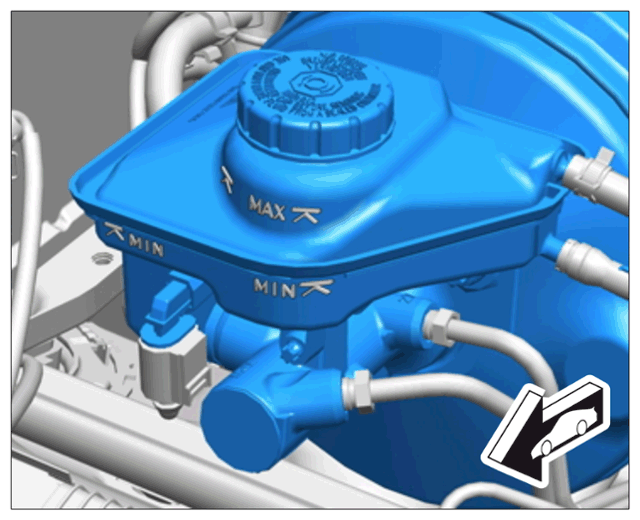

   Min/Max markings for brake fluid
