Subsequent Work
- Fit brake pads by pressing the brake pedal several times.
- Check brake fluid level and correct it if necessary.
The brake fluid level must be between the MIN and MAX markings. > Mm/Max markings for brake fluid

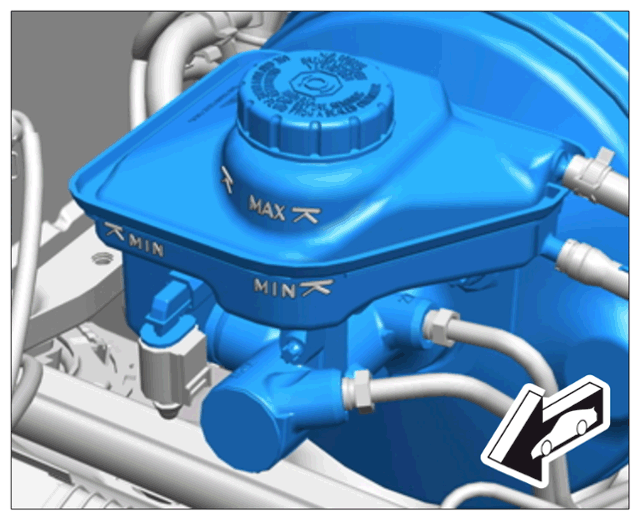

Min/Max markings for brake fluid
- Install wheel.
> 440519 Removing and installing wheel
For vehicles with PCCB: Use assembly aids (two assembly pins) -1- .

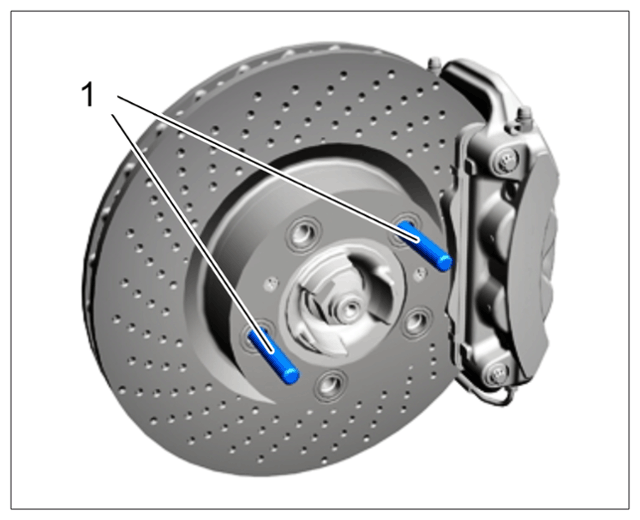

Wheel assembly pins (shown as an example)
