Removing Cover For Front Backrest

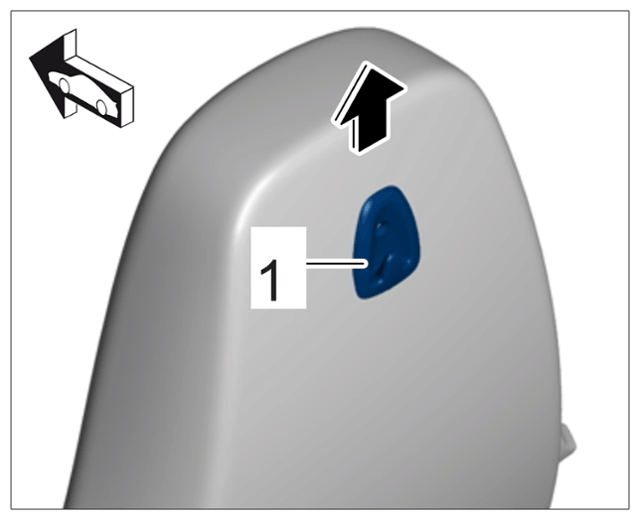

1. Slide clothes hook -1-  up and remove it -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing clothes hook

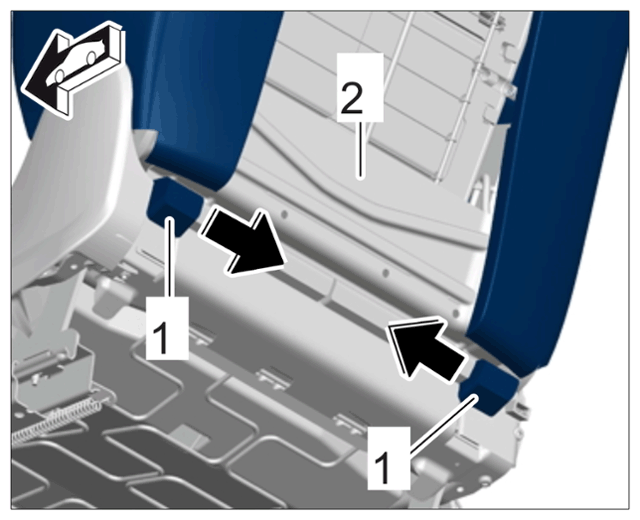

2. Slide backrest cover -1-  on the backrest shell -2-  at the bottom left and right into the middle (-arrows-  ) and detach it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Detaching backrest cover at the bottom

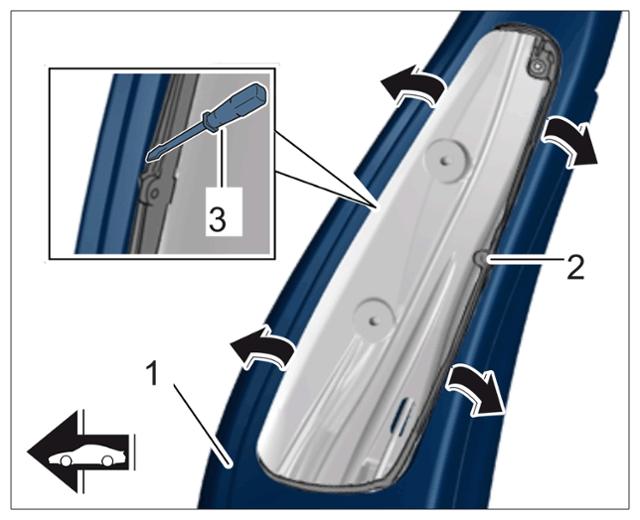

3. Press cover piping -1-  out of the backrest frame all the way around using a plastic wedge -3-  at the clips -2-  (-arrows-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Loosening cover piping

4. Remove front side airbag.

   > 696319 REMOVING AND INSTALLING FRONT SIDE AIRBAG

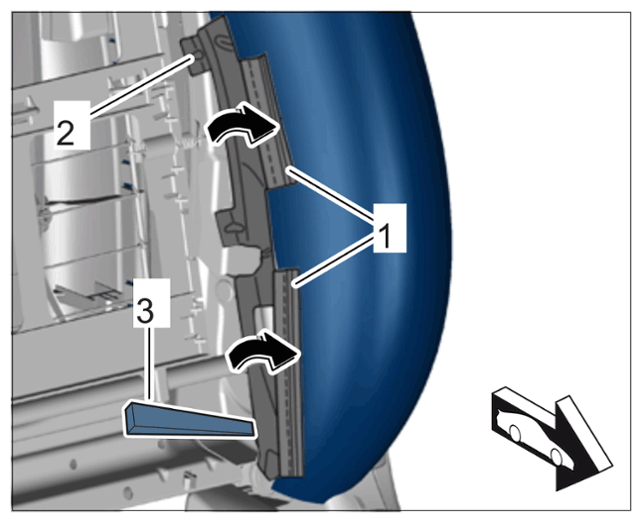

5. Loosen backrest cover -1-  slightly at the side airbag frame -2-  using a plastic wedge -3-  and pull it out by hand out the way around.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Detaching backrest cover on side airbag frame

   Information

   Replace collar if the locking lugs break off during removal. The release lever can be re-used.

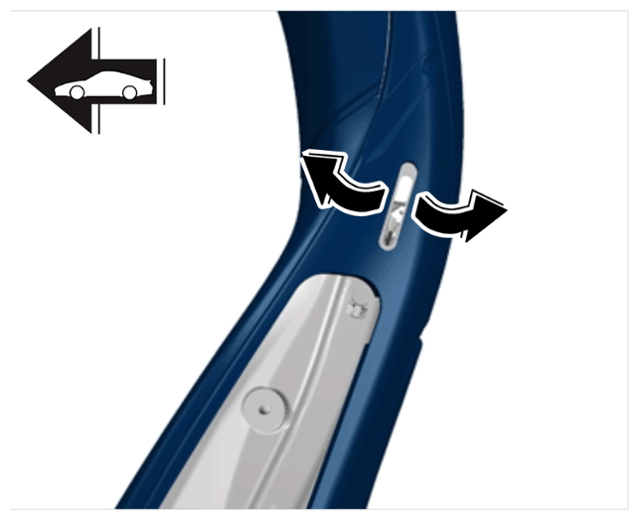

6. Loosen backrest cover at the backrest adjustment control button frame at the left and right -arrows-  and pull it out.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Detaching backrest cover on backrest adjustment frame

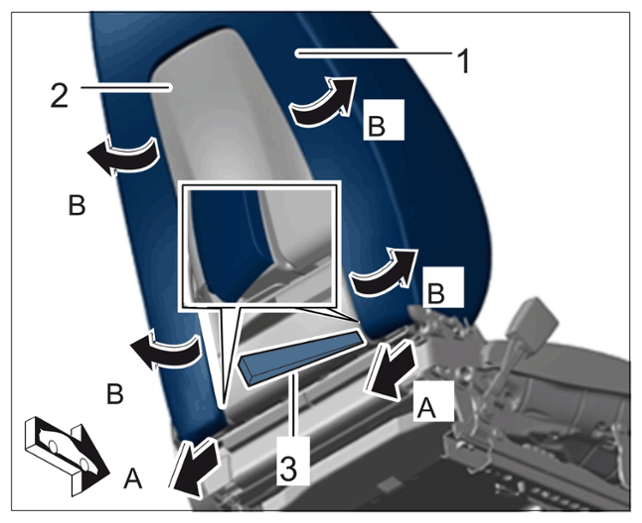

7. Press out backrest cover -1-  at the cushion carrier -2-  at the left and right using a plastic wedge -3-  at the bottom -arrow A-  .
8. Pull backrest cover -1-  out of the rear cushion carrier -2-  by hand all the way around -arrows B-.  To do this, carefully lever out the piping at the bottom connection using a plastic wedge -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Detaching backrest cover at the cushion carrier

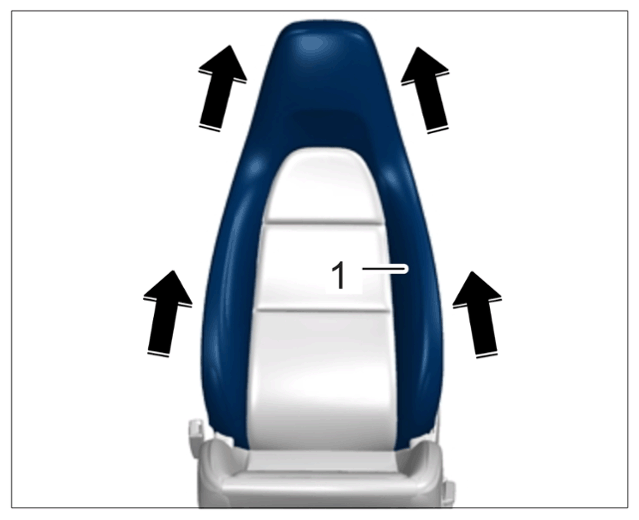

9. Remove backrest cover -1-  (- arrows-).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing backrest cover
