Installing Cover For Front Backrest

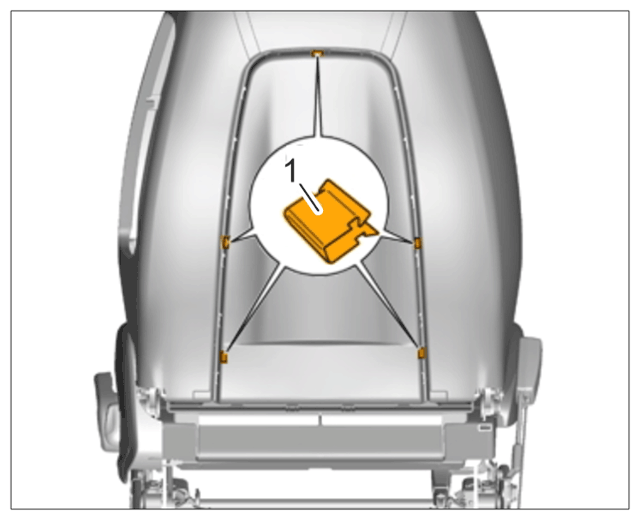

1. Check clamps and clips -1-  and replace them if necessary.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Checking clamps and clips

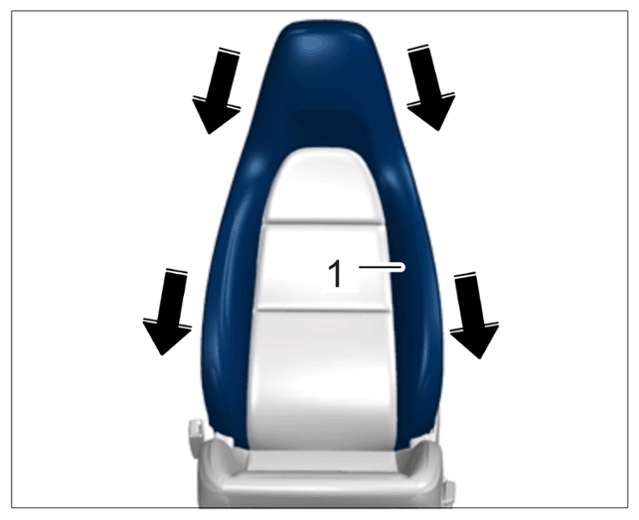

2. Pull backrest cover -1-  over the seat backrest -arrows-  and align with the contour of the padding.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing backrest cover

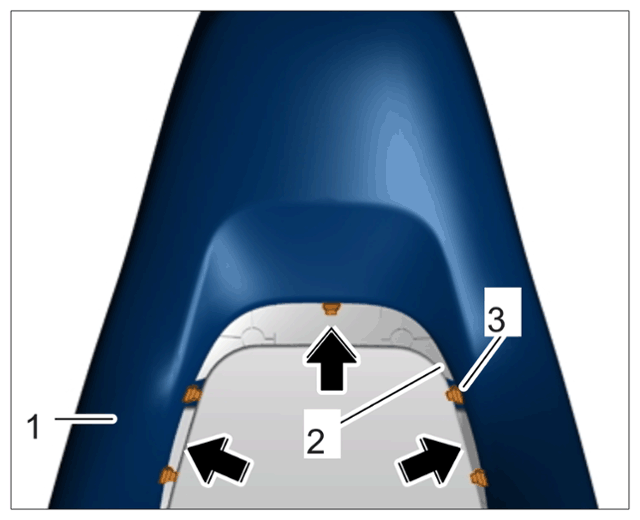

3. Press plastic strip -2-  on the backrest cover -1-  into the clips -3-  (-arrows-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Securing backrest cover

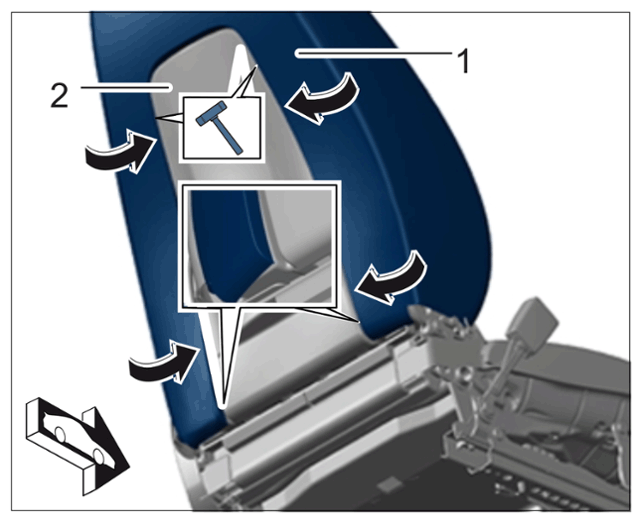

4. Press backrest cover -1-  into the cushion carrier -2-  from the rear -arrows-  and tap gently into place (plastic hammer).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Securing backrest cover on cushion carrier

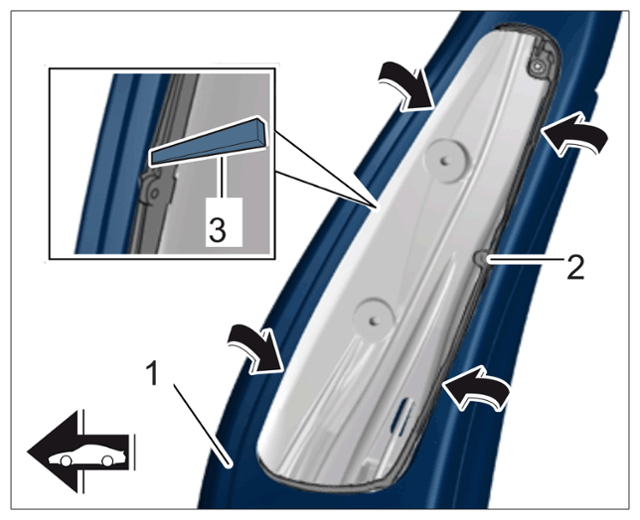

5. Press backrest cover -1-  into the side airbag frame -2-  using a plastic wedge -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Securing backrest cover on side airbag frame

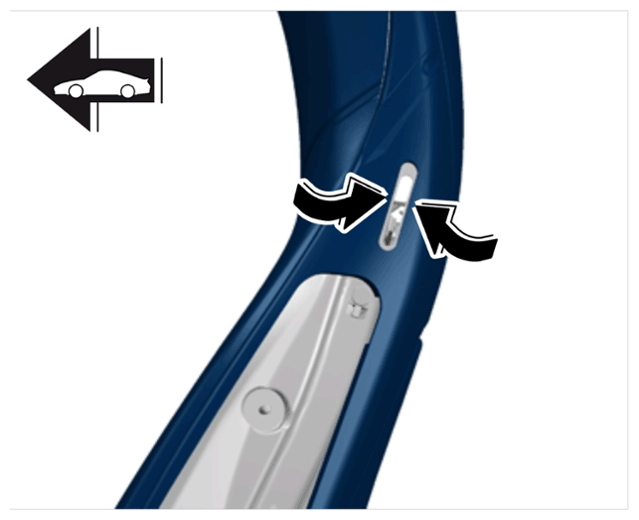

6. Engage backrest cover at the backrest adjustment control button -arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Securing backrest cover on backrest adjustment frame

7. Install front side airbag.

   > 696319 REMOVING AND INSTALLING FRONT SIDE AIRBAG

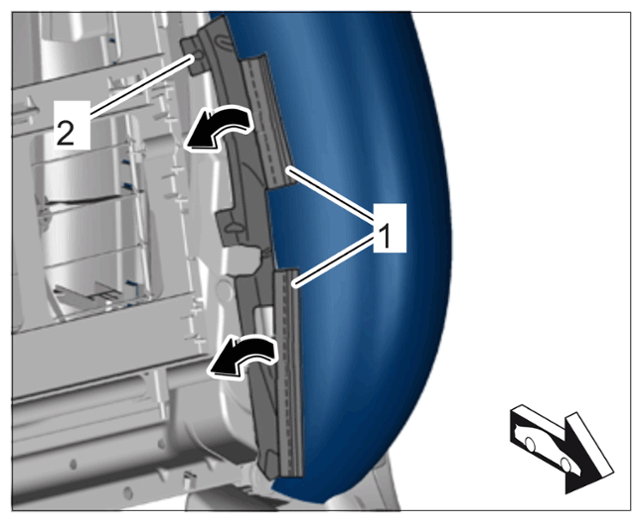

8. Clip cover piping -1-  at the left and right in the locking lugs -2-  on the backrest frame.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening cover piping

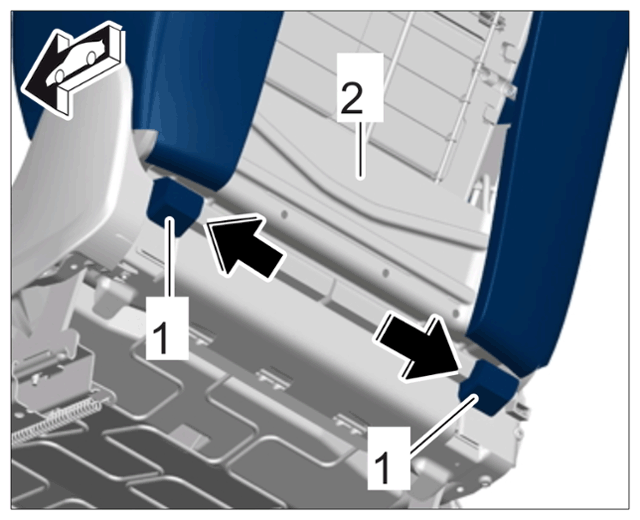

9. Slide backrest cover -1-  on the cushion carrier -2-  at the bottom left and right, starting at the middle and moving to each side -arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Securing backrest cover on bottom cushion carrier

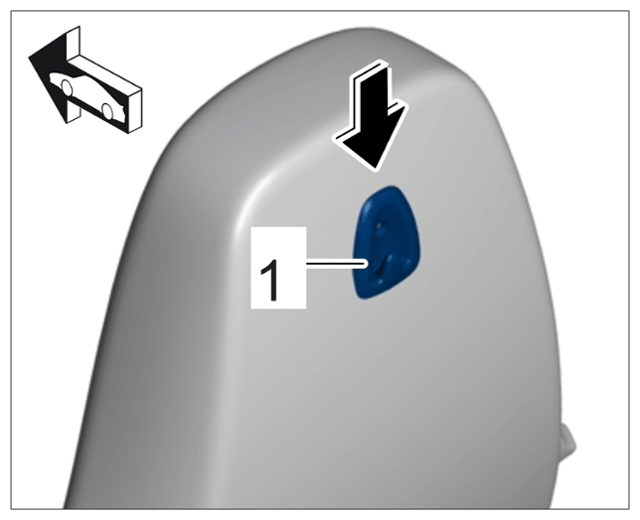

10. Fit clothes hook -1-  above the cut-out and press it down until it locks with an audible click.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing clothes hook
