Removing Padding For Front Backrest

Information

Steps 1 to 4:

Only for vehicles with heated seats.

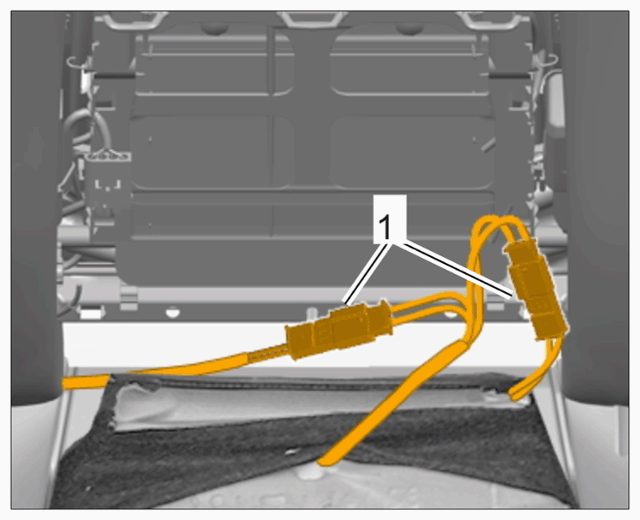

1. Disconnect electric plug connections -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disconnect the electric plug connections

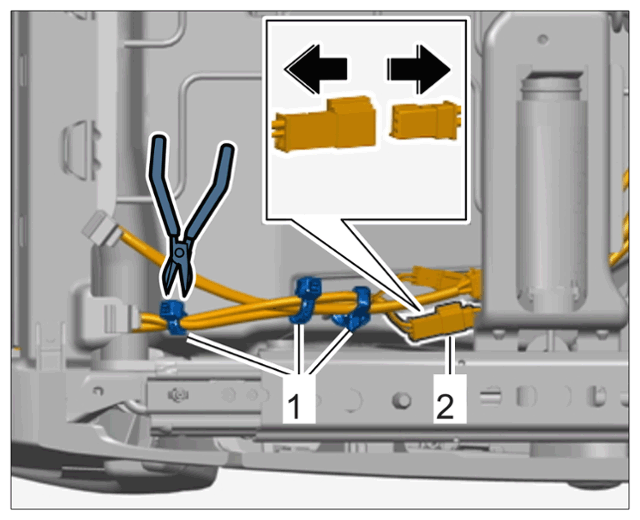

2. Cut tie-wrap -1-  .
3. Disconnect electric plug connection -2-  and loosen electric wire harness.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disconnecting electric wire harness on seat frame

   Information

   Do not trap or damage the wire harness when pulling it through.

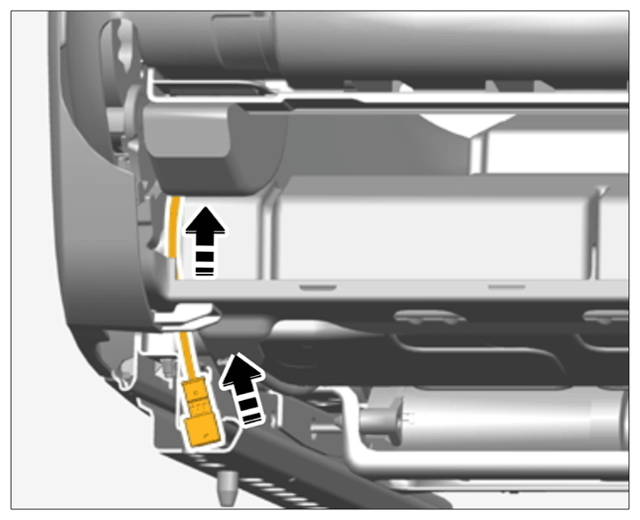

4. Guide out electric wire harness -arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Guiding out electric wire harness

   Information

   Padding is secured with adhesive - carefully loosen padding along the bonding points during removal.

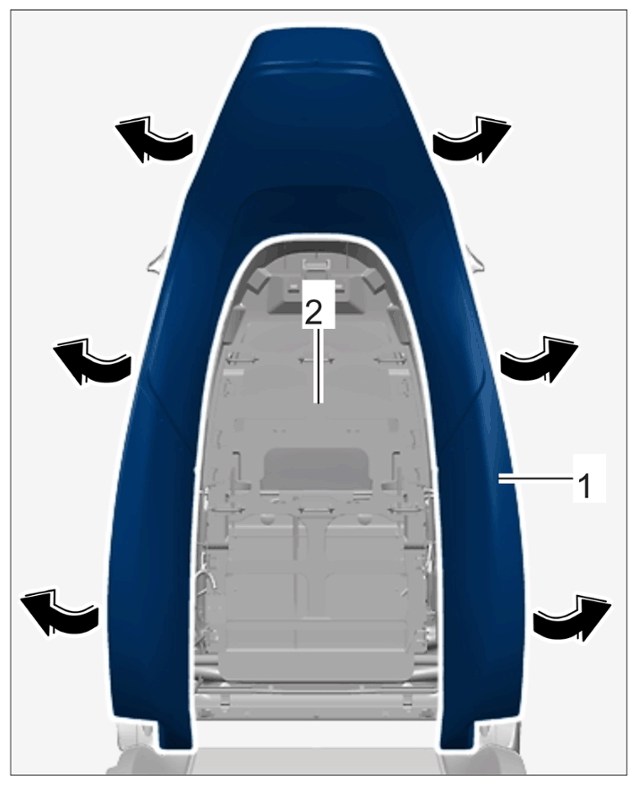

5. Carefully detach front backrest padding -1-  from the cushion carrier -2-  by hand and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing padding for front backrest

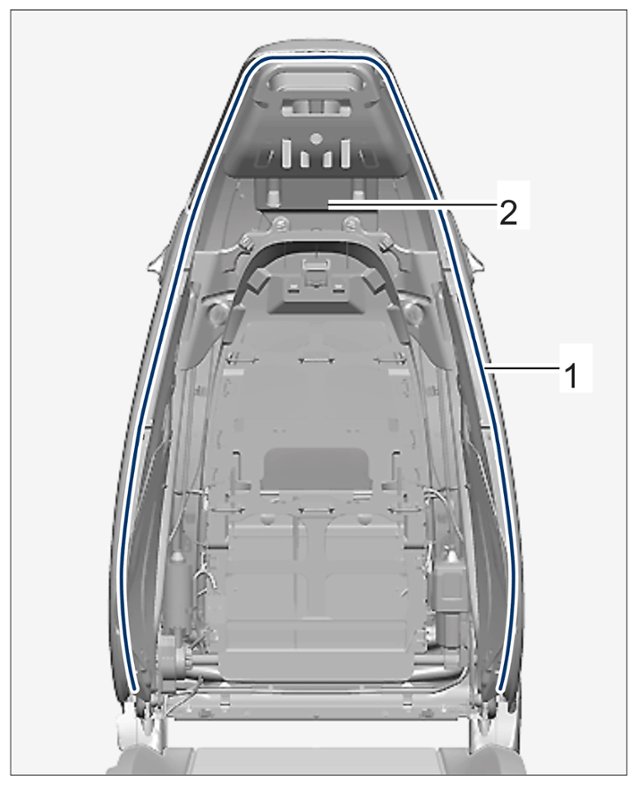

6. Remove residual adhesive -1-  and clean sealing surface of backrest frame -2-  with cleaning solution.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing residual adhesive
