Installing Padding For Front Backrest

Information

Sealing surface of backrest frame must be clean and free of grease.

Information

Steps 4 to 7:

Only for vehicles with heated seats.

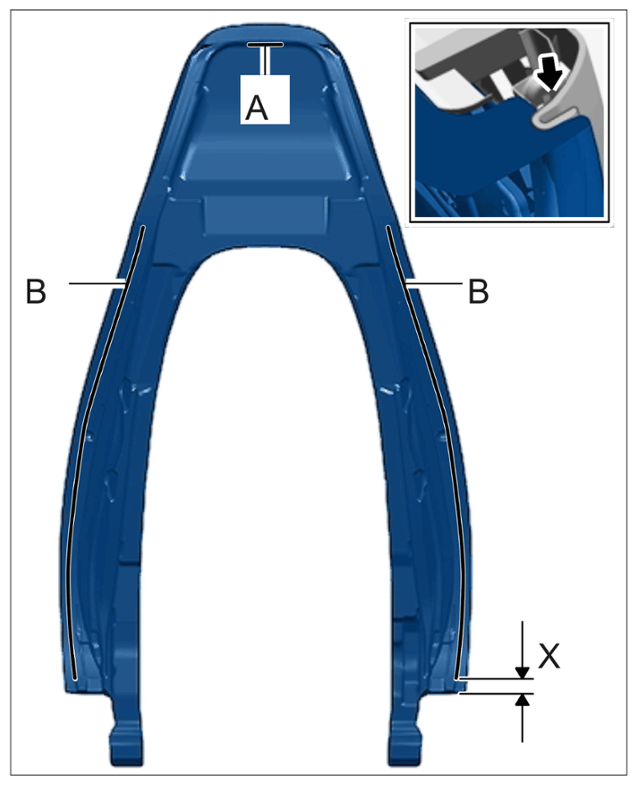

1. Apply adhesive to the middle of the cushion carrier -range A and B-  and to the edge -arrow-,  but not in the area marked -area X-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Applying adhesive

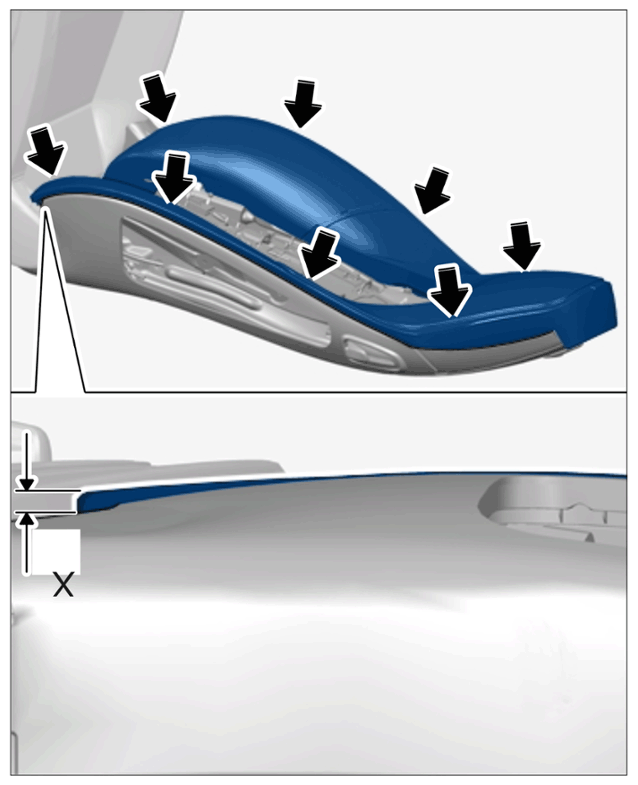

2. Fit front backrest padding on the cushion carrier and press it on -arrows-  .
3. Align front backrest padding so that the top is flush with the rear view of the seat and the bottom is sticking out slightly over the cushion carrier -X-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing padding for front backrest

   Information

   Do not trap or damage the wire harness when pulling it through.

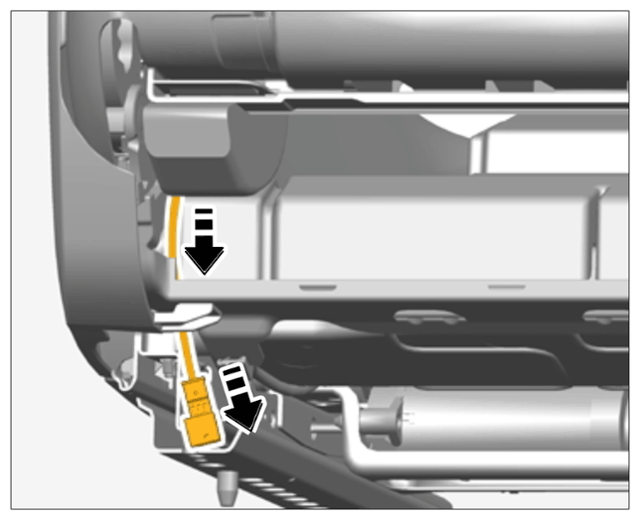

4. Guide in electric wire harness -arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Guiding in electric wire harness

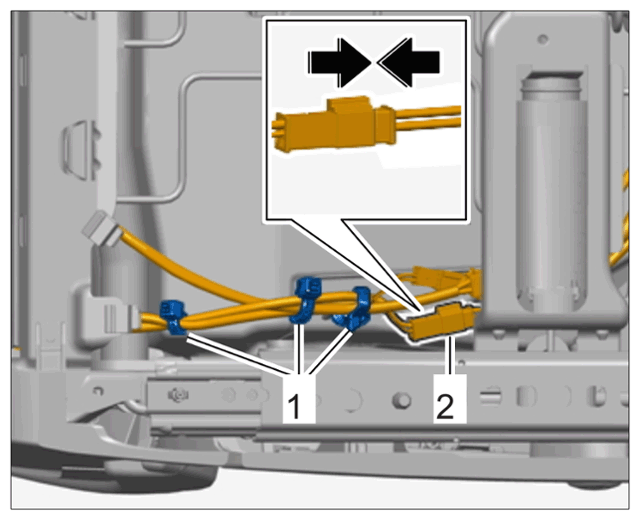

5. Connect electric plug connection -2-  .
6. Position electric wire harness and secure with new tie-wraps -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Securing electric wire harness on seat frame

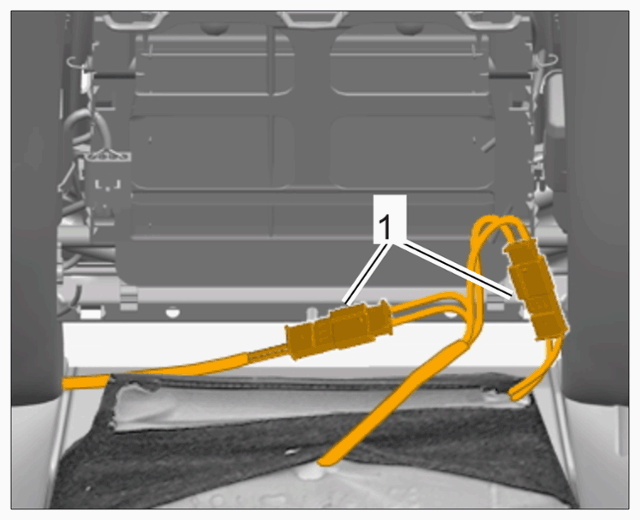

7. Connect electric plug connections -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connecting electric plug connections
