Installing Padding For Front Seat

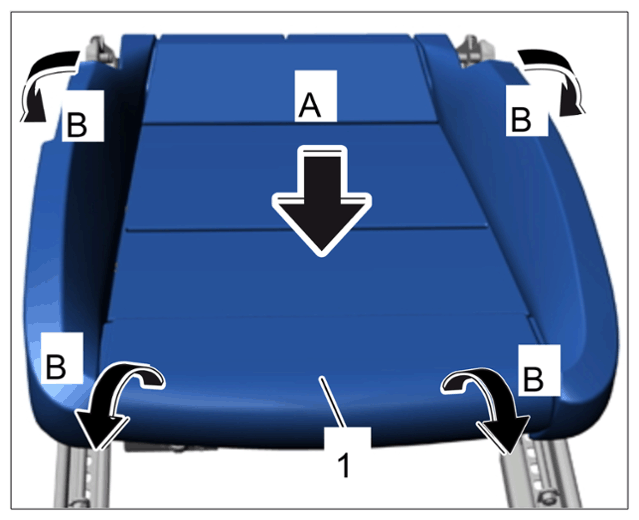

1. Place padding -1-  on seat shell -arrow A-  and align it -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Aligning padding

2. Affix front seat padding to seat frame.

   Information

   The sealing surface of the seat frame must be clean and free of grease.

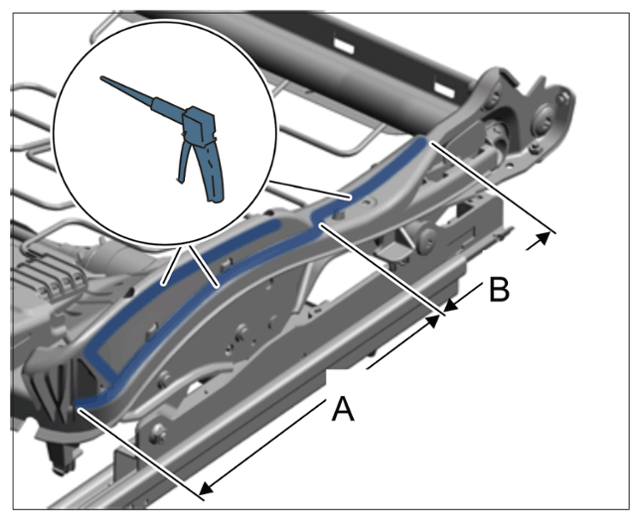

   1. 2.1 Apply adhesive to the marked area -A-  of the seat frame.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Applying adhesive

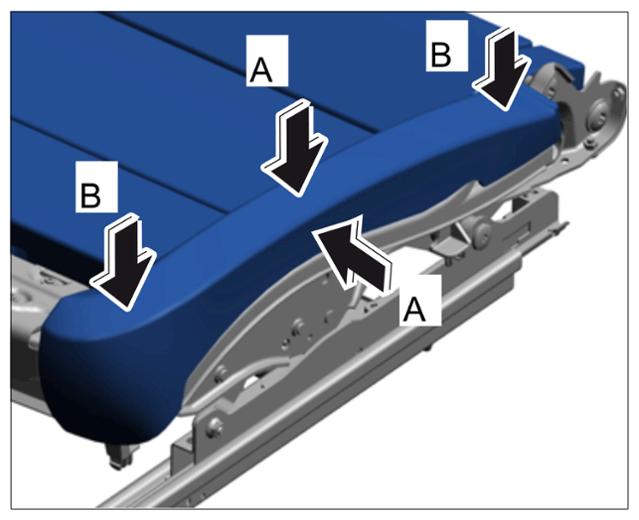

   2. 2.2 Press front seat padding on firmly in area -A-  (-arrows A-  ).
   3. 2.3 Lift front seat padding in area -B-  and apply adhesive to the marked area -B-  .
   4. 2.4 Press front seat padding on firmly in area -B-  (-arrows B-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing padding

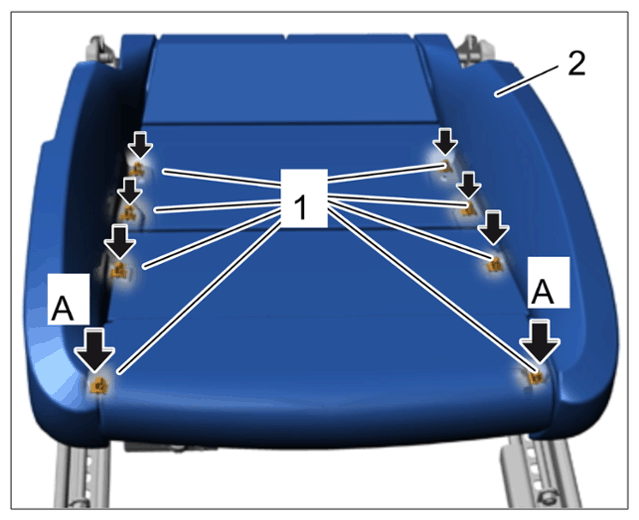

3. Clip in clips -1-  on the underside of the front seat padding -2-  (-arrows A-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clipping in clips

   Information

   Do not trap or damage the wire harness when pulling it through.

4. Only for vehicles with heated seats (I-no. 342):

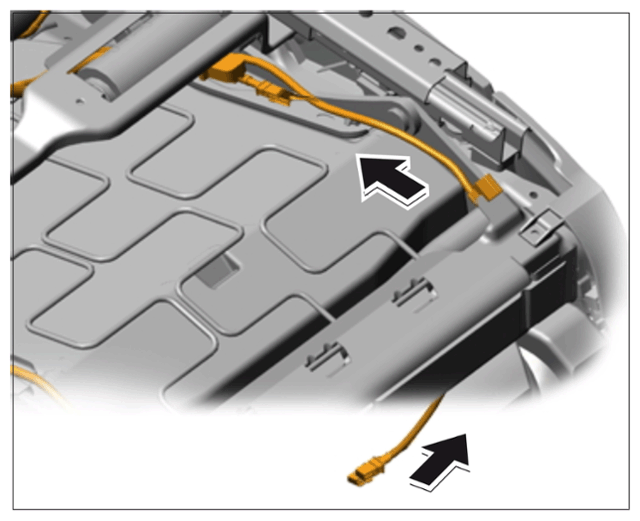

   Pull wire harness through the seat frame -arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pulling wire harness through

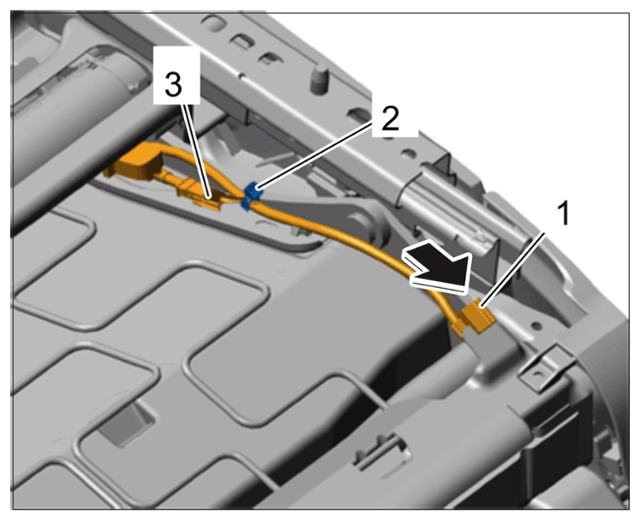

5. Plug in electric plug connection -3-  for seat heating.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing wire harness
