Installing Main Light Switch

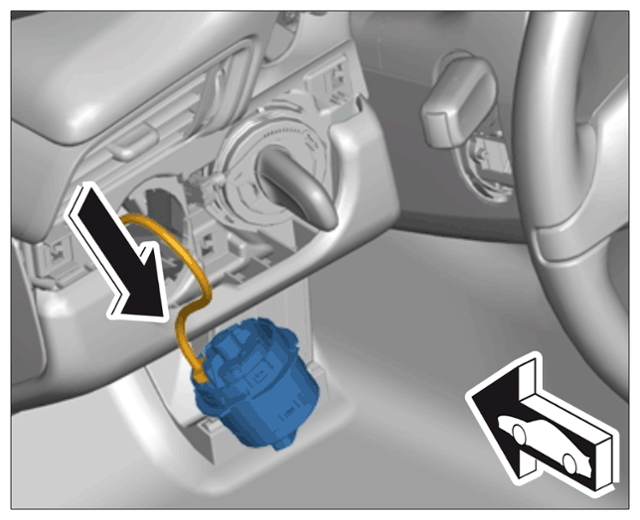

  1. Connect electric plug connection -arrow-  .
    G14956171Courtesy of PORSCHE CARS NORTH AMERICA, INC.

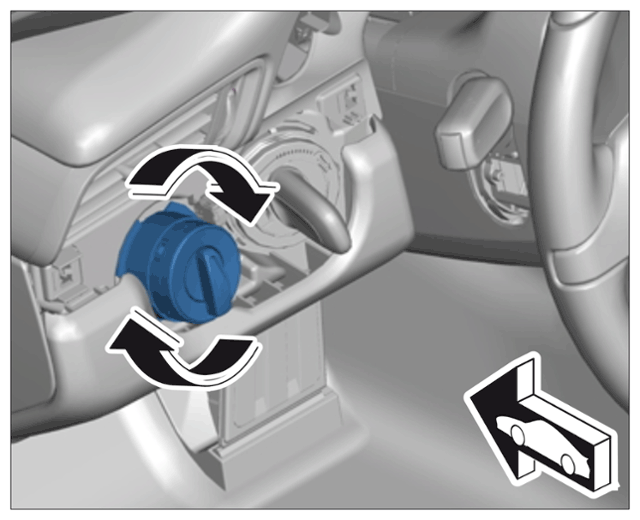

  2. Insert main headlight switch into the cut-out and lock it by turning it -arrows-  .
    G14956172Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Check function.
