Home >> Porsche >> 2017 >> 718 Boxster Base, Automatic DCT Trans >> Repair and Diagnosis >> Accessories & Equipment >> Seats >> 74 Seat Cushions, Seat Covers -- 982 - BOXSTER/CAYMAN >> WM, 742019 - Removing And Installing Cover For Front Middle Backrest (Air-Conditioned Comfort Seat) >> Technical Values

Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screw securing backrest frame to seat frame   Tightening torque 34 Nm (25 ftlb.) 4 Nm (3 ftlb.)

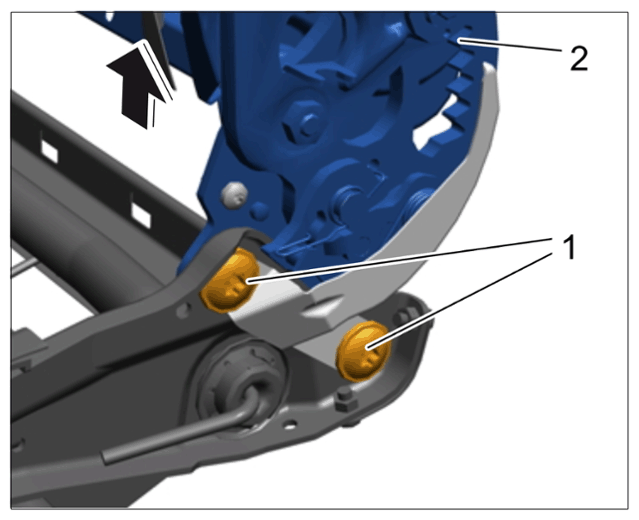

G14955615Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing backrest frame
