Removing Rear Fog Light

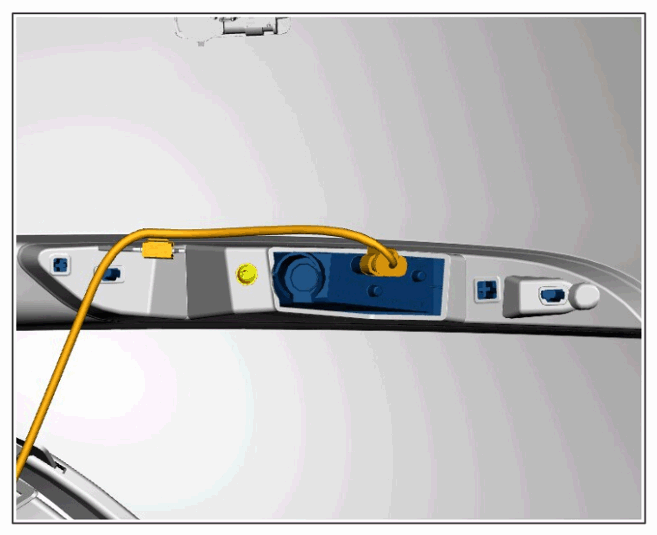

  1. Release electric plug connection for rear fog light and pull it off.
    G14956220Courtesy of PORSCHE CARS NORTH AMERICA, INC.

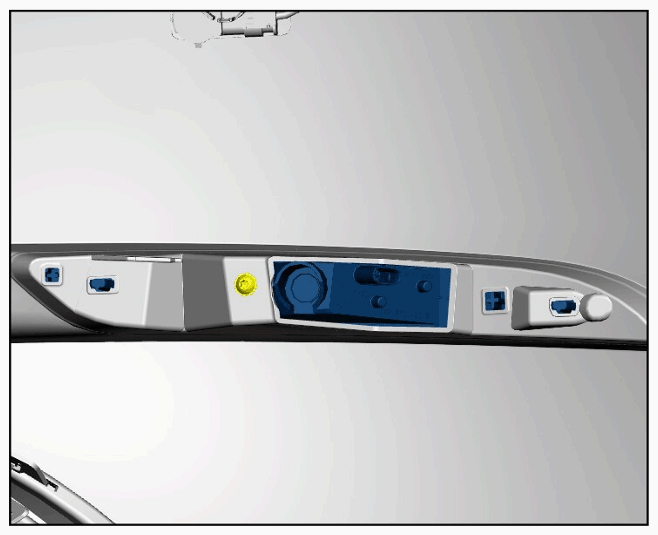

  2. Undo screw on rear fog light.
    G14956221Courtesy of PORSCHE CARS NORTH AMERICA, INC.

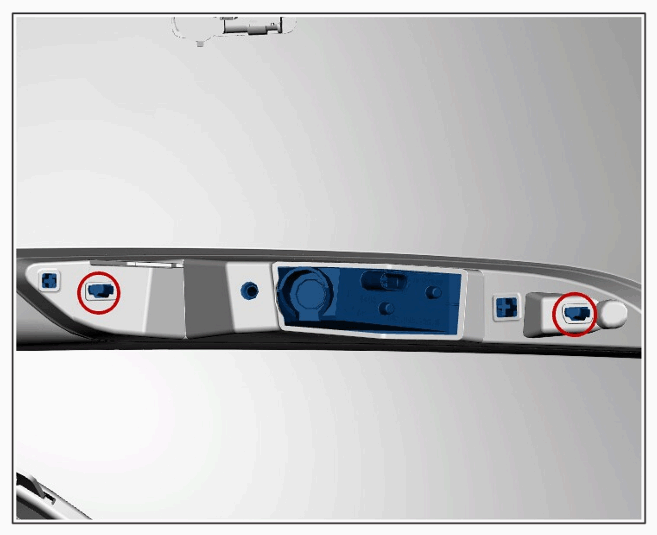

  3. Unclip rear fog light and pull it backwards out of the rear bumper.
G14956222Courtesy of PORSCHE CARS NORTH AMERICA, INC.
