Removing Tail Light

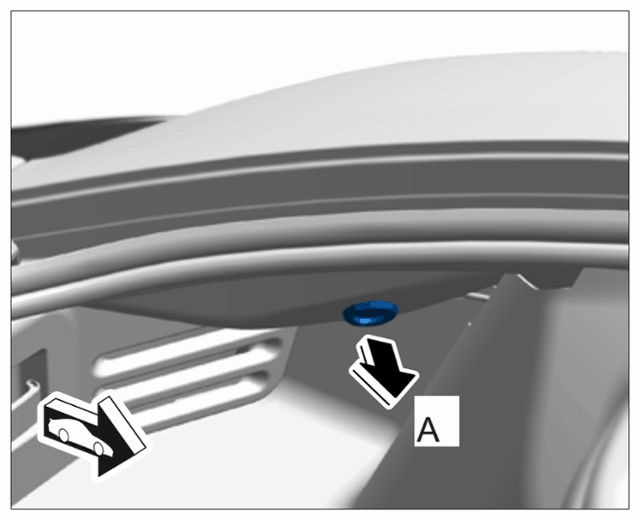

  1. Remove rubber stopper in the rear luggage compartment -arrow "A"-  .
    G14956190Courtesy of PORSCHE CARS NORTH AMERICA, INC.

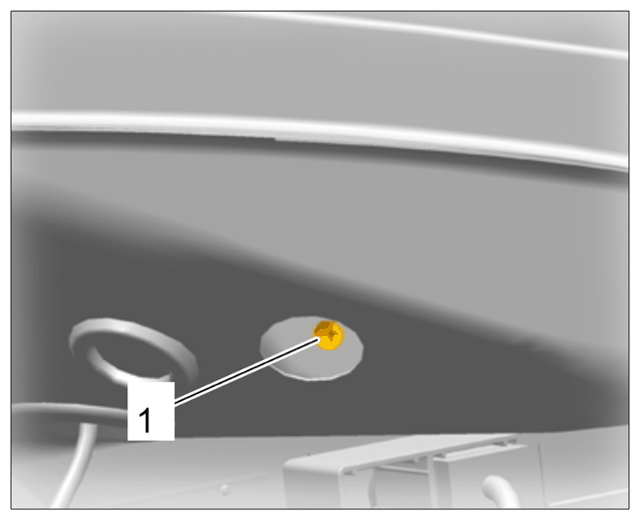

  2. Unscrew and remove fastening screw -1-  for the tail light in the rear luggage compartment.
    G14956191Courtesy of PORSCHE CARS NORTH AMERICA, INC.

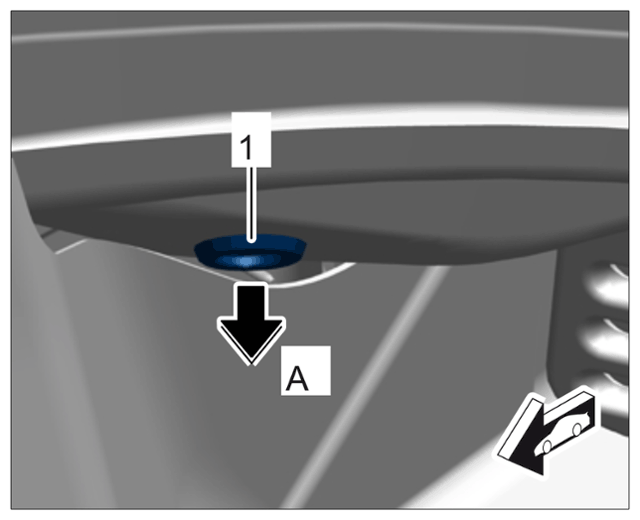

  3. Remove rubber stopper -1-  in the wheel housing -arrow "A"-  .
    G14956192Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Loosen tail light.

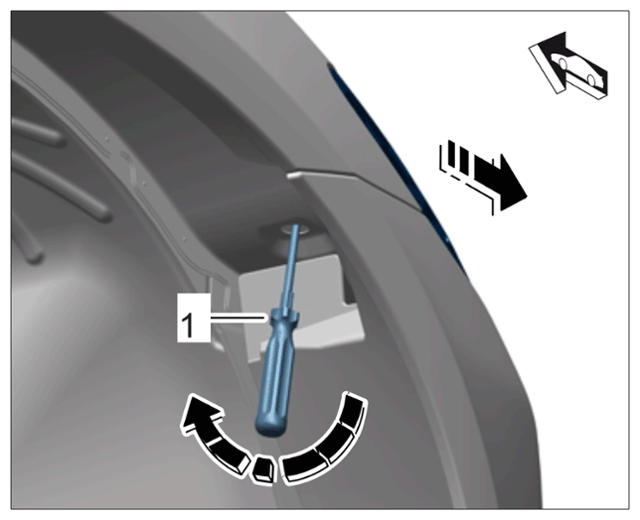

    1. 4.1 Insert a screwdriver -1-  through the opening and position it on the removal surface of the tail light.
      G14956193Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 4.2 Press the tail light out of the ball socket by levering -arrow-  the screwdriver -1-  .

      Secure the tail light from outside to prevent it from falling down.

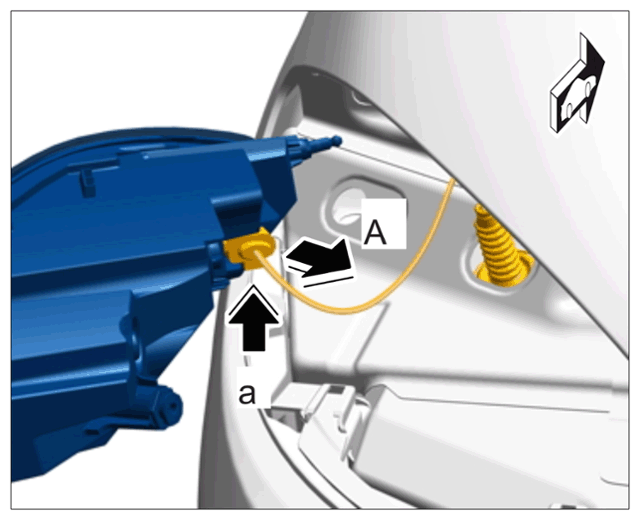

  5. Release electric plug connection -arrow "a"-  and disconnect it -arrow "A"-  .
G14956194Courtesy of PORSCHE CARS NORTH AMERICA, INC.
