Removing DME Control Unit

NOTIFICATION

Voltage peaks

• Rsk of Carnage to electrical load or to the control unit
  • Remove the ignition key and switch off load before disconnecting or removing load.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

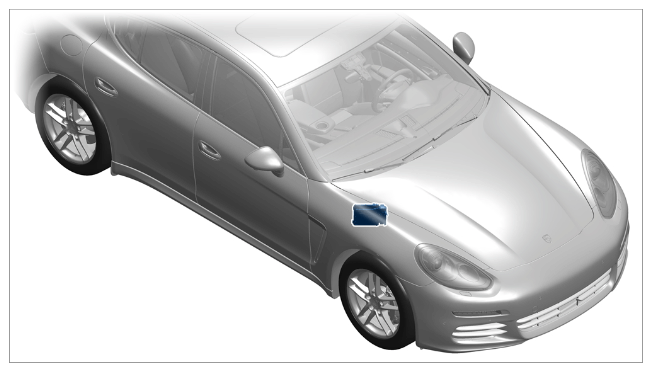

Installation position

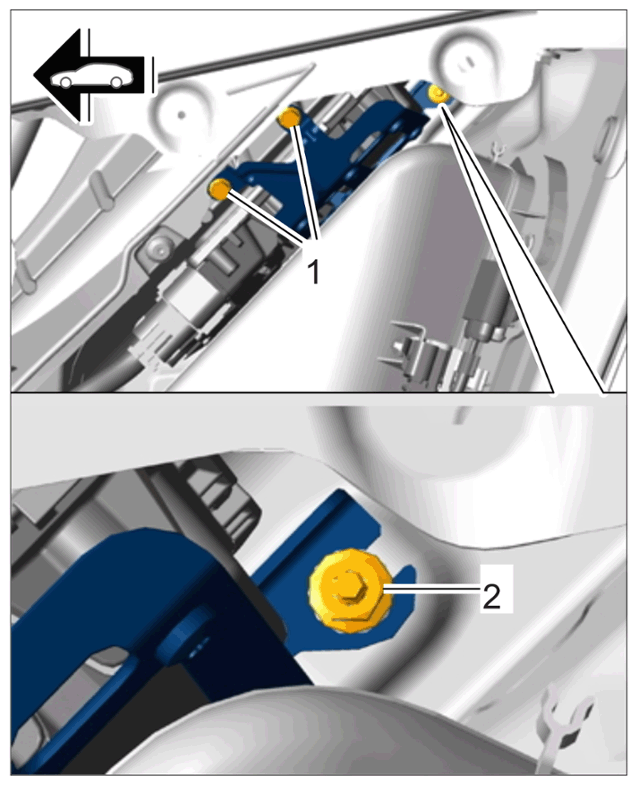

1. Unscrew the two fastening screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing control unit holder

2. Looser the fastening nut -2-  .
3. Pull the holder forward in direction of travel and lift it up and out.

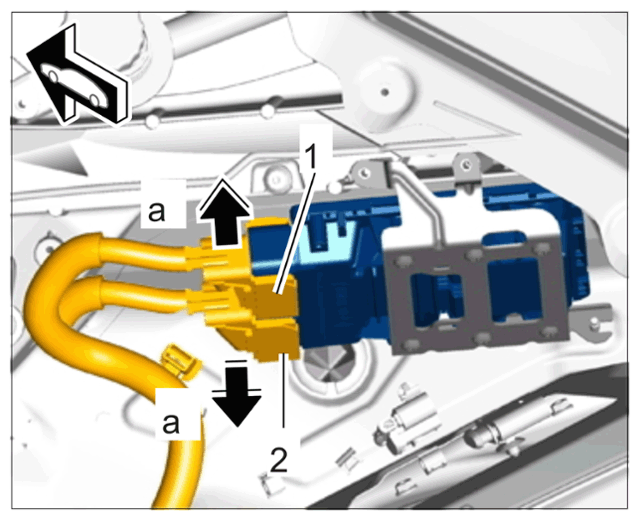

4. Release the latch on both connectors -1, 2-  (-a-  ) and remove the two connectors from the DME control unit.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Releasing connector

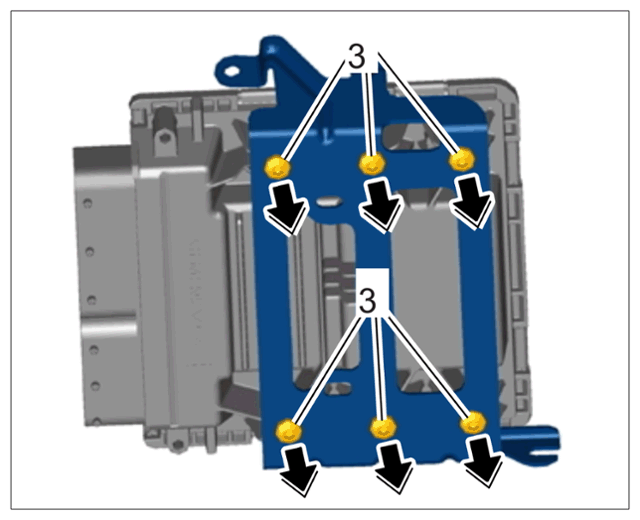

5. Unscrew and remove the six fastening screws -3- on the holder and remove the holder from the DME control unit.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing holder
