Installing DME Control Unit

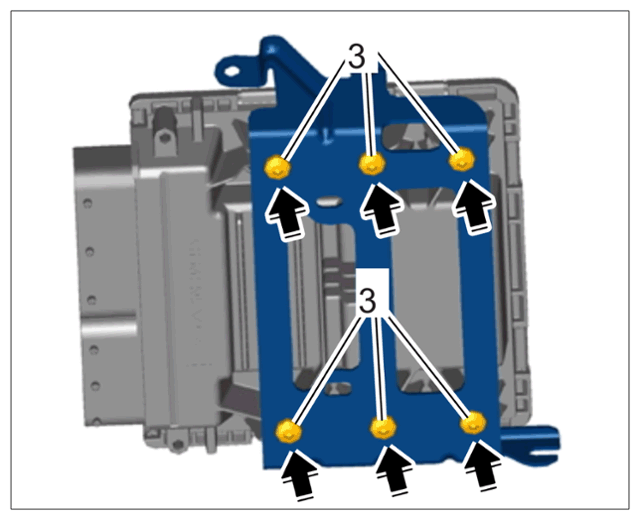

Position the holder on the DME control unit and secure it with the fastening screws -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing control unit holder

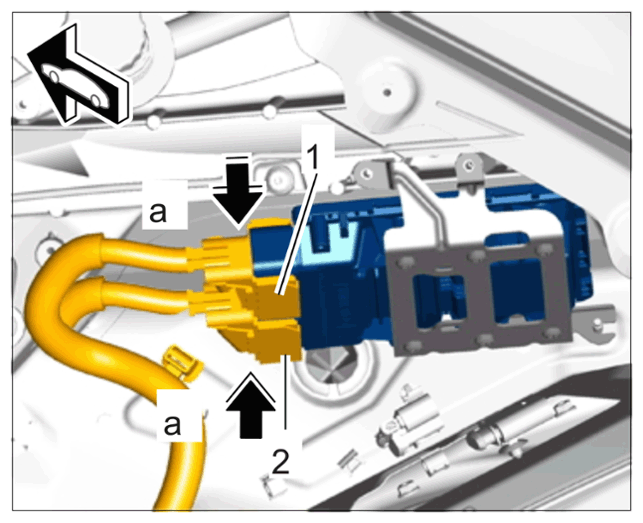

Connect both connectors -1, -2- on the DME control unit and close the latch -a- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connecting connectors
Secure DME control unit and holder.

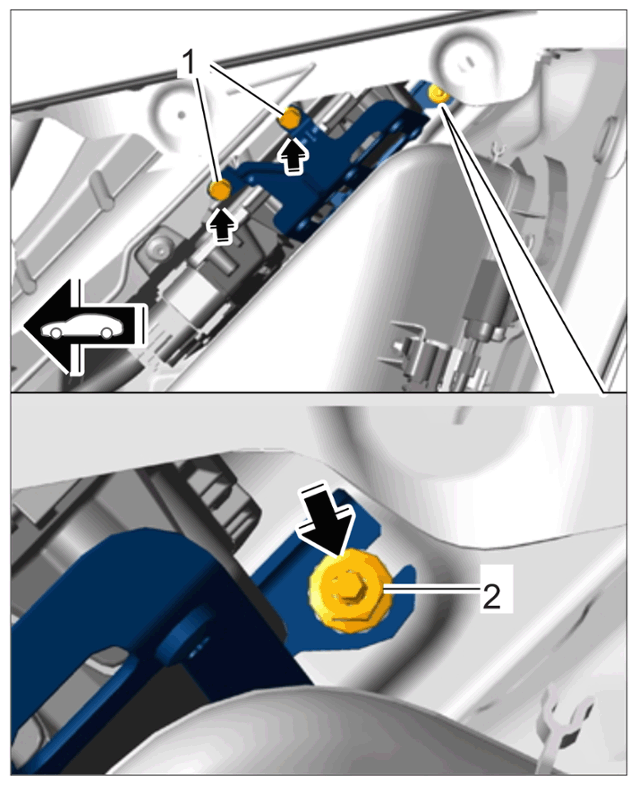

Position DME control unit and holder and secure with the fastening nut -2- and the two fastening screws -1- > Tightening torque 9.7 Nm (7.5 ftlb.) > Tightening torque 9.7 (7 5 ftlb.) Nm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Securing DME control unit and holder
