Component Overview

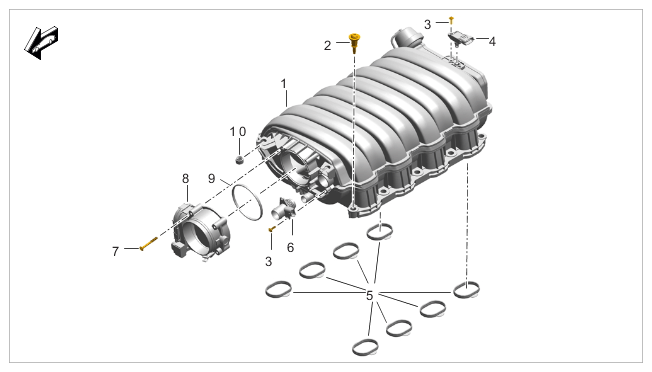

Fig 1: Intake Module On Naturally Aspirated Engine Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Intake module on naturally aspirated engine

1	Intake module
2	Decoupling module (fastening part); observe specified tightening sequence
3	Screw, 5 x 16
4	Pressure sensor
5	Intake module seal; check that seal is aligned and fitted correctly!
6	Heat socket
7	Screw, 6 x 50
8	Electronic accelerator
9	Seal
10	Ball socket

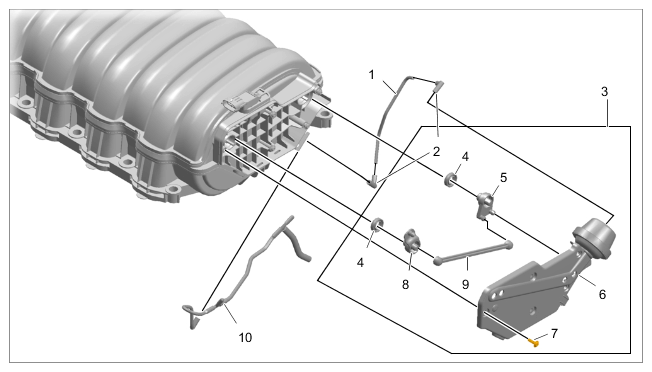

Fig 2: Variable Intake Manifold Actuator On Naturally Aspirated Engine Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Actuator for variable intake manifold on naturally aspirated engine

1	Pipe
2	Connecting piece
3	Variable intake manifold adjuster/adjusting unit
4	Lip seal
5	Connecting element
6	Vacuum unit with cover (actuator)
7	Screw, M5 x 16
8	Driver
9	Connecting link
10	Vacuum line

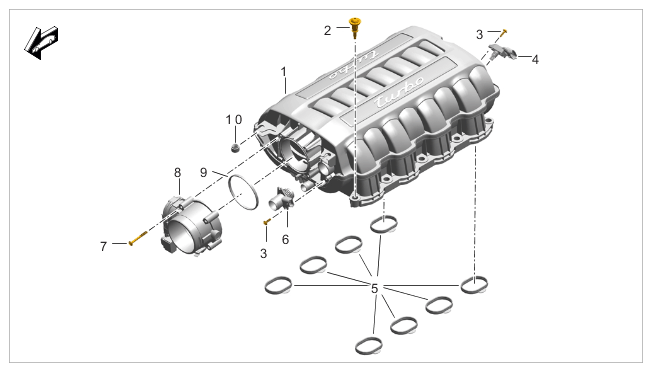

Fig 3: Intake Air Module On Turbo Engine Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Intakt air module on turbo engine

1	Intake module
2	Decoupling module (fastening part); observe specified tightening sequence
3	Screw, 5 x 16
4	Pressure sensor
5	Intake module seal; check that seal is aligned and fitted correctly
6	Heat socket
7	Screw, 6 x 50
8	Electronic accelerator
9	Seal
10	Ball socket
