Subsequent Work

  1. Remove tool setup.
  2. Fit the fuel line > >. To do this, fit the fuel supply line (low pressure) at the marking correctly. Counter at the centre piece. > Tightening torque 30 Nm (22 ftlb.)

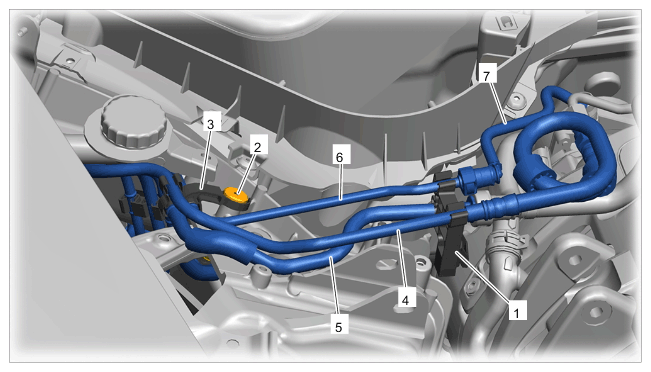

    G15198695Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Junction point for lines in engine compartment

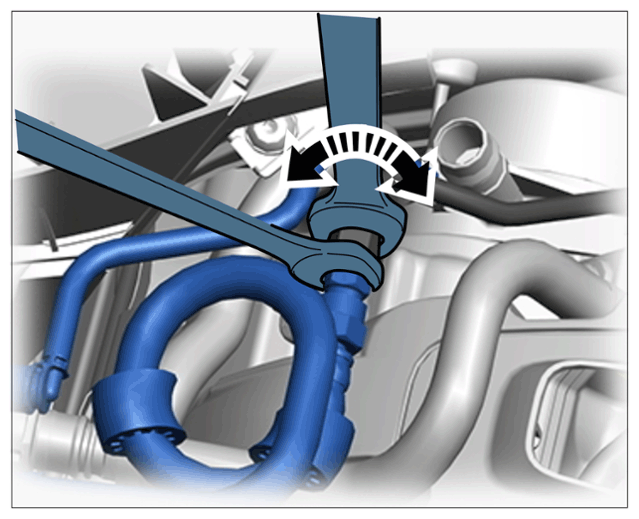

    G15198696Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fuel low-pressure line

  3. Fit fuses or connect battery.
  4. Bleed the fuel high-pressure system.
